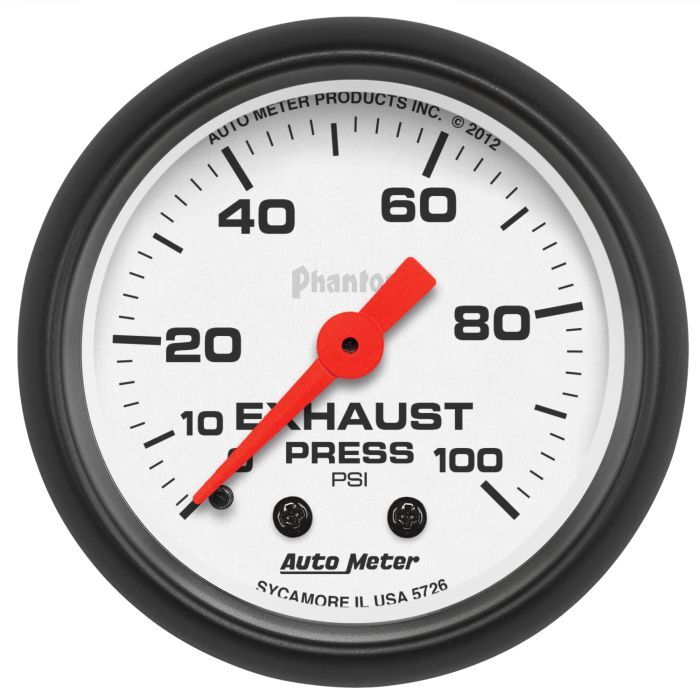

Autometer Gauge, Exhaust Press, 2 1/16", 100Psi, Mechanical, Phantom, Phantom
Part Number:AMT-5726
$198.61
or buy now, pay later with
Autometer Gauge, Exhaust Press, 2 1/16", 100Psi, Mechanical, Phantom, Phantom (SKU: AMT-5726)
One of the most requested line additions in AutoMeter history, this Mechanical Exhaust Pressure Gauge has been engineered to the highest standards of accuracy and durability. Precisely monitor your exhaust backpressure to maximize power and efficiency and ensure turbo longevity. Also ideal for cam tuning, a simple 1/8 NPT connection is all you need for installation. An install kit with 1/4 copper tubing is included and an optional particulate filter is also available for enhanced gauge lifespan. For operator safety, these gauges are not recommended for installation inside the cabin of a vehicle.
- Includes bulb and socket assembly with red and green bulb covers
- Includes 10 ft. Nylon tubing with 1/8" NPT compression fittings
- Includes 6ft. Copper tubing with 1/8" NPT compression fittings
- Includes 1/8" NPT to 1/4" NPT adapter/fitting
- Direct vehicle exhaust connection to instrument - Gauge must be mounted outside of vehicle!
- Includes gauge mounting hardware and installation instructions
SPECIFICATIONS |
|
| Series | PHANTOM |
| Product Type | Gauge Exhaust Press |
| Dial Color | White |
| Lens Style | Flat, Clear |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Size (Metric) | 52.4mm |
| Size (Standard) | 2-1/16" |
| Cup/Hole Size (Metric) | 52.4mm |
| Cup/Hole Size (Standard) | 2-1/16" |
| Outer Bezel Diameter | 2-1/4" |
| Lighting Type | Incandescent |
| Lighting Color | White Incandescent |
| Pointer Color | Fluorescent Red |
| Movement | Mechanical |
| Gauge Type | Exhaust Pressure |
| Range | 0-100 PSI |
| Includes (Replacement) Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing |
| Includes (Replacement) Tubing | 10 ft. nylon tubing - 6 ft. Copper Tube |
| Includes (Replacement) Bulb & Socket | 3220 |
| Includes (Replacement) Light Covers | Red 3214 & Green 3215 |
| Includes (Replacement) Mounting Hardware | 2230 |
| Instruction Manual Part Number | 2650-1700 |
