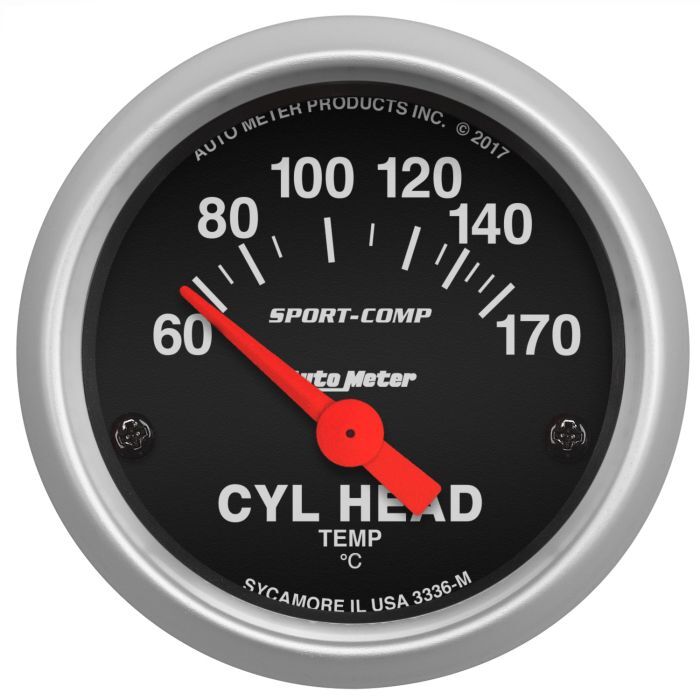

Autometer Gauge, Cylinder Head Temp, 2 1/16", 60-170ºc, Electric, Sport-Comp, Sport-Comp (SKU: AMT-3336-M)

In most overheating situations, the first engine component to suffer damage is your cylinder heads. Prevent damage to your engine and ensure maximum performance and reliability with this AutoMeter Electronic Cylinder Head Temperature Gauge. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender is included.

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

SPECIFICATIONS

Series SPORT-COMP
Product Type Gauge Cylinder Head Temp
Dial Color Black
Lens Style Flat, Clear
Bezel Color Brushed Aluminum
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Cylinder Head Temperature
Range 60-170 °C
Includes (Replacement) Sensor Unit 2259
Includes (Replacement) Adapter/Fitting 3/8" NPT and 1/2" NPT adapter fittings
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1079
