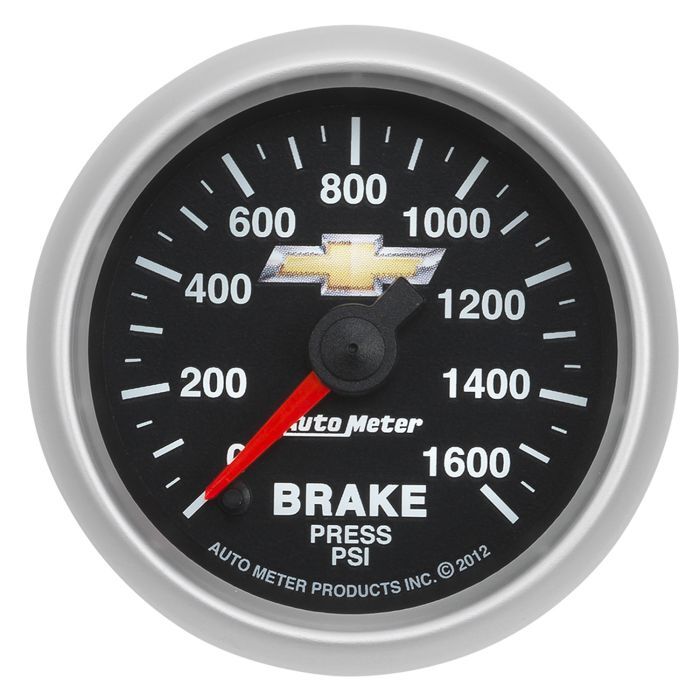

Autometer Gauge, Brake Press, 2 1/16", 1600Psi, Digital Stepper Motor, Chevy Gold Bowtie, Chevy Gold (SKU: AMT-880450)

High brake system pressures make this an environment that few gauges are up to the task of handling. AutoMeter’s Digital Stepper Motor Brake Pressure Gauge provides not only the accuracy you expect from a top of the line instrument, but the durability you need under even the most demanding conditions. Includes a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.

  • Features Hi-Def™ through-the-dial white LED lighting
  • Includes 8ft. Wiring Harness
  • Includes 1/8" NPT Sender.
  • Includes gauge mounting hardware and installation instructions
  • Full sweep precision digital stepper motor meter movement

SPECIFICATIONS

Series CHEVY GOLD BOWTIE
Product Type Gauge Brake Press
Dial Color Black
Lens Style Flat, Clear
Bezel Color Brushed Aluminum
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type LED
Lighting Color White
Pointer Color Fluorescent Red
Movement Electric, Digital Stepper Motor
Gauge Type Brake Pressure
Range 0-1600 PSI
Includes (Replacement) Sensor Unit 2246
Includes (Replacement) Wire Harness 5227
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1331
