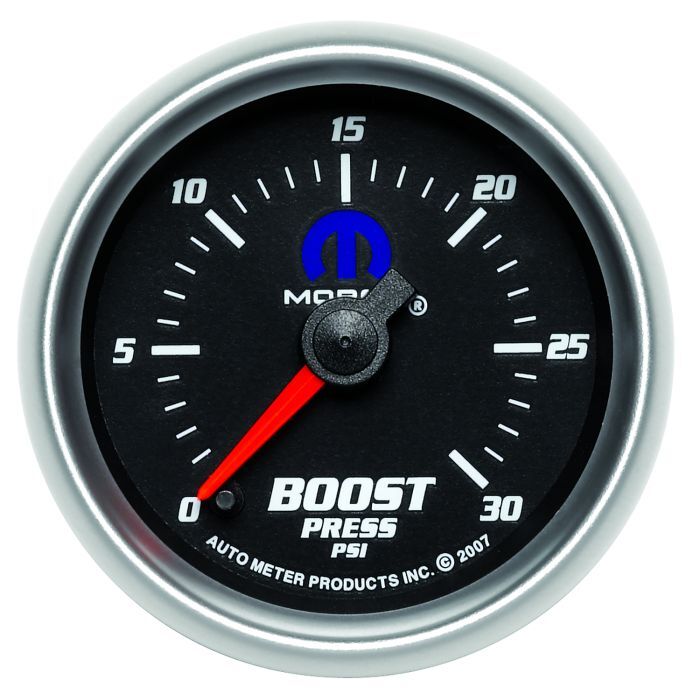

Autometer Gauge, Boost, 2 1/16", 30Psi, Digital Stepper Motor, Black, Mopar, Mopar (SKU: AMT-880020)

Forced induction applications require precise monitoring of the boost pressure being created by your turbo or supercharger to get the most power safely from your engine. AutoMeter’s Digital Stepper Motor Boost Gauge provides the most accurate reading available, unparalleled response time and smooth needle movement. Designed for diesel or extreme boost applications, these gauges include a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.

  • Modern LED through-the-dial lighting provides clear visibility during nighttime use
  • Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, mounting hardware, and detailed instructions for installation

SPECIFICATIONS

Series MOPAR
Product Type Gauge Boost
Dial Color Black
Lens Style Flat, Clear
Bezel Color Brushed Aluminum
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type LED
Lighting Color Blue
Pointer Color Fluorescent Red
Movement Electric, Digital Stepper Motor
Gauge Type Boost
Range 0-30 PSI
Includes (Replacement) Sensor Unit 2249
Includes (Replacement) Adapter/Fitting T - Fitting
Includes (Replacement) Wire Harness 5229
Includes (Replacement) Tubing 10 ft. nylon tubing
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1662
