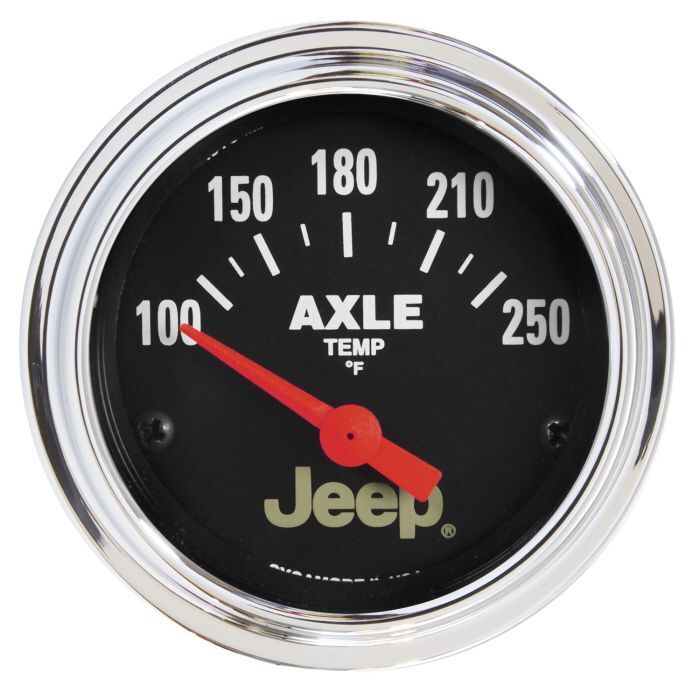

Autometer Gauge, Axle Temp, 2 1/16", 250ºf, Elec, Jeep, Jeep (SKU: AMT-880431)

When your vehicle leaves the pavement, the importance of axle temp can’t be understated. Make sure your vehicle will make it safely back to the pavement and ensure the long life of your differential with AutoMeter’s Short Sweep Electronic Axel Temp Gauge. Built with the same attention to quality and detail as every AutoMeter gauge, you can be assured of top notch accuracy and durability thanks to AutoMeter’s patented air core meter movement. A single wire 1/8” NPT temperature sender is included.

  • Highly polished chrome bezel
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

SPECIFICATIONS

Series JEEP
Product Type Gauge Differential Temp
Dial Color Black
Lens Style Flat, Clear
Bezel Color Chrome
Bezel Style SAE
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-5/16"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Axle Temperature
Range 100-250 °F
Includes (Replacement) Light Covers Red 3214 & Green 3215
Instruction Manual Part Number 2650-1079
