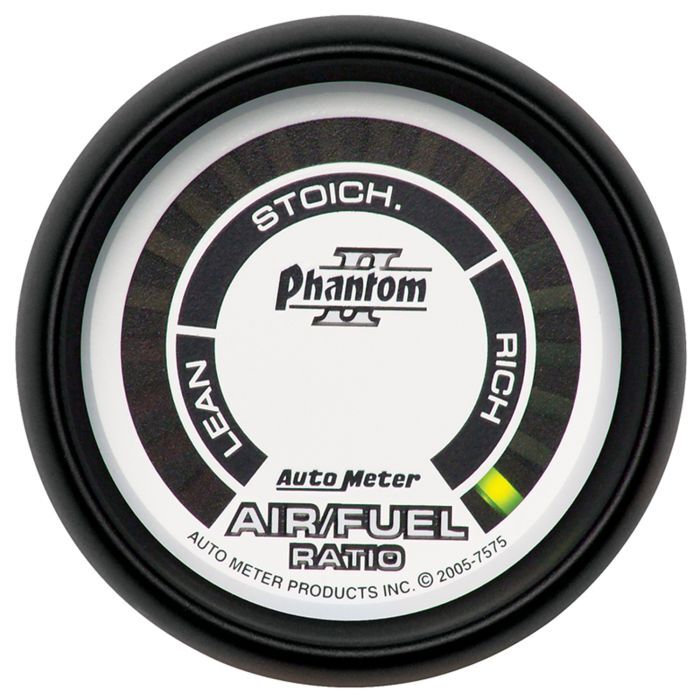

Autometer Gauge, Air/Fuel Ratio-Narrowband, 2 1/16", Lean-Rich, Led Array, Phantom Ii, Phantom Ii (SKU: AMT-7575)

Running too lean while enjoying spirited driving in your vehicle is one of the leading causes of expensive engine damage. AutoMeter’s Narrowband Air/Fuel Gauges pair with older Oxygen Sensors to warn of lean burn conditions under heavy engine load. Connects directly to the factory O2 sensor on many applications, or uses the AutoMeter 2244 Narrowband O2 sensor. Not compatible with 5 wire air/fuel sensors.

  • Compatible with factory narrowband O2 sensors (0-1V)
  • May require model 2244 if the vehicle does not have a factory narrowband primary O2 sensor
  • Features LED radial bar graph display (gauge does not have provision for backlight)
  • Will not work with wideband O2 sensors (0-5V) - please check your specific application before purchase

SPECIFICATIONS

Series PHANTOM II
Product Type Gauge Air/Fuel Ratio-Narrowband
Dial Color White
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type LED Segments
Lighting Color Red/Yellow/Green
Movement Digital
Gauge Type Narrowband Air/Fuel Ratio (AFR)
Range LEAN-RICH
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1163
