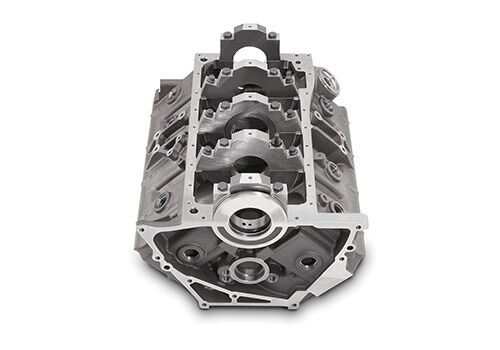

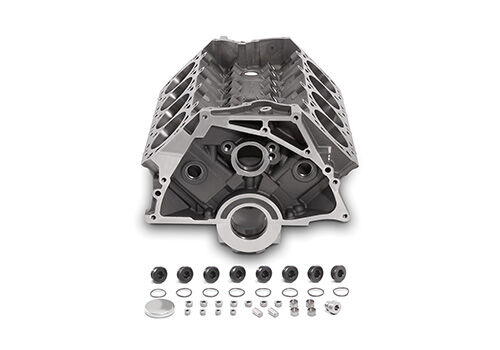

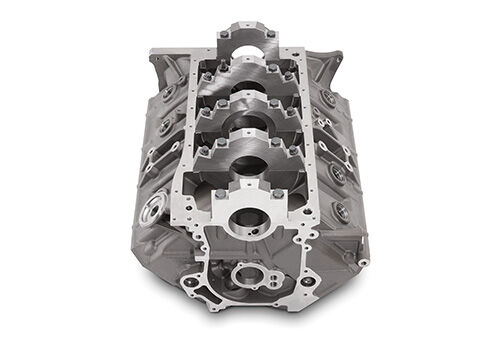

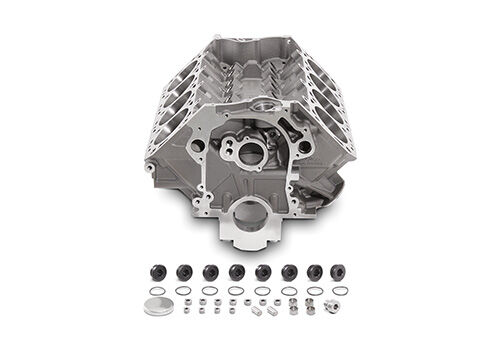

Ford Performance Parts 460 C.I.D. Siamese Bore Engine Blocks



Direct from Ford Performance Parts are these 460 c.i.d. Siamese bore racing blocks. Don't rely on finding that old junkyard engine when you can have one of these new 460 Siamese bore blocks for your ultimate power trip needs. Siamese blocks are solid castings between the cylinder bores to increase the strength of the blocks.

The New 460 engine block replaces the M-6010-A460BB block and is manufactured with all new tooling.

  • 10.322" deck Height plus or minus .005"
  • Cast iron Block with 4-bolt main caps on journals 2, 3, and 4
  • Nodular iron main caps
  • Can be bored/stroked to produce 598 cu. in.
  • Siamese cylinder bores
  • Rough bored to 4.490" +- .003"
  • Maximum recommended bore 4.625"
  • Wet sump oiling design
  • 3.00" main journal diameter
  • Weighs approximately 275 lbs.
  • High-strength block for professional competition
  • NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them. This is done to increase the strength of the block.
  • Also available in standard bore version, part number: M-6010-A460X

Part Type

Engine: Engine Blocks

Warranty Availability

Not Available

Package Dimensions

25" x 24" x 31"

Package Weight

271 lb(s)

UPC Code

756122013229

Country of Origin

United States
