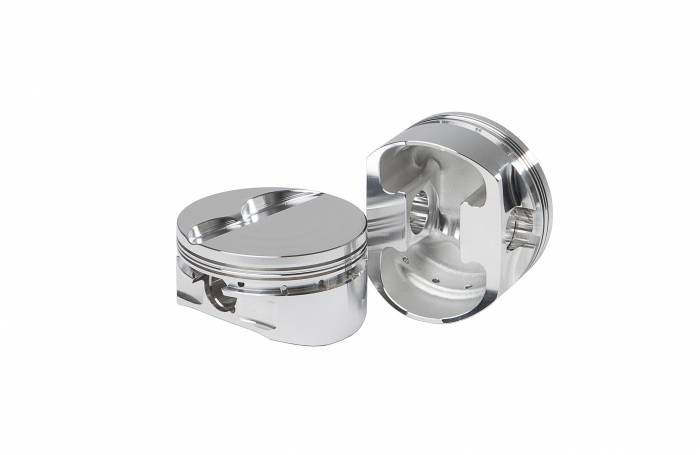

The pistons from Diamond Pistons are suitable for use on the street as well as at the drag strip. Domestic engines with high-compression, forced induction, or nitrous-fed engines are designed and tested for high-stresses. These forged aluminium pistons are precisely built for your engine to produce the performance you need, and they are engineered with lifespan, reliability, and strength in mind.

Product Specifications Details
Item Number 31035-8
Engine Make Ford
Bore 4.125
Stroke 4.000
Rod 6.200
Comp Height 1.270
Weight 481
Pin .927 x 2.750
CC -6.0cc
Comp Ratio 12.9
Cylinder Head Chamber CC 58
Ring Thickness 1/16 x 1/16 x 3/16
VP Intake Depth 0.300
VP Exhaust Depth 0.234
Cylinders 8
Barcode ID 686162211562
Class DIA-A-PSSK
Product Relations Details
Product Line Small Block Ford Flat Top
Pins Included Y
Pin Part# G9272750155
Rings Included Y
Ring Part# 09024125
Rails Included Y
Support Rail Part# 019000120-8
Locks Included Y
Lock Ring Part# 015104-32
Country of Origin USA
