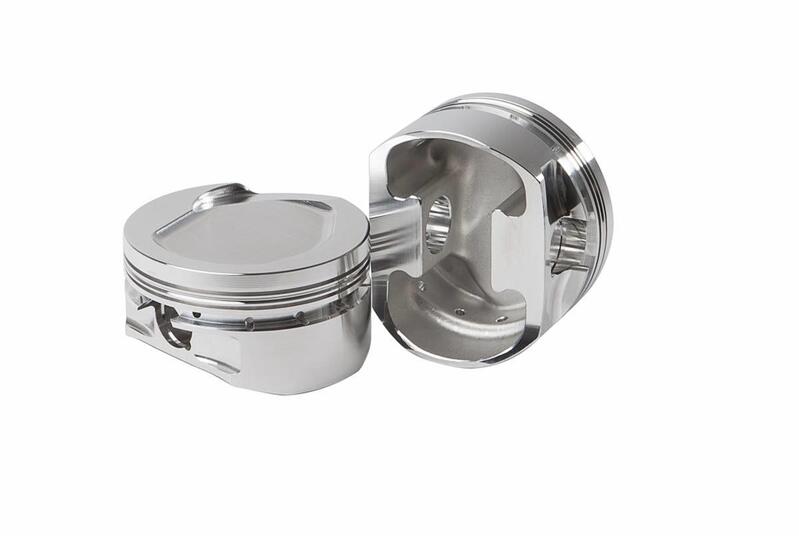

The pistons from Diamond Pistons are suitable for use on the street as well as at the drag strip. Domestic engines with high-compression, forced induction, or nitrous-fed engines are designed and tested for high-stresses. These forged aluminium pistons are precisely built for your engine to produce the performance you need, and they are engineered with lifespan, reliability, and strength in mind.

m Number 32633-8
Engine Make Ford
Bore 4.030
Stroke 4.000
Rod 6.000
Comp Height 1.190
Weight 434
Pin .927 x 2.750
CC -14.5cc
Comp Ratio 9.5
Cylinder Head Chamber CC 72
Ring Thickness 1/16 x 1/16 x 3/16
VP Intake Depth 0.205
VP Exhaust Depth 0.000
Cylinders 8
Barcode ID 686162214297
Class DIA-A-PSSK
Product Relations Details
Product Line Small Block Ford Dish
Pins Included Y
Pin Part# G9272750155
Rings Included Y
Ring Part# 09024030
Rails Included Y
Support Rail Part# 019000030-8
Locks Included Y
Lock Ring Part# 015104-32
Country of Origin USA
