Davies Craig Water Pump, Remote Electric, 80LPM/21GPM, EWP80, 12V, Alloy, w/ Controller, Kit
Part Number:DC-8919
EWP®80 Alloy Combo Remote Electric Water Pump & Controller (12V) (Part #8919)
The EWP®80 Alloy Electric Water Pump is a simple, DIY installation solution designed to complement or replace your existing belt-driven, mechanical water pump. It fits most vehicle makes and models with naturally aspirated engines up to two litres (2000cc).
This Australian-designed pump is made from lightweight aluminum with excellent thermal conductivity and features a ceramic-faced seal for long-lasting durability. With a maximum flow rate of 90 L/min (24 g/min) and 35mm (1-3/8") inlet and outlet, it is finished in a sleek matt-black powder coating for superior performance and style.
The EWP®80 greatly enhances engine cooling control, improves fuel economy, and adds power by eliminating the parasitic power losses of a belt-driven pump, providing up to 10kW (13hp) of extra power and increased torque.

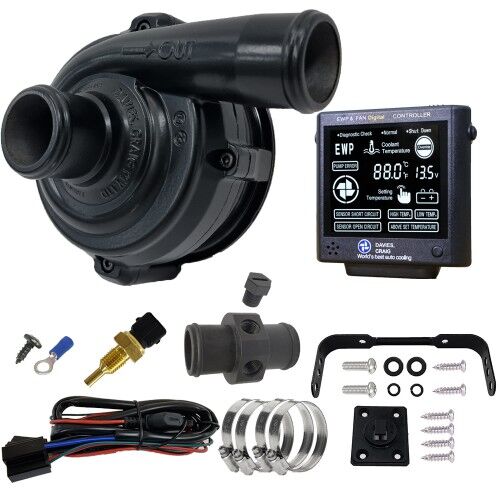

COMBO CONTENTS |
|
| Part Description | Units |
| EWP®80 Alloy | 1 |
| EWP/Fan Digital Controller & Mounting Plate + Bracket | 1 |
| Thermal Sensor Coolant Temp - 1/4" NPT Thread | 1 |
| Adaptor - Nylon - Inline, 38mm (2 x 1/4" NPT) | 1 |
| 1/4" NPT Nylon Bung | 1 |
| Wiring Harness | 1 |
| Hose Clamps | 4 |
| Screw - Self Tap 8x3/8 BZ | 1 |
| Blue 6mm Ring Terminal | 1 |
| Installation Instructions | 1 |
TECHNICAL SPECIFICATIONS |
|
| Operating Voltage | 13.8V DC (16V Maximum) |
| Maximum Current | 7.5A @ 13V |
| Flow Rate (Max) | 90 L/min (23.8 US gal/min) |
| Maximum Head Height | 5.2m (17ft) |
| Operating Temp. | -40°C to 120°C (-40°F to 248°F) |
| Pump Weight | 1025 grams (2.26 lbs) |
| Motor Type | Brushed DC Motor |
| Body Material | Aluminum |
| Burst Pressure | 500 kPa (72.52 PSI) |
| Inlet & Outlet | 35mm (1-3/8") Push-on Barb |
| Hose Fitment | 32mm to 38mm (1-1/4" to 1-1/2") |
| Hose Fitment with 3mm Sleeve (Part #8510) | 41mm to 44mm (1-5/8" to 1-3/4") |
| Hose Fitment with 6mm Sleeve (Part #8511) | 47mm to 50mm (1-7/8" to 2") |
EWP & Controller Installation Demonstration
