EWP®80 Alloy Flange Combo Remote Electric Water Pump & Controller (12V) (Part #8908)

The EWP®80 Alloy Flange Combo offers a high-performance solution for engine cooling, replacing traditional belt-driven pumps or functioning as an auxiliary pump. It fits most vehicle makes and models with naturally aspirated engines up to two litres (2000cc).

This compact pump is made from lightweight aluminum, featuring six-bolt flange fittings on both the inlet and outlet for superior fitment flexibility. The provided 35mm (1-3/8") straight and right-angle push-on barb fittings allow easy installation in various applications.

The EWP®80 enhances engine cooling control, improves fuel economy, and adds power by eliminating the parasitic power losses of a mechanical water pump, providing up to 10kW (13hp) of extra power and increased torque.

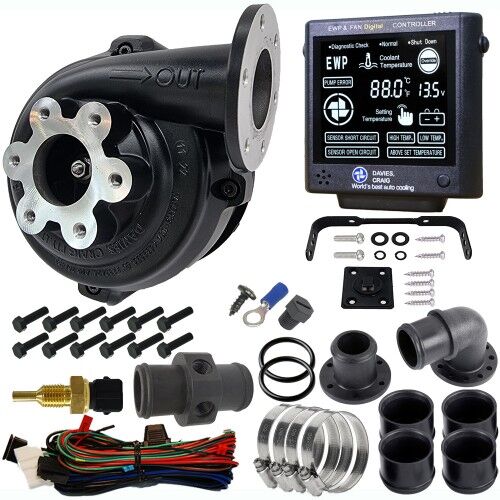

CONTENTS

Part Description Units
EWP®80 - Alloy Flange 1
EWP/Fan Digital Controller & Mounting Bracket + Plate 1
Inline Adapter Nylon 35mm (2 x 1/4" NPT) & Nylon Bung 1
Thermal Sensor Coolant Temp 1/4" NPT 1
5x12 Flanged Hex Set Screw Zinc Silver 12
35mm Nylon Flange Adapter 90° Elbow 1
35mm Nylon Flange Adapter Straight 1
EWP Adapter O-Ring 2
Adapter Rubber Sleeve 3mm (1/8") 4
Hose Clamps 4
EWP & Controller Wiring Harness 1
6mm Ring Terminal 1
Self-Tapping Screw 1
Installation Instructions 1

TECHNICAL SPECIFICATIONS

Operating Voltage 12V DC (16V Maximum)
Maximum Current 7.5A @ 13V
Flow Rate (Max) 90 L/min (23.8 US gal/min)
Maximum Head Height 5.2m (17ft)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1100 grams (2.43 lbs)
Motor Type Brushed DC Motor
Body Material Aluminum
Burst Pressure 500 kPa (72.52 PSI)
Inlet & Outlet 6 Bolt Flange, 35mm Push-on Barb
Hose Fitment 32mm to 38mm (1-1/4" to 1-1/2")
Hose Fitment with 3mm Sleeve (Part #8510) 41mm to 44mm (1-5/8" to 1-3/4")
Hose Fitment with 6mm Sleeve (Part #8511) 47mm to 50mm (1-7/8" to 2")

EWP & Controller Installation Demonstration
