EWP®80 Alloy Kit Remote Electric Water Pump (12V) (Part #8009)

The EWP®80 Alloy Electric Water Pump is a simple, do-it-yourself installation designed to complement or replace your existing belt-driven, mechanical water pump. It is suitable for most vehicle makes and models with naturally aspirated engines up to two litres (2000cc).

This Australian-designed pump is made from lightweight aluminum, offering excellent thermal conductivity and incorporating a ceramic-faced seal for long-lasting durability. With a maximum flow rate of 90 L/min (24 g/min), 35mm (1-3/8") inlet and outlet, and a sleek matt-black powder-coated finish, it combines high performance and style.

The EWP®80 enhances engine cooling control, improves fuel economy, and adds power by eliminating the parasitic power losses of a belt-driven water pump, providing up to 10kW (13hp) of extra power and increased torque.

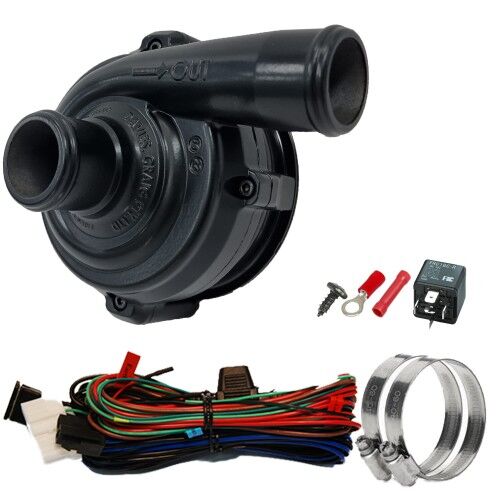

KIT CONTENTS

Part Description Units
EWP®80 Alloy 1
EWP Basic Wiring Harness 1
Hose Clamps 2
Red Wire Joiner 1
Red 6mm Ring Terminal 1
Relay - 12V 40 Amp 5 Pin with Resistor Protection 1
Screw - Self Tap 8x3/8 BZ 1
Installation Instructions 1

TECHNICAL SPECIFICATIONS

Operating Voltage 13.8V DC (16V Maximum)
Maximum Current 7.5A @ 13V
Flow Rate (Max) 90 L/min (23.8 US gal/min)
Maximum Head Height 5.2m (17ft)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1025 grams (2.26 lbs)
Motor Type Brushed DC Motor
Body Material Aluminum
Burst Pressure 500 kPa (72.52 PSI)
Inlet & Outlet 35mm (1-3/8") Push-on Barb
Hose Fitment 32mm to 38mm (1-1/4" to 1-1/2")
Hose Fitment with 3mm Sleeve (Part #8510) 41mm to 44mm (1-5/8" to 1-3/4")
Hose Fitment with 6mm Sleeve (Part #8511) 47mm to 50mm (1-7/8" to 2")

EWP & Controller Installation Demonstration
