EWP®80 Alloy Flange Kit Remote Electric Water Pump (12V) (Part #8006)

The EWP®80 Alloy Flange Kit offers a high-performance solution for engine cooling, replacing belt-driven pumps or functioning as an auxiliary pump. It fits most vehicle makes and models with naturally aspirated engines up to two litres (2000cc).

This compact pump, made from lightweight aluminum, features six-bolt flange fittings on both the inlet and outlet, ensuring superior fitment flexibility. The provided 35mm (1-3/8") straight and 90° elbow push-on barb fittings allow easy installation for various applications.

With a maximum flow rate of 90 L/min (23.8 g/min), the EWP®80 enhances engine cooling control, improves fuel economy, and eliminates parasitic power losses, providing up to 10kW (13hp) of extra power and increased torque.

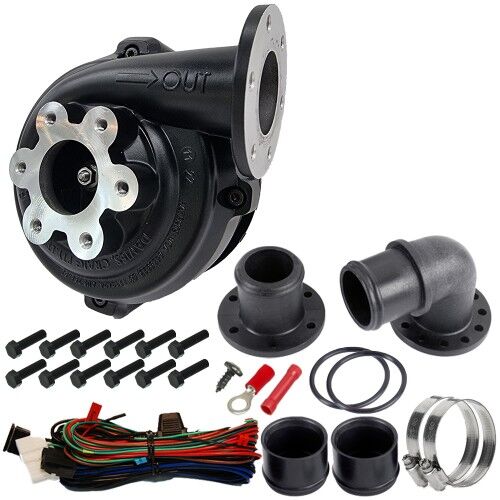

KIT CONTENTS

Part Description Units
EWP®80 - Alloy Flange 1
5x12 Flanged Hex Set Screw Zinc Silver 12
35mm Nylon Flange Adapter 90° Elbow 1
35mm Nylon Flange Adapter Straight 1
EWP Adapter O-Ring 2
Adapter Rubber Sleeve 3mm (1/8") 2
Hose Clamps 2
EWP Basic Wiring Loom 1
Wire Joiner 1
6mm Ring Terminal 1
Relay 12V 40 Amps 1
Self-Tapping Screw 1
Installation Instructions 1

TECHNICAL SPECIFICATIONS

Operating Voltage 12V DC (16V Maximum)
Maximum Current 7.5A @ 13V
Flow Rate (Max) 90 L/min (23.8 US gal/min)
Maximum Head Height 5.2m (17ft)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1100 grams (2.43 lbs)
Motor Type Brushed DC Motor
Body Material Aluminum
Burst Pressure 500 kPa (72.52 PSI)
Inlet & Outlet 6 Bolt Flange, 35mm Push-on Barb
Hose Fitment 32mm to 38mm (1-1/4" to 1-1/2")
Hose Fitment with 3mm Sleeve (Part #8510) 41mm to 44mm (1-5/8" to 1-3/4")
Hose Fitment with 6mm Sleeve (Part #8511) 47mm to 50mm (1-7/8" to 2")

EWP & Controller Installation Demonstration
