Transmission Oil Cooler 23 Plate & 8" Fan Combo (24V) (Part #699)

The Hydra-Cool® 23-Plate Transmission Oil Cooler, combined with an 8" Thermatic® Electric Fan (24V), provides superior cooling for transmission oil under demanding conditions such as towing, off-road driving, or heavy traffic.

Features & Benefits:

  • 33% more efficient than tube-and-fin designs
  • Compact plate-and-fin design suitable for limited mounting spaces
  • High-efficiency turbulators for superior heat transfer
  • 100% pressure tested at 150 PSI for reliability
  • Includes a reverse polarity electric fan for push or pull configurations

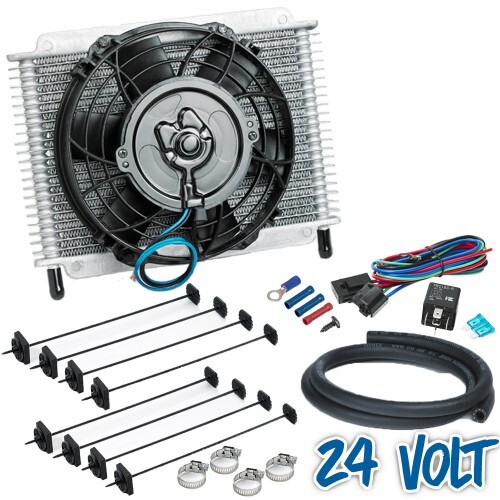

KIT CONTENTS

Description Units
Hydra-Cool® 23-Plate Transmission Oil Cooler 1
3/8" Hose (1.4 meters) 1
Hose Clamps 4
8" Thermatic® Electric Fan (24V) 1
Quick Fit Kits (Nylon Ties x4) 2
Instructions 1

SPECIFICATIONS

Plates 23
Overall Dimensions (Width x Height) 281mm x 229mm
Core Dimensions (Width x Height) 281mm x 200mm
Inlet/Outlet Size 3/8" (9.5mm)
Heat Transfer Rate 13,937 BTU/HR
Fluid Capacity 76.7ml
