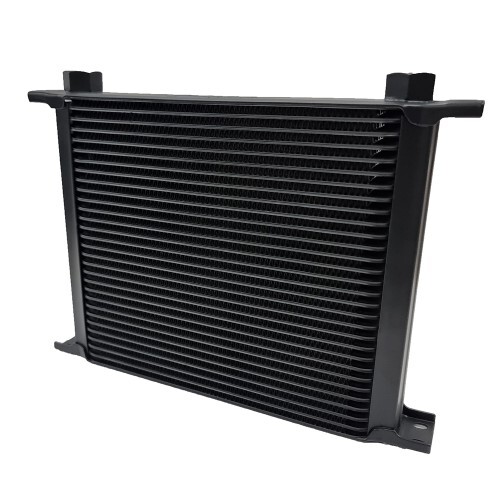

Universal Engine Transmission Oil Cooler (50mm) 30-Row AN10 (Part #610)

Optimize your engine and transmission cooling with the heavy-duty Universal Oil Cooler. Designed to extend the life of engines and transmissions, this model is ideal for larger SUVs, engine/transmission combinations, and applications requiring improved heat dissipation. Its compact 50mm plate-and-fin design delivers maximum cooling efficiency while fitting into limited spaces.

Features & Benefits:

  • 50,000 BTU/HR heat transfer rate
  • 100% pressure tested at 150 PSI for quality assurance
  • 200% more performance than comparable tube-and-fin designs
  • Pre-drilled mounting plates for easy installation
  • Internal tubulation for efficient heat transfer
  • Inlet/Outlet Size: AN10 ORB fittings

KIT CONTENTS

Description Units
50mm Universal Oil Cooler Kit - 30-Row AN10 1
Instructions 1

SPECIFICATIONS

Plates 30
Core Thickness 50mm
Overall Dimensions (Width x Height) 330mm x 249mm
Core Dimensions (Width x Height) 285mm x 226mm
Heat Transfer Rate 50,000 BTU/HR
Fluid Capacity 690ml
