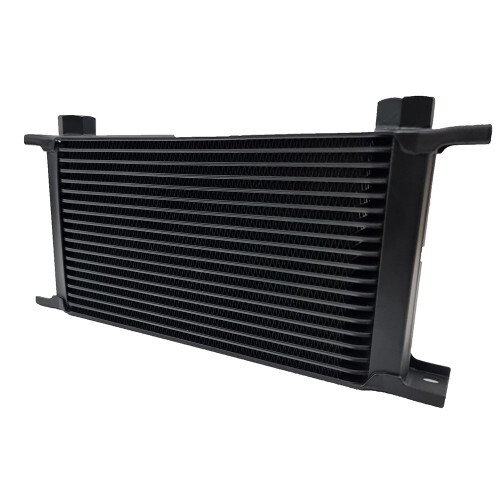

Universal Engine Transmission Oil Cooler (50mm) 19-Row AN10 (Part #605)

The 50mm Universal Oil Cooler is designed to efficiently maintain optimal engine oil or transmission temperature. Its robust plate-and-fin design delivers superior cooling performance for demanding applications while fitting into compact spaces.

Features & Benefits:

  • 37,000 BTU/HR heat transfer rate
  • 100% pressure tested at 150 PSI for quality assurance
  • 136% more efficient than comparable tube-and-fin designs
  • Pre-drilled mounting plates for easy installation
  • Inlet/Outlet Size: AN10 ORB Fittings
  • Internal tubulation for maximum heat transfer

KIT CONTENTS

Description Units
50mm Universal Oil Cooler Kit - 19-Row AN10 1
Instructions 1

SPECIFICATIONS

Plates 19
Core Thickness 50mm
Overall Dimensions (Width x Height) 330mm x 166mm
Core Dimensions (Width x Height) 285mm x 142mm
Heat Transfer Rate 37,000 BTU/HR
Fluid Capacity 440ml
