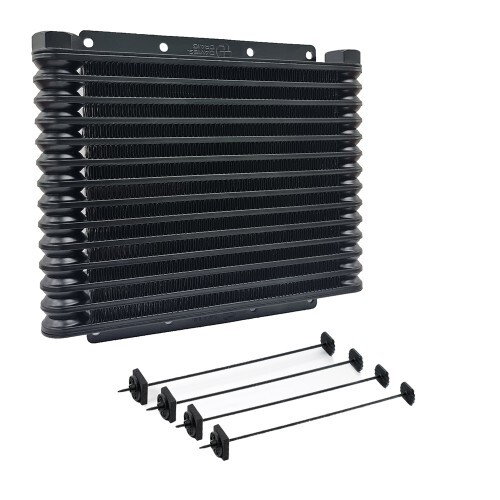

Universal Engine Transmission Oil Cooler (32mm) 14-Row AN10 (Part #602)

The 32mm Universal Oil Cooler is an effective and economical solution to maintain optimal engine oil or transmission temperature. Its compact plate-and-fin design is ideal for applications with limited mounting space and delivers superior cooling performance.

Features & Benefits:

  • 21,000 BTU/HR heat transfer rate
  • 100% pressure tested at 150 PSI for quality assurance
  • 75% more efficient than comparable tube-and-fin designs
  • Pre-drilled mounting plates for easy installation
  • Inlet/Outlet Size: AN10 ORB Fittings
  • Internal tubulation for maximum heat transfer

KIT CONTENTS

Description Units
Universal Oil Cooler Kit - 14 Row - AN10 1
Instructions 1

SPECIFICATIONS

Plates 14
Core Thickness 32mm
Overall Dimensions (Width x Height) 258mm x 224.5mm
Core Dimensions (Width x Height) 258mm x 185.5mm
Heat Transfer Rate 21,000 BTU/HR
Fluid Capacity 500ml
