Universal Engine Transmission Oil Cooler (50mm) 30-Row AN10 & 8" Fan Combo (12V) (Part #608)

The 50mm Universal Oil Cooler, coupled with an 8" Thermatic® Electric Fan, is an ideal solution for controlling engine and transmission heat in heavy-duty and high-performance applications. Its compact design is perfect for installations with limited space, while the 8" fan can operate in either 'push' or 'pull' mode for maximum airflow.

This model is designed to extend engine and transmission life by ensuring efficient heat dissipation, making it suitable for larger SUVs, engine/transmission combinations, and other demanding setups.

Features & Benefits:

  • 50,000 BTU/HR heat transfer rate
  • 100% pressure tested at 150 PSI for quality assurance
  • 200+% more efficient than comparable tube-and-fin designs
  • Pre-drilled mounting plates for easy installation
  • Inlet/Outlet Size: AN10 ORB Fittings
  • Internal tubulation for maximum heat transfer

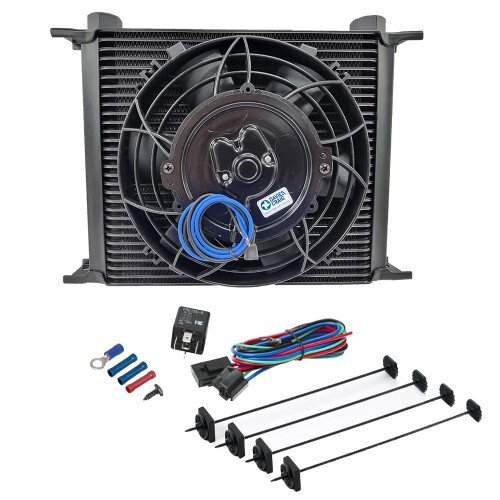

KIT CONTENTS

Description Units
Universal Oil Cooler 30-Row AN10 (50mm) 1
8" Thermatic® Electric Fan (12V) 1
Fan Wiring Harness 1
Hardware Bag including Relay & Connectors 1
Quick Fit Kits – Nylon Ties x4 1
Instructions 1

SPECIFICATIONS

Plates 30
Core Thickness 50mm
Overall Dimensions (Width x Height) 330mm x 249mm
Core Dimensions (Width x Height) 285mm x 226mm
Heat Transfer Rate 50,000 BTU/HR
Fluid Capacity 690ml
