Universal Engine Transmission Oil Cooler (32mm) 14-Row AN10 & 8" Electric Fan Combo (Part #600)

Enhance your engine oil or automatic transmission cooling with the 32mm Universal Oil Cooler paired with an 8" Thermatic® Electric Fan. This combo provides efficient cooling and greater mounting flexibility, making it ideal for applications with limited space. The Davies Craig 8" fan can operate in either 'push' or 'pull' mode.

The 32mm Universal Oil Cooler is designed with high-efficiency turbulators for superior heat transfer and a robust plate-and-fin construction for exceptional durability.

Features & Benefits:

  • 100% pressure tested at 150 PSI for quality assurance
  • 75% more efficient than comparable tube-and-fin designs
  • Pre-drilled mounting plates for easy installation
  • Inlet/Outlet Size: AN10 ORB Fittings
  • Internal tubulation for maximum heat transfer

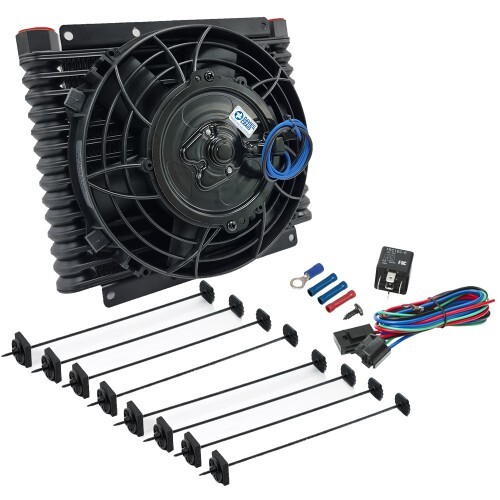

KIT CONTENTS

Description Units
Universal Oil Cooler Kit - 14 Row - AN10 1
8" Thermatic® Electric Fan (12V) 1
Fan Wiring Harness 1
Hardware Bag including 12V Relay & Connectors 1
Quick Fit Kits – Nylon Ties x4 2
Instructions 1

SPECIFICATIONS

Plates 14
Core Thickness 32mm
Overall Dimensions (Width x Height) 258mm x 224.5mm
Core Dimensions (Width x Height) 258mm x 185.5mm
Heat Transfer Rate 21,000 BTU/HR
Fluid Capacity 500ml
