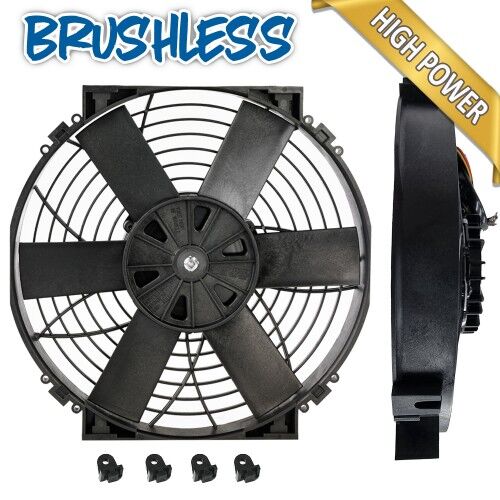

Brushless 12" High Power Thermatic® Electric Fan (12 VOLT) (PART #0127)

Davies Craig Brushless Thermatic® Electric Fans offer outstanding performance for their size, delivering up to a staggering 53% increase in airflow and 5 times the service life over the standard brushed models!

It is also 25% thinner than its brushed High Power motor equivalent!

Brushless Thermatic® Fans are suitable for use as:

  • Radiator cooling fans
  • Air conditioner condenser fans
  • Transmission and engine oil cooler fans

It provides constant or variable airflow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, and increased engine power.

The IP68-rated motor with built-in reversible motor rotation technology allows for either upstream (pusher) or downstream (puller) applications.

The flexibility of nine (9) different smart motor control modes—full-speed running, analog speed control, or pulse width modulation (PWM) speed control—allows for optimal control in any application.

These fan assemblies are set up for upstream/pusher applications from the factory.

For downstream applications, the fan blade must be removed and turned over, and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and fastening the unit to the radiator.

SPECIFICATIONS

Fan Model 12" High Power Brushless
Part Number #0127
Maximum Airflow 1295 CFM (ft³/min), 2200 m³/min
Dimensions

Height: 293 mm (11.5 in)

Width: 293 mm (11.5 in)

Depth: 68.9 mm (2.71 in)

Operating Voltage 13.5 V
Startup Voltage 7.5 V
Maximum Voltage 18 V
Current Draw 18 A
Weight 1500 grams (3.3 lbs)
Ambient Temperature -40°C to 80°C (-40°F to 176°F)
IP Rating IP68

SPEED CONTROL

Speed Range 420 RPM to 4000 RPM
PWM Frequency 100 Hz to 1000 Hz
PWM Duty Cycle 0% to 100%
PWM Signal Voltage 7.5 V to 18 V
Analog Voltage 0 V to Supply Voltage



COMPONENTS

Part Description Units
Brushless 12" High Power Thermatic® Electric Fan (12 VOLT) 1
Mounting Feet 4
