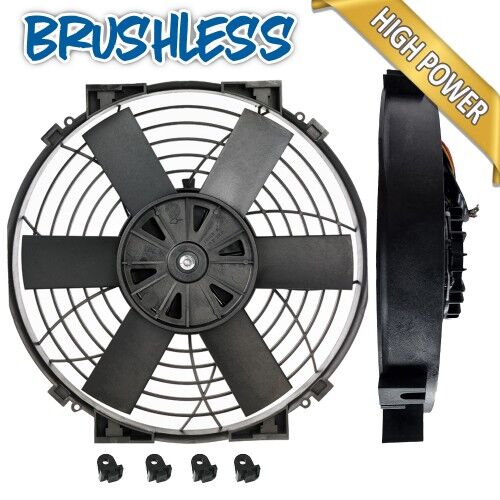

Brushless 10" High Power Thermatic® Electric Fan (12 VOLT) (PART #0125)

Davies Craig Brushless Thermatic® Electric Fans offer outstanding performance for their size, delivering up to a staggering 46% increase in airflow and 5 times the service life over the standard brushed models!

It is also 26% thinner than its brushed High Power motor equivalent!

Brushless Thermatic® Fans are suitable for use as:

  • Radiator cooling fans
  • Air conditioner condenser fans
  • Transmission and engine oil cooler fans

It provides constant or variable airflow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, and increased engine power.

The IP68 rated motor with built-in reversible motor rotation technology allows for either upstream (pusher) or downstream (puller) applications.

The flexibility of nine (9) different smart motor control modes; Full speed running, analogue speed control, or pulse width modulation (PWM) speed control allowing for optimal control in any application.

These fan assemblies are set up for upstream / pusher applications from the factory.

For downstream applications, the fan blade must be removed and turned over, and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.

COMPONENTS

PART DESCRIPTION Units
Brushless 10" High Power Thermatic® Electric Fan (12 VOLT) 1
Mounting Feet 4



PRODUCT SPECIFICATIONS

Fan Model 10” High Power Brushless
Part Number #0125
Maximum Airflow 1020 CFM (ft³/min)
1736 m³/min
Dimensions Height 278 mm (10.9 in)
Width 275 mm (10.8 in)
Depth 66.5 mm (2.62 in)
Operating Voltage 13.5 V
Startup Voltage 7.5 V
Maximum Voltage 18 V
Current Draw 15 A
Weight 1400 grams
3 lbs
Ambient Temperature -40°C – 80°C
-40°F – 176°F
IP Rating IP68



SPEED CONTROL

Parameter Minimum Maximum
Speed Range 420 RPM 4200 RPM
PWM Frequency 100Hz 1000Hz
PWM Duty Cycle % 0% 100%
PWM Signal Voltage 7.5V 18V
Analogue Voltage 0 V Supply voltage
