Thermatic® Fan Switch Kit (Gauge) Streamline (Part #0501)

This streamlined version of Part #0500 includes only the essential components for controlling your Thermatic® Fans and Electric Water Pumps. The kit features a 52mm round gauge with an LED digital display for easy installation inside the driver’s compartment.

The Thermatic® Fan Switch automatically activates single or twin fans, or a fan and Electric Water Pump, at your targeted temperature. It can also detect and display air, coolant, or transmission fluid temperatures, depending on the sensor installation method.

Sensor Wire Length: 380cm

Note: For 24V applications, purchase 2 x 24V relays (Part #10534).

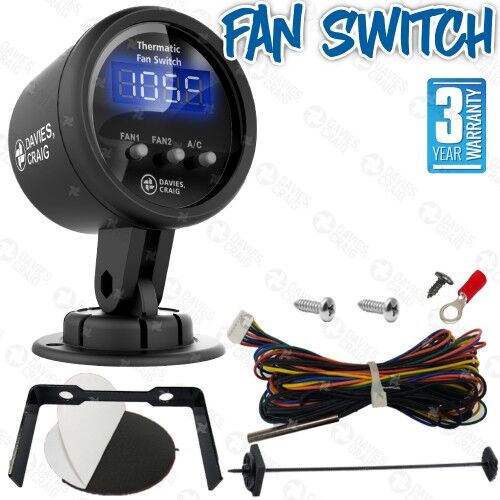

KIT CONTENTS

Description Units
Digital Thermatic Fan Switch - 52mm Gauge 1
Gauge Stand - Mounting Screws & Pad 1
Wiring Loom with Probe Sensor 1
Red 6mm Ring Terminal 1
Screw - Self Tapping 8x3/8 1
Temperature Probe Sensor Mounting Kit 1
Installation Instructions 1

Features & Benefits:

  • Temperature range: 5°C to 110°C (41°F to 230°F)
  • Detects ambient air temperature, coolant temperature, or transmission fluid temperature
  • Independent temperature settings for Fan #1 and Fan #2
  • Universal 52mm gauge design with LED indicators
  • Simple push-button temperature adjustment
  • 24V compatibility with additional relays (sold separately)
