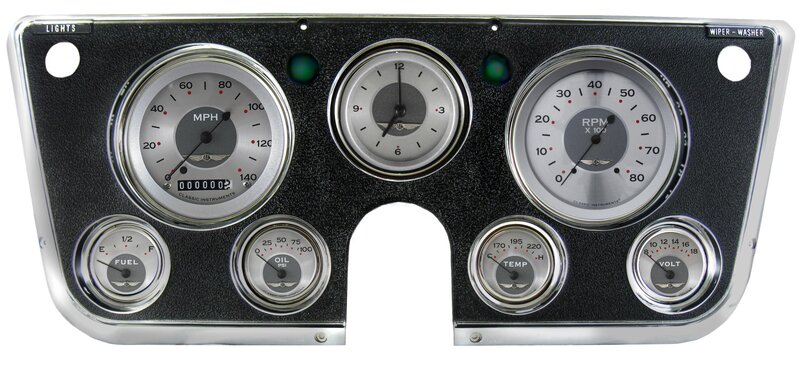

The 1967-72 Chevy Truck Package with ourAll American Series installed, features a 4 5/8" Speedometer and tachometer, 3 3/8" Clock, and 2 1/8" Fuel (0-90 OHM), Oil, Temp, and Volt gauges. A blue LED high beam indicator is installed in the speedometer.The set includes pre-wired electrical connections, mounting hardware, all necessary* sending units, and a wiring harnessconstructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. It is equipped with our ZST™ and works directly with ECM or VSS signals so no additional control box is needed. *Fuel sending unit not included, fuel gauge is calibrated to stock 0-90 OHM.**Dash bezel not included.

Features:
LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
Turn signal indicators in the left and right sides of cluster, green LEDs
High beam indicator hidden at the top of the tachometer, red LED HaloTM
Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM
