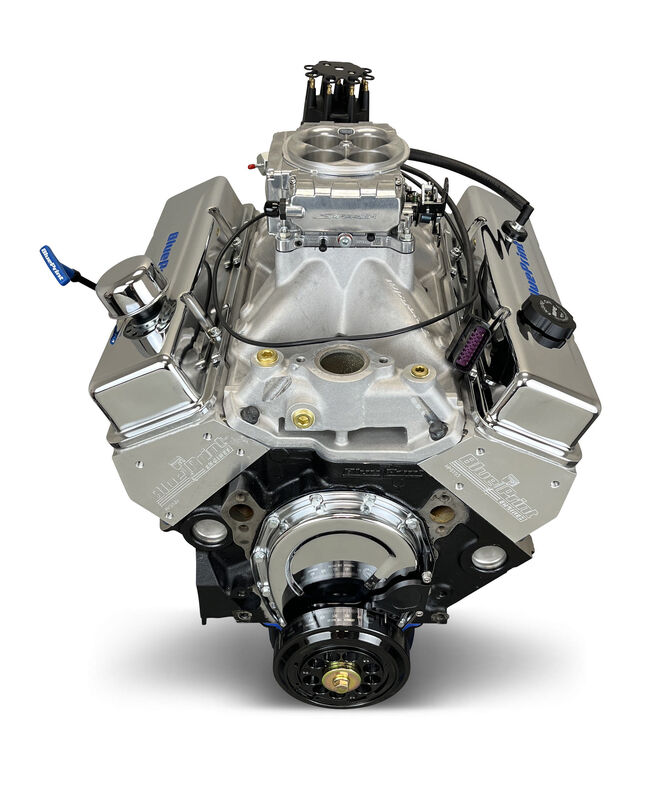

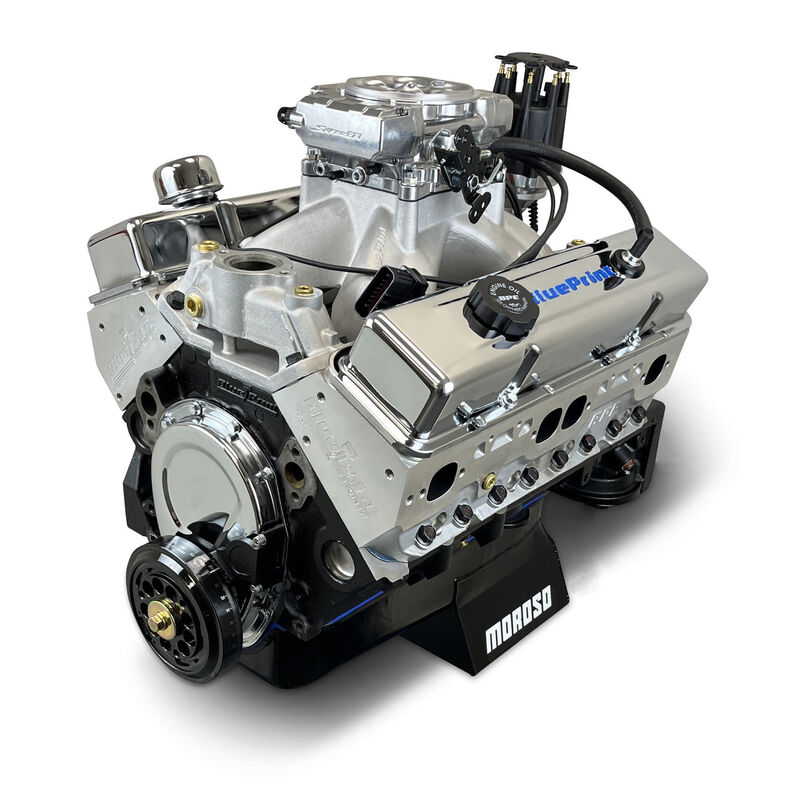

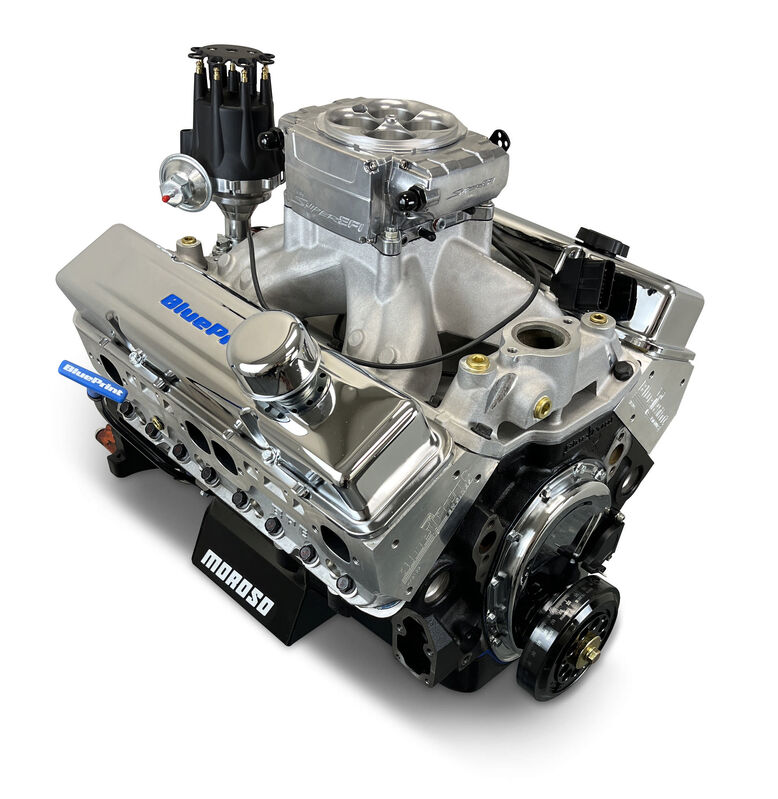

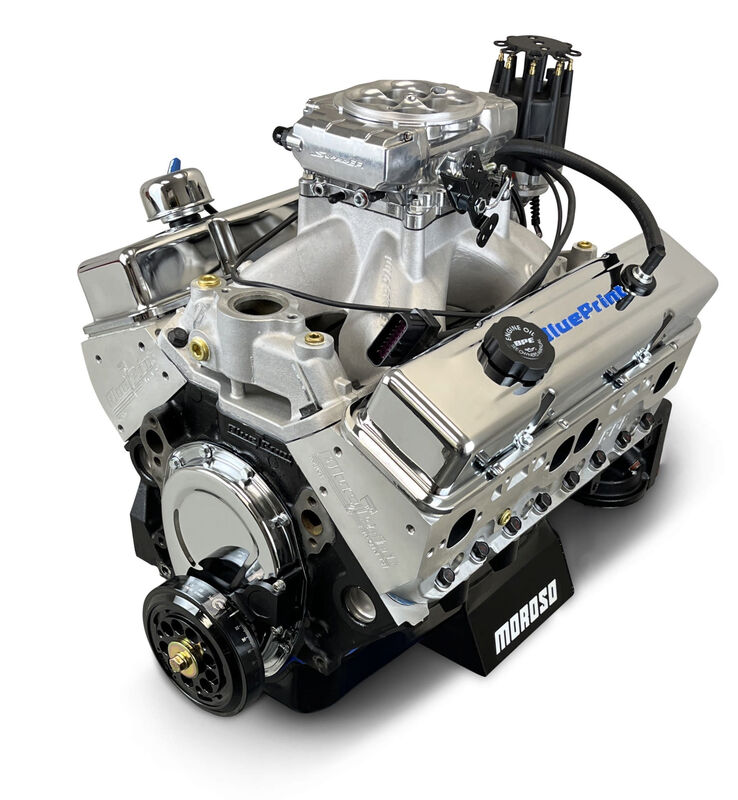

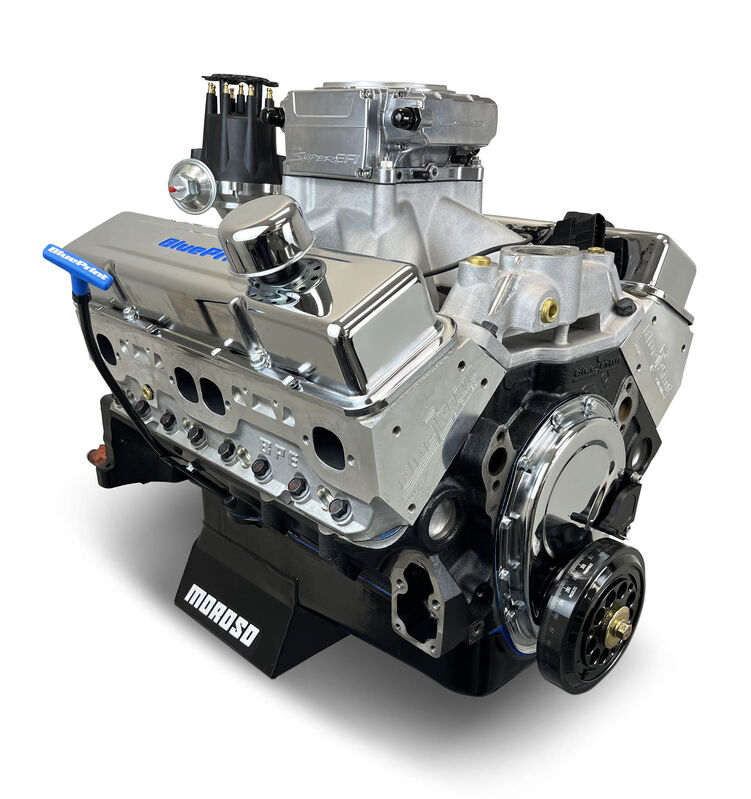

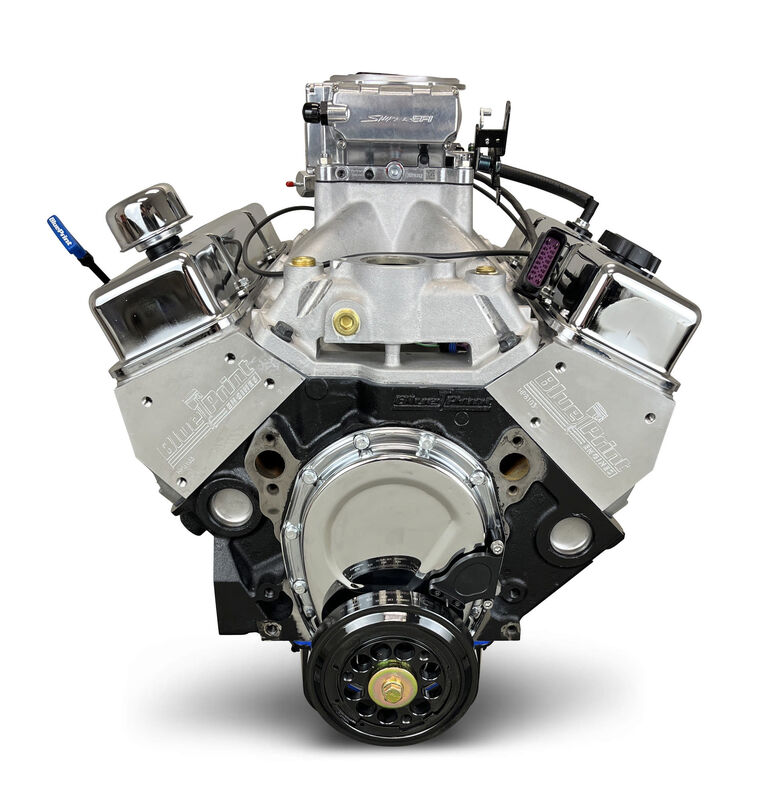

BluePrint Engines GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected (PART #BPE-BPMS396CTF)

The BluePrint Motorsports 396 c.i. Anchored by BluePrint’s high strength cast iron block, this powerhouse is ready for action, available with a Sniper 2 EFI sitting on top of the high-rise BluePrint Engines aluminum intake manifold for maximum performance and drivability. Whether you’re tearing down the drag strip or carving through an autocross course, this beast is built to scream to high RPM and put the competition on notice.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
• Cylinders are Sonic Tested for Thickness
• Drilled and Tapped for Clutch Linkage
• Align Honed Main Bearing Bore
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000" Bore

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc Chamber
• 2.08" Intake / 1.60" Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Rotating Assembly:

• Forged I-beam 6.000" Connecting Rods
• Internally Balanced Front - Externally Balanced Rear

Stall Converter:

Customer should match engine output and car setup to find best converter.

Included items:

• Holley Sniper 2 EFI - Self-Tuning Kit - Chrome - BPP550-510-3XX
• BluePrint Engines Valve Covers - BPP9518
• Pro Series Ready Run Distributor
• BluePrint Dipstick - BPP6750
• Moroso Street / Strip Oil Pan
• High Volume Oil Pump
• Timing Cover
• Balancer

Notes:

• BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
