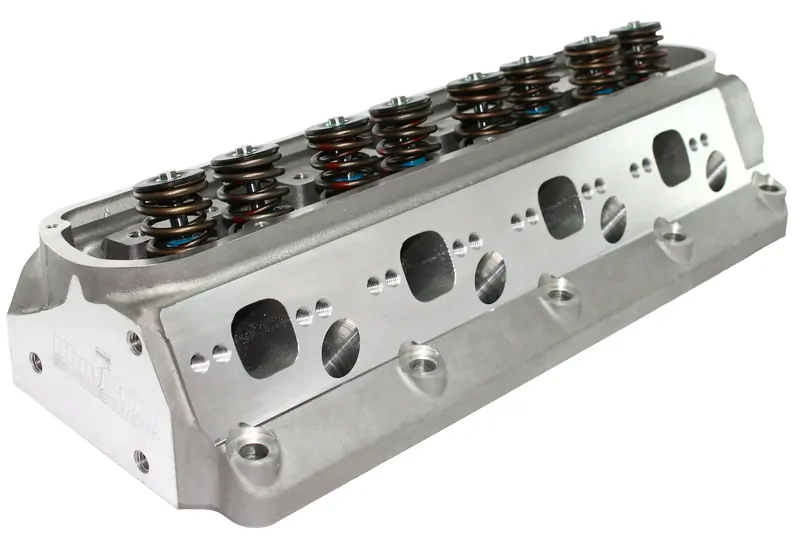

BluePrint Engines Engine Cylinder Head, Small Block Ford Aluminum - 190cc - Pedestal Mount - Assembled (PART #BPE-HP9008)

Overview:

Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Ford and feature 190cc intake/65cc exhaust runners, 60cc combustion chambers, and 2.02" intake/1.60" exhaust valves. They're fully assembled with valve springs, retainers, locks, and seals. Manufacturers part number -HP9008.

SPECIFICATIONS

Maximum Output for Less Money!
Designed and Produced by BluePrint Engines
Fully Assembled with Heavy Duty Components
Backed by Our Full 12-Month Limited Warranty

INTAKE

Intake Runner Volume (cc)190cc
Intake Port LocationStandard
Intake Port ShapeRectangular
Port Dimension 2 x 1.10 in.
Intake Valves IncludedYes
Intake Valve Diameter (in)2.020 in.
Machined Intake RunnerCNC-No
CFM Port Flow Average @ 28" .100" – 73 .200" – 120 .300" – 168 .400" – 203 .500" – 238 .600" - 240

EXHAUST

Runner Volume (cc)CNC- 65cc
Exhaust Valve Diameter (in)1.600 in.
Exhaust Valves IncludedYes
Port ShapeSquare
Exhaust Port LocationStandard
CFM Port Flow Average @ 28"

COMBUSTION CHAMBER

Combustion Chamber Volume (cc)60cc
CNC-Machined Combustion ChamberNo

VALVE SPECS

Maximum Valve Lift (in).575 in.
Intake Valve Angle20 Degrees
Exhaust Valve Angle20 Degrees
Valve Guides IncludedYes
Valve Guide MaterialManganese Bronze
Valve Seats MachinedYes
Valve Seat Machine Style5-Angle
Valve Seat MaterialChrome Nickle
Valve Stem Seals IncludedYes
Valve Stem Seal StyleViton® Fluoroelastomer

SPRINGS

Valve Springs IncludedYes
Spring Pressure Open295-305 @ 1.225
Spring Pressure Closed115-125 @ 1.800
Outside Diameter of Outer Spring (in)1.437 in.
Camshaft StyleHydraulic Roller
Damper Spring IncludedYes
Number of Springs per ValveDual
Retainers IncludedYes
Retainer MaterialChromemoly Steel
Locks IncludedYes
Lock Style7 Degree

GUIDE PLATES

Guide Plates IncludedNo

ROCKER ARMS

Rocker Arm Studs IncludedNo
Rocker Arms IncludedN/A
Rocker Arm Nuts IncludedNo

MISC

Head StyleAssembled
Cylinder Head MaterialAluminum
Cylinder Head FinishNatural
Cover Mounting StyleStandard
Oiling StyleThrough Pushrod
Valve Cover StylePerimeter Bolt
Accessory Bolt Holes DrilledYes
Machined for O-RingNo
Spark Plug StyleAngled
Heat CrossoverNo
7/16-14 in. & 3/8-16 in. Accessory Bolt Holes Machined on Ends of Heads

QTY

Sold Individually

WARRANTY

Backed by our full 12-month limited warranty!
