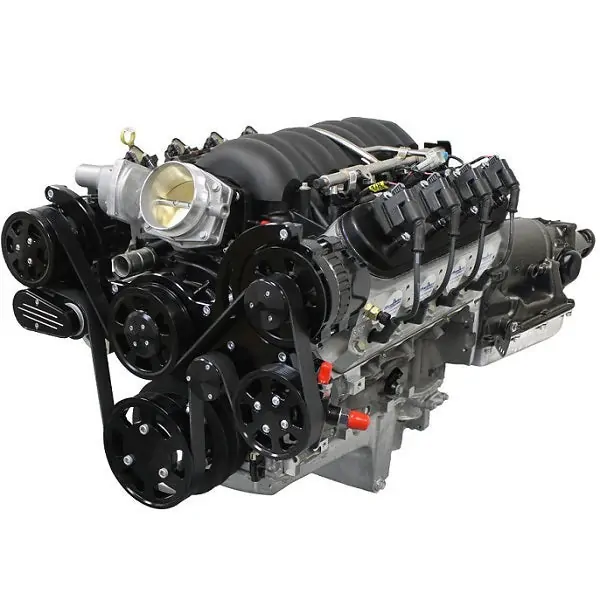

This engine is pictured with an Aluminum Block will come with a Cast Iron Block and Holley Front Drive Pulley Kit.



Description:

  • Horsepower & Torque: 530 Horsepower / 495 ft. lbs.
  • Torque Compression Ratio: 10.7:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Nodular Iron Crankshaft
  • Hypereutectic Pistons

Block

  • BluePrint Engines High Strength Cast Iron (LSX Style) Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 6-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

  • Nodular Iron Crankshaft
  • 3.622" Stroke
  • 6.098" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Internally Balanced

Cylinder Heads

  • BluePrint Aluminum Cylinder Heads - PS8015
  • 72cc Chamber
  • 2.165" Intake - 1.600" Exhaust Valves
  • 259cc Intake - 102cc Exhaust Runners

Cam Specs

  • Cam Type: Roller Cam
  • .612 Intake - .585 Exhaust Lift
  • 225 Intake - 238 Exhaust Duration
  • @.050-113 Degree Lobe Separation, 110 ICL

Also Includes:

  • Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System
  • Low Profile Swap Oil Pan
  • DBW Throttle Body
  • Loaded Intake Manifold
  • Fuel Injectors and Rail
  • Coil Packs
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Black Front Accessory Drive with LT1 Style 150-amp Alternator, LT1 Style Water Pump, Type II Power Steering Pump with Baffled Edges, and Compact Style A/C Compressor

Assembled with Complete 4l65/70e 4 Speed Automatic Transmission Package:

  • 4L65/70E Complete Package
  • Electronic Transmission Controller Included
  • 2200-2400 Stall Torque Converter
  • Flex Plate
  • Starter
