Description:

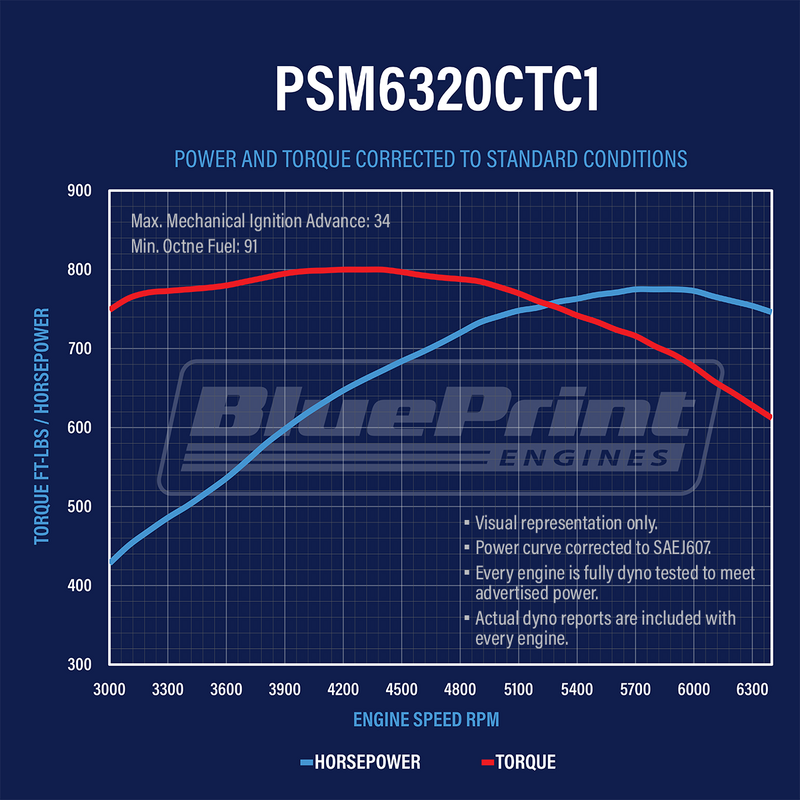

• HP & Torque: 775 HP / 800 FT LBS
• Compression Ratio: 10.0:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:

• NEW BluePrint Cast Iron Block, 10.2" Deck Height
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.500"
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes

Rotating Assembly:

• New BluePrint Forged Crankshaft
• 4.750" Stroke
• Forged H-beam connecting rods
• Forged Pistons
• Internally balanced

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -PS8012
• 119cc chamber
• 2.30" intake/1.88" exhaust valves
• 358cc intake/125cc exhaust runners
• Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
• Must verify clearance of exhaust/headers

Cam Specs:

• Cam Type: Roller
• .647 Intake .647 Exhaust
• 248 Intake / 254 Exhaust duration
• @ .050 - 112-degree lobe separation

Also Includes:

• 1050 cfm carb
• Edelbrock aluminum intake manifold
• Distributor
• Valve covers, oil pan and timing cover
• spark plugs
• MSD spark plug wires
• Harmonic Balancer

Notes:

• For boats being used in salt water, BluePrint Engines recommends a closed cooling system be used as the aluminum cylinder heads and intake manifolds do not have brass lined water passages.
• Replaces Standard Rotation engines only. Not available as reverse rotation.
• BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
