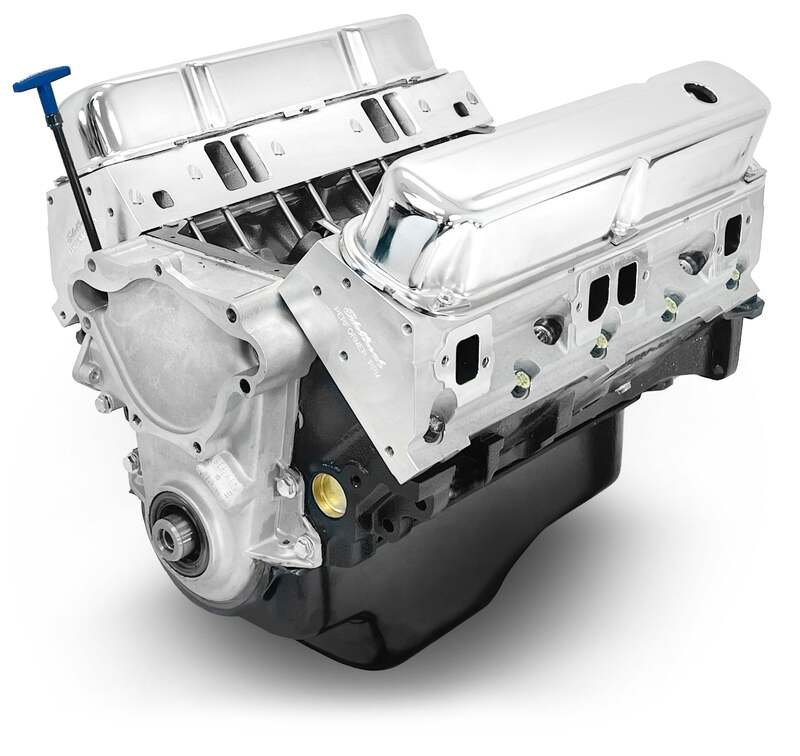

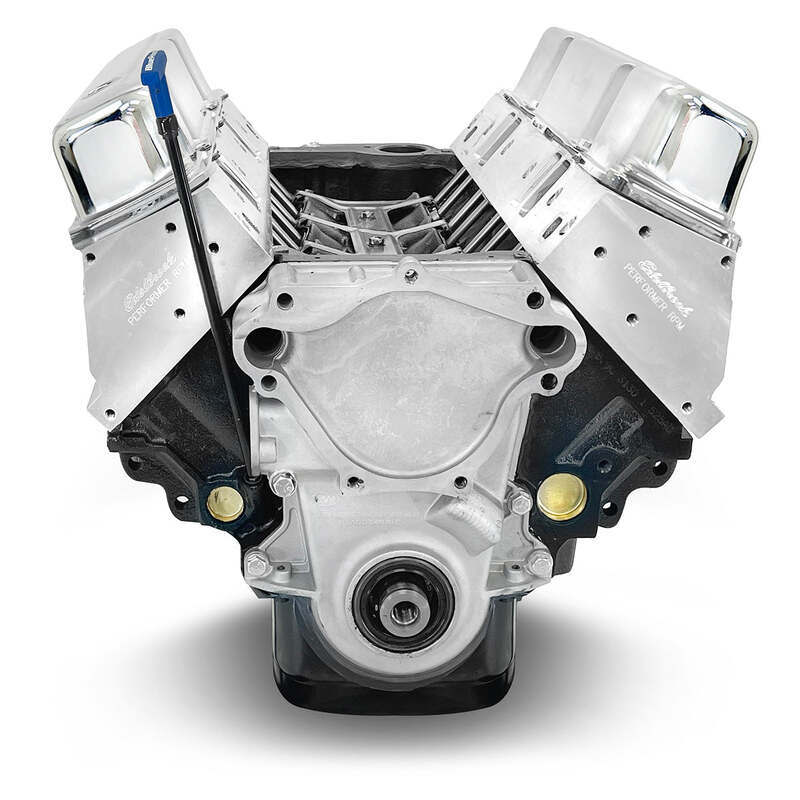

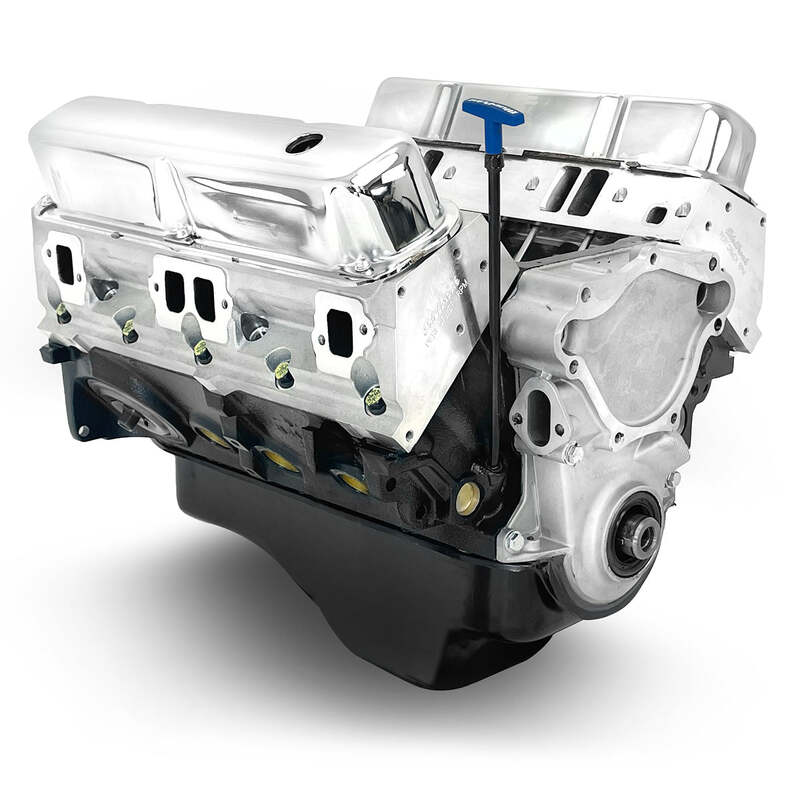

BluePrint Engines Crate Engine, For Chrysler Small-Block, 408ci, 465 HP, Long Block, Each
Part Number:BPE-BPC4085CT
HP & Torque: 465 HP / 494 FT. LBS
Cylinder Heads: BluePrint Engines Assembled, Edelbrock Aluminum Cylinder Heads
Compression Ratio: 10:1
Camshaft: Hydraulic Roller - .544 Intake / .541 Exhaust Lift and 236 Intake / 242 Exhaust Duration @ .050 - 110° LSA
Pistons: Forged
Crankshaft: Steel Crank - 4.000" Stroke and Forged 6.123" Rods
DETAILED INFORMATION
Description:
- HP & Torque: 465 HP / 494 FT LBS
- Compression Ratio: 10:1
- Aluminum Heads
- Roller Cam
- Steel Crank
- Forged Pistons
Block:
- Hand-picked seasoned Magnum block
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer-controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- 2-Bolt Main
- 4.000" Bored .040" over
- 2-Piece Rear Main Seal
- Mech fuel pump provision: Yes
Rotating Assembly:
- New Steel crankshaft
- 4.000" Stroke
- Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
- Forged pistons
- External Balance
Cylinder Heads:
- BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
- Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
- Aluminum Roller Rockers
- 2.02" intake/1.60" exhaust valves
- 176cc intake/75cc exhaust runners
Cam Specs:
- Cam Type: Roller
- .544 Intake .541 Exhaust
- 236 Intake / 242 Exhaust duration
- @ .050 - 110-degree lobe separation
Ignition Timing:
- 34 degrees total at 4000 RPM
Also Includes:
- Valve covers, oil pan and timing cover
Notes:
- Not for use in pollution-controlled vehicles.
- Required Magnum Pattern intake manifold. Tested with
Engine Accessory Specifications

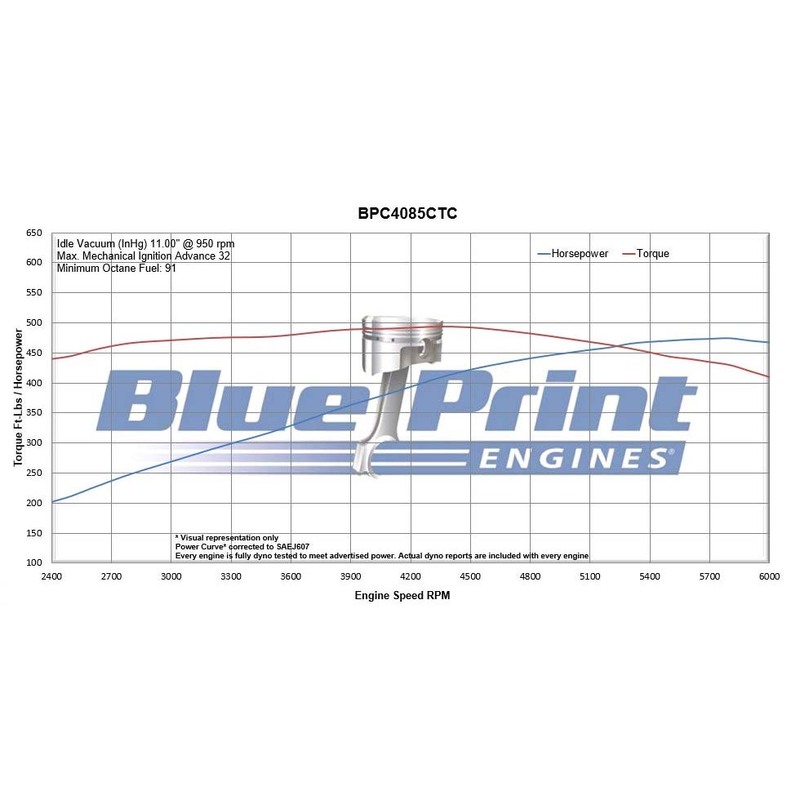

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BPC4085CT
Fuel Delivery Type: Carbureted, 750cfm, manual choke
Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)
Spark Plug Gap: .035"
Harmonic Balancer: Magnum Weighted balancer such as BPP360. EXTERNALLY BALANCED '1993-'1997, 7.25" Diameter.
Flexplate/Flywheel: LA 360, (Pre-Magnum)
Stall Converter: 2200 - 2600 rpm
Intake Manifold: Dual plane, satin aluminum
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
Firing Order: 1,8,4,3,6,5,7,2
Total Oil capacity with production oil pan, and Correct BPP51515 Filter : 5 Quarts
