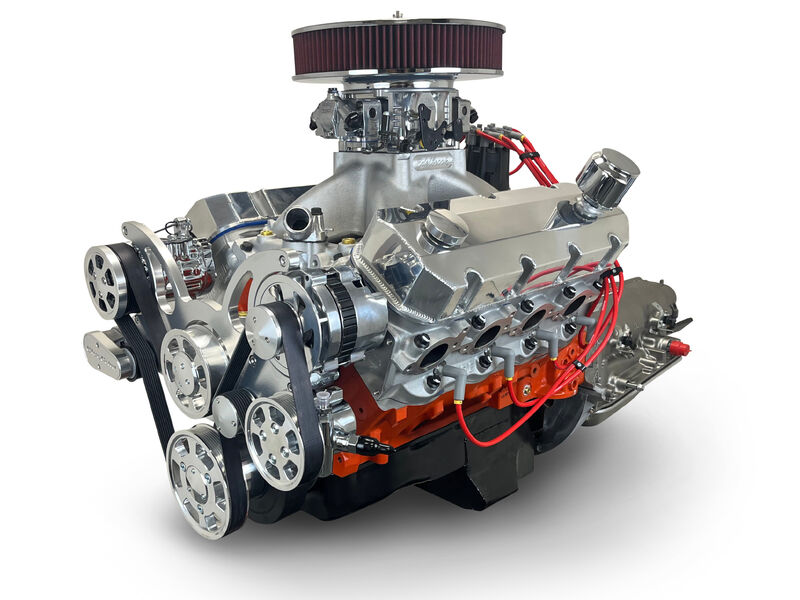

BluePrint Engines 632 c.i. GM Compatible Builder Series - Standard Edition - Fuel Injected - 4L80E Automatic Transmission - Polished Pulley Kit. (PART #BPE-B632FK4L8)

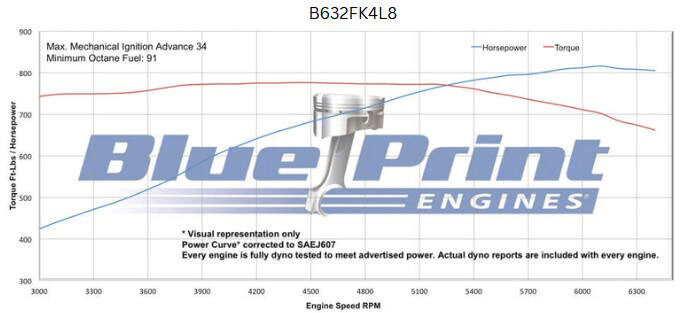

BluePrint Engines delivers ultimate big-block performance and turn-key drivability with the 632 c.i. pro-series paired with a stout 4L80E automatic transmission. This standard edition builder series package cranks out 815 horsepower through a fuel-injected, polished-pulley-equipped setup engineered for high RPM, massive torque, and street or strip domination. Built with pro-series forged internals, precision machining, and bulletproof durability, it’s designed to handle serious power while offering the convenience of a ready-to-run drivetrain.

For builders seeking mind-blowing big-block performance with modern control and installation ease, this 632 Builder Series package is a complete powerhouse.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.600" Bore
• 1-Piece Rear Main Seal
• Mech Fuel Pump Provision: Yes
• Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8012
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 358cc Intake / 125cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting

Rotating Assembly:

• Forged H-beam 6.635" Connecting Rods
• Internally Balanced

Included items:

• Pro Series Ready Run Distributor - BPP3503BK
• Thermostat and Thermostat Housing
• Sniper EFI Stealth 4500
• Spark Plugs & Wires
• Harmonic Balancer
• BluePrint Dipstick
• Valve Covers
• Timing Cover
• Fuel Pump
• Oil Pump
• Oil Pan
• Polished Pulley Kit - BPP454FDPSAC4
  • Reverse Rotation Short Water Pump
  • 1- Wire 140amp Alternator
  • Peanut Style Air Conditioning Compressor
  • Type II Power Steering Pump with Remote Reservoir

Assembled with Complete 4l80e Automatic Transmission Package:

• 4L80E Complete Package with Electronic Controller Included
• W/Lockup Capability
• 3800+ Stall Torque Converter
• Flex Plate
• Starter
  • Gear Ratios: 1: 2.482
  • 2: 1.482
  • 3: 1.00
  • 4: 0.750
  • R: 2.077

Notes:

• BPE recommends electric fans that produce 3000 cfm or more, for engines that are 400cid or less. Engines that are over 400cid BPE recommends 4000cfm or more.
• Not for use in pollution-controlled vehicles.
• This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
• Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
