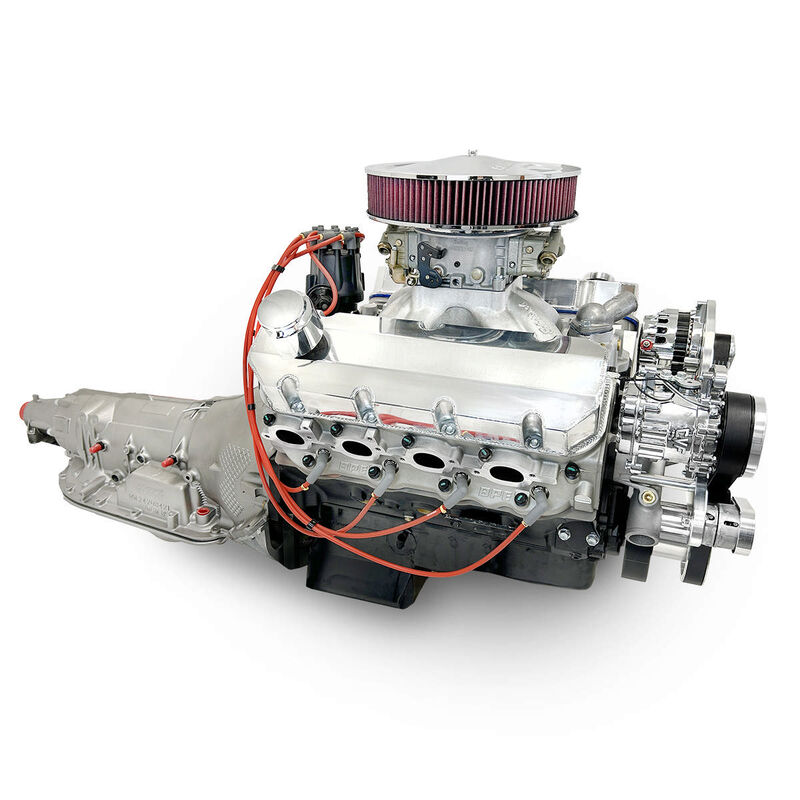

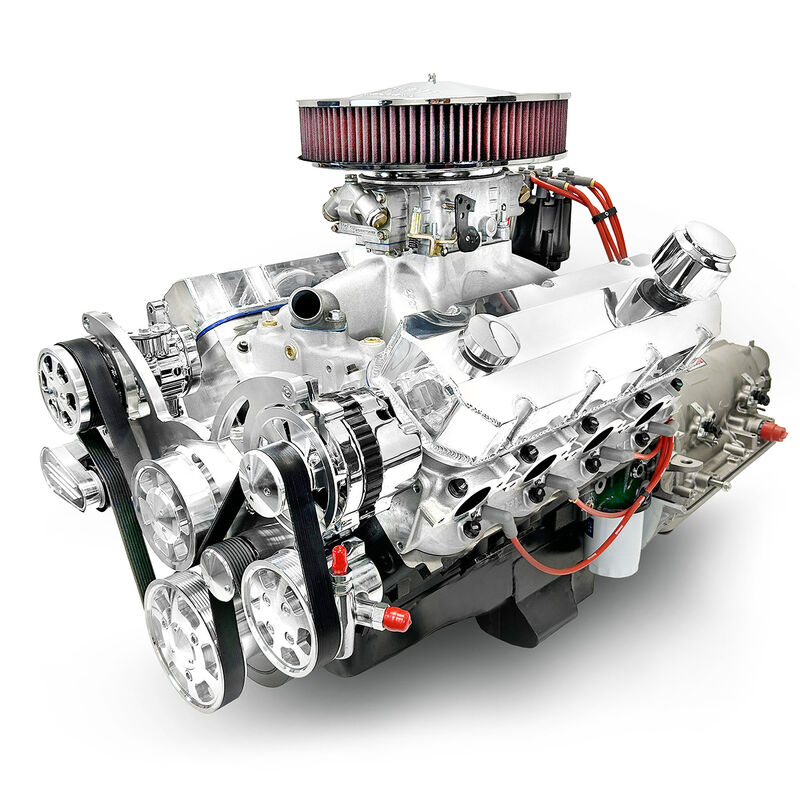

BluePrint Engines 598 c.i. GM Compatible Builder Series - Standard Edition - Carbureted - 4L80E Automatic Transmission - Polished Pulley Kit. (PART #BPE-B598K4L8)

BluePrint Engines delivers classic big-block muscle with modern convenience in the 598 c.i. GM Big Block paired with a rugged 4L80E automatic transmission. This Standard Edition Builder Series setup cranks out 741 horsepower through a carbureted, polished-pulley-equipped package built for high RPM, massive torque, and street or strip domination. Precision-forged internals, tight pro-series machining, and rock-solid durability give you the confidence to push it hard, while the integrated transmission ensures a smooth, ready-to-run install.

If you want old-school big-block attitude combined with turnkey drivability, this 598 Builder Series package is the ultimate choice.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Mech Fuel Pump Provision: Yes
• 1-Piece Rear Main Seal
• Standard Deck
• 4-Bolt Main
• 4.600" Bore

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8012
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 358cc Intake / 125cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
• Must Verify Header / Exhaust Clearance

Rotating Assembly:

• Forged H-beam 6.480" Connecting Rods
• Internally Balanced Front and Rear

Included items:

• Pro Series Ready Run Distributor - BPP3503BK
• Thermostat and Thermostat Housing
• Harmonic Balancer - BPP454I
• 1250cfm Holley Carburetor
• Spark Plugs and Wires
• Electric Fuel Pump
• Intake Manifold
• Timing Cover
• Valve Covers
• Oil Pump
• Oil Pan

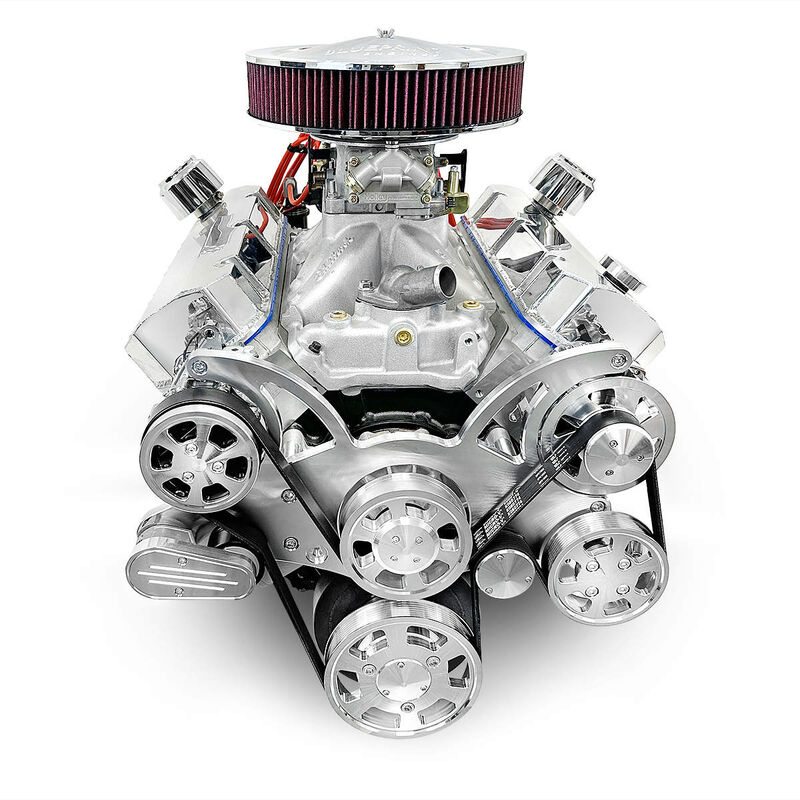

• Polished Pulley Kit - BPP454FDPSAC4
  • Reverse Rotation Short Water Pump
  • 1- Wire 140amp Alternator
  • Peanut Style Air Conditioning Compressor
  • Type II Power Steering Pump with Remote Reservoir

Assembled with Complete 4L80E Automatic Transmission Package:

• 4L80E Complete Package with Electronic Controller Included
• W/Lockup Capability
• 3800+ Stall Torque Converter
• Flex Plate
• Starter
  • Gear Ratios: 1: 2.482
  • 2: 1.482
  • 3: 1.00
  • 4: 0.750
  • R: 2.077

Notes:

• BPE recommends electric fans that produce 3000 cfm or more, for engines that are 400cid or less. Engines that are over 400cid BPE recommends 4000cfm or more.
• BluePrint Engines 598ci crate engine uses a standard deck height block. So, if you are looking for large cubic inches and replacing an old 396ci BBC, or 454 BBC this engine will bolt right in. Talk about an upgrade!
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • Bolt 724hp in place of your Chevy 454 or 396 BBC!
