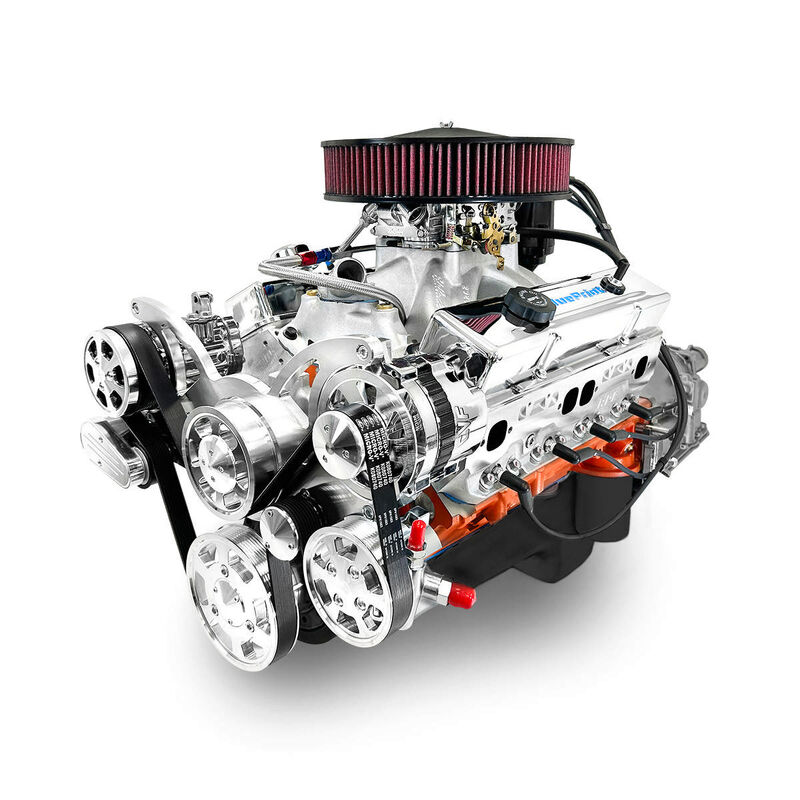

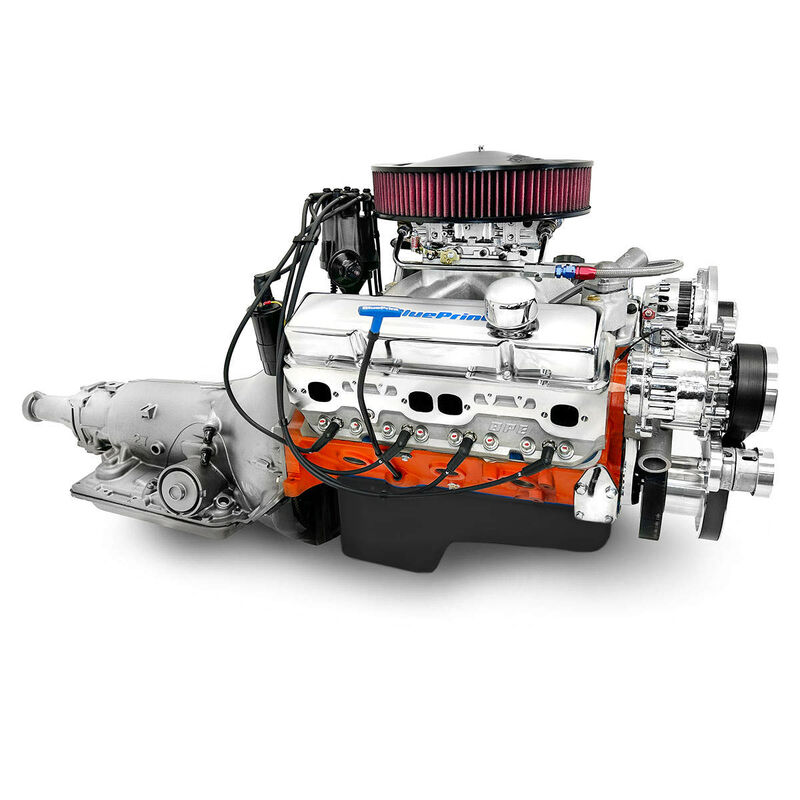

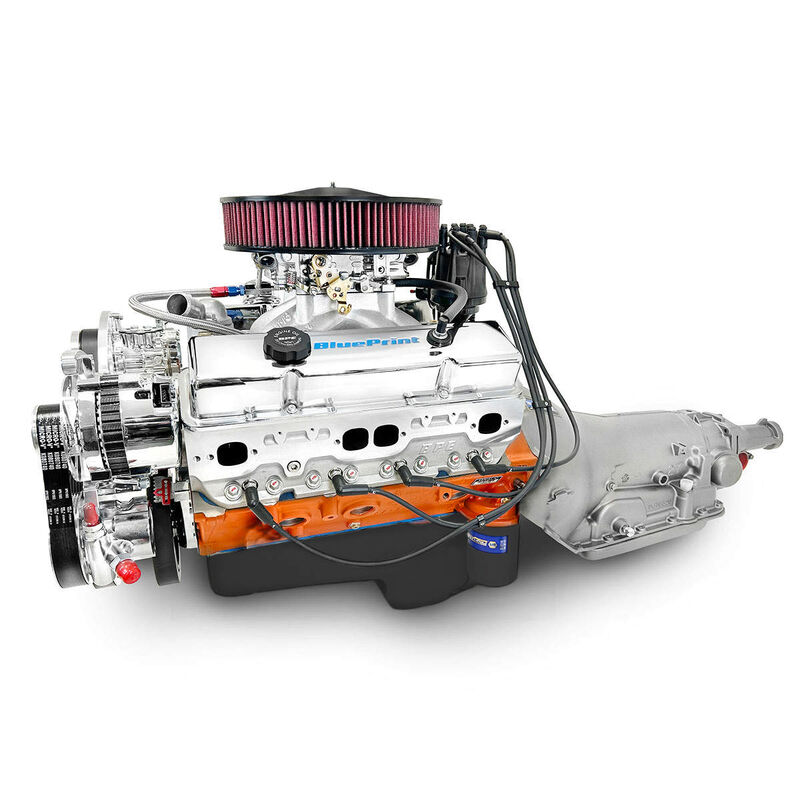

BluePrint Engines 454 c.i. GM Compatible Builder Series - Standard Edition - Fuel Injected - 700R4 Automatic Transmission - Polished Pulley Kit. (PART #BPE-B454FK700)

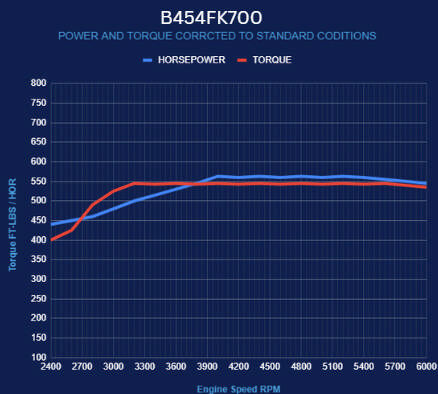

BluePrint Engines brings big-inch small-block power to a turnkey, street-ready package with this 454 c.i. Builder Series engine paired to a 700R4 automatic transmission. Pumping out 563 horsepower, this fuel-injected combo offers sharp throttle response, modern drivability, and the confidence of an overdrive-equipped transmission built for real-world cruising. Pro-series craftsmanship, forged-strength durability, and precision machining make this engine as reliable as it is powerful, while the polished pulley kit adds a clean, high-performance look under the hood.

For builders seeking effortless power, smooth shifting, and modern EFI manners, this 454/700R4 package is the ultimate ready-to-run solution.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.250" Bore

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc Chamber
• 2.08" Intake / 1.60" Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Rotating Assembly:

• Forged 6.000" Connecting Rods
• Internally Balanced Front and Rear

Included items:

• Pro Series Ready Run Distributor - BPP3503BK
• Holley Sniper 2 EFI System - BPP550-510-3XX
• Thermostat and Thermostat Housing
• Valve Covers - BPP9518
• Spark Plugs and Wires
• EFI Fuel Pump Kit - BPP5267
• Timing Cover
• Oil Pan
• Polished Front Accessory Drive - BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete 700R4 Automatic Transmission Package:

• 700R4 Complete Package
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• BPE recommends electric fans that produce 3000 cfm or more, for engines that are 400cid or less. Engines that are over 400cid BPE recommends 4000cfm or more.
• Not for use in pollution-controlled vehicles.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear, or sender housing.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
