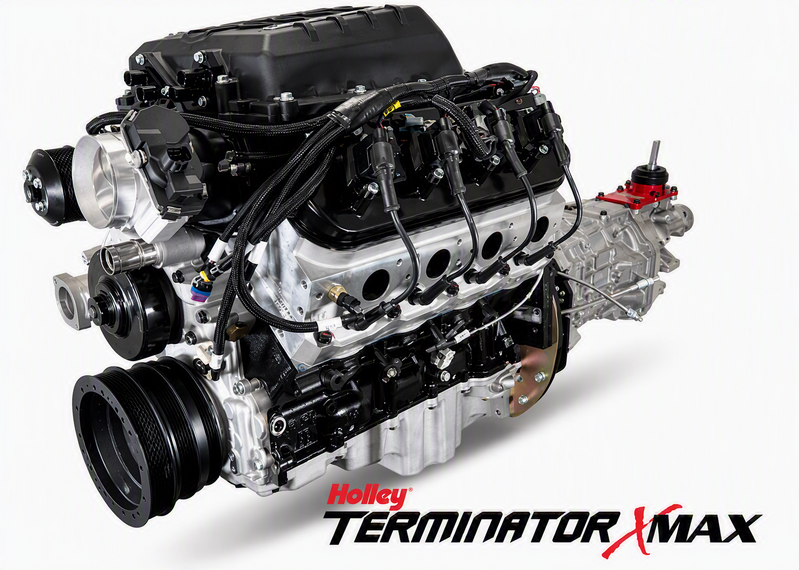

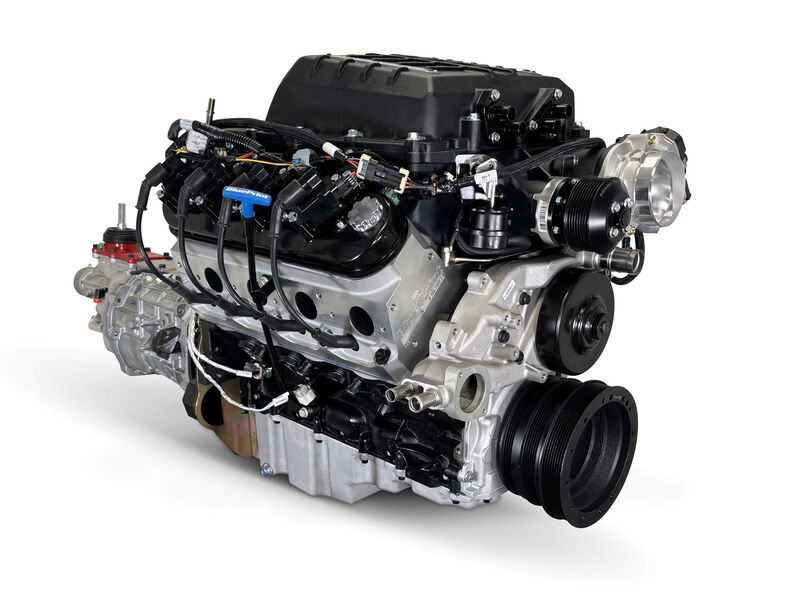

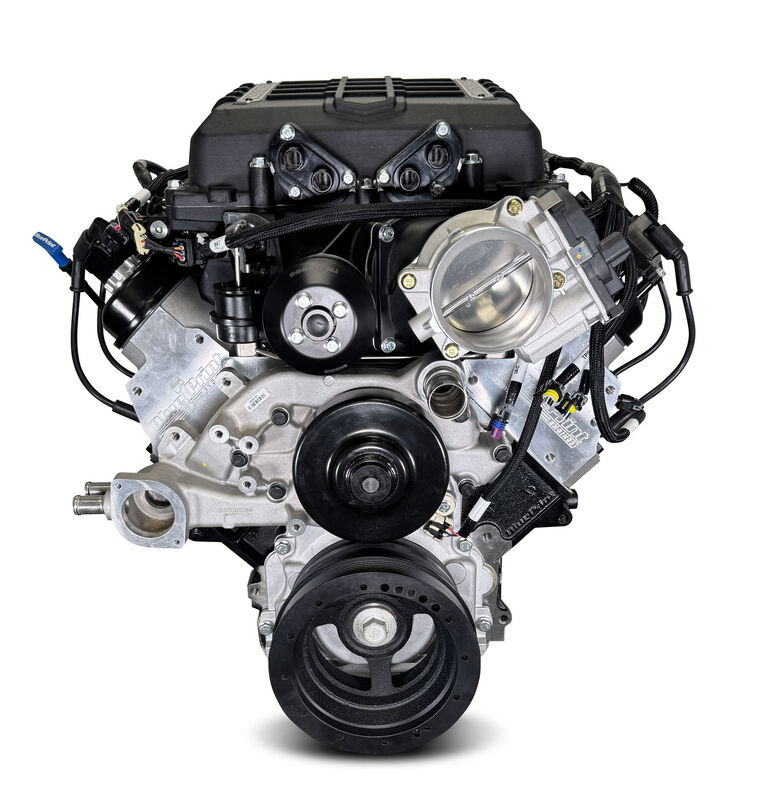

BluePrint Engines 427 c.i. GM LS Compatible Builder Series - Standard Edition - Supercharged - T56 Manual Transmission. (PART #BPE-4279SCTT56)

BluePrint Engines unleashes serious LS power with this 427 c.i. Builder Series package, delivering a massive 830 horsepower and paired perfectly with a tough, street-proven T56 manual transmission. This combo is built for the enthusiast who wants modern reliability with race-ready punch, all controlled by the Holley Terminator X EFI system for crisp tuning, fast starts, and razor-sharp throttle response. Precision machining, premium internals, and BluePrint’s Pro-series build quality ensure the strength to handle every bit of boost, rpm, and abuse you throw at it.

For builders chasing a turnkey LS powerhouse that’s ready to hit the streets, the strip, or anywhere in between, this 427/T56 package is pure, modern muscle, delivered.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 70cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Rotating Assembly:

• Forged 6.125" Connecting Rods
• Front and Rear Internally Balanced

Included items:

• Magnuson TVS Super Charger
• Upgraded Mototron S107 Injectors
• Electronic Fuel Injection
• Coil Packs
• Valve Covers
• Oil Pan
• Drive by Wire Throttle Body
• Timing Cover
• Spark Plugs and Wires
• Harmonic Balancer
• Water Pump

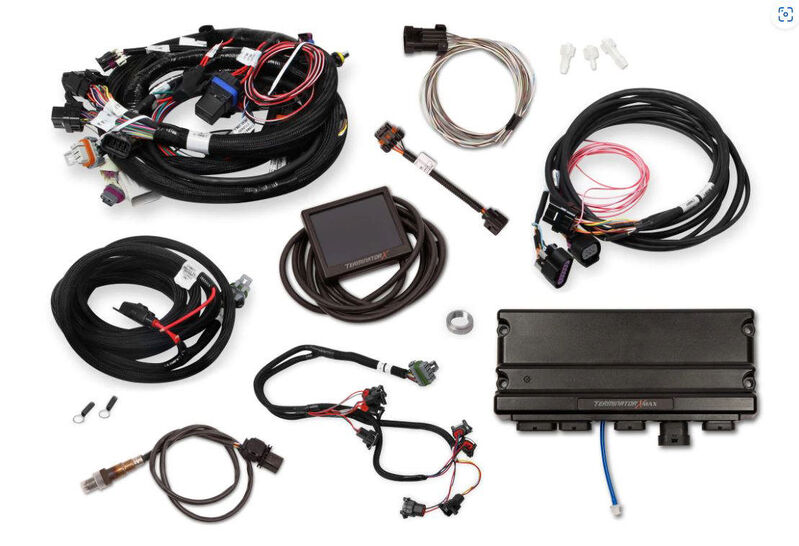

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

Assembled with Complete T56 Six Speed Transmission Package:

• McLeod Super Steel Pro Dual Disk Clutch
• Steel Bell Housing
• Billet Flywheel
• Engine Guard
• Starter
  • First Gear Ration: 2.66:1
  • Second Gear Ratio: 1.78:1
  • Third Gear Ration: 1.30:1
  • Fourth Gear Ration: 1.00:1
  • Fifth Gear Ration: 0.80:1
  • Sixth Gear Ration: 0.63:1

Notes:

• Please note, It is not necessary to run the Holley setup wizard, as this will erase the existing calibration loaded by BluePrint Engines. The ecu is fully unlocked and tunable for further adjustments once installed in customer vehicle.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars Not for use in pollution-controlled vehicles or in dry sump applications.
• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
• Engine/Trans Package Ships assembled.
