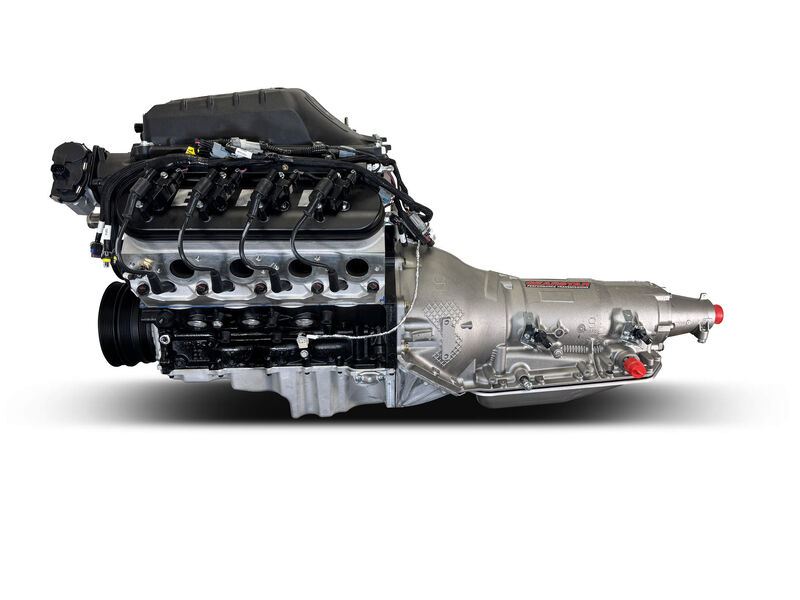

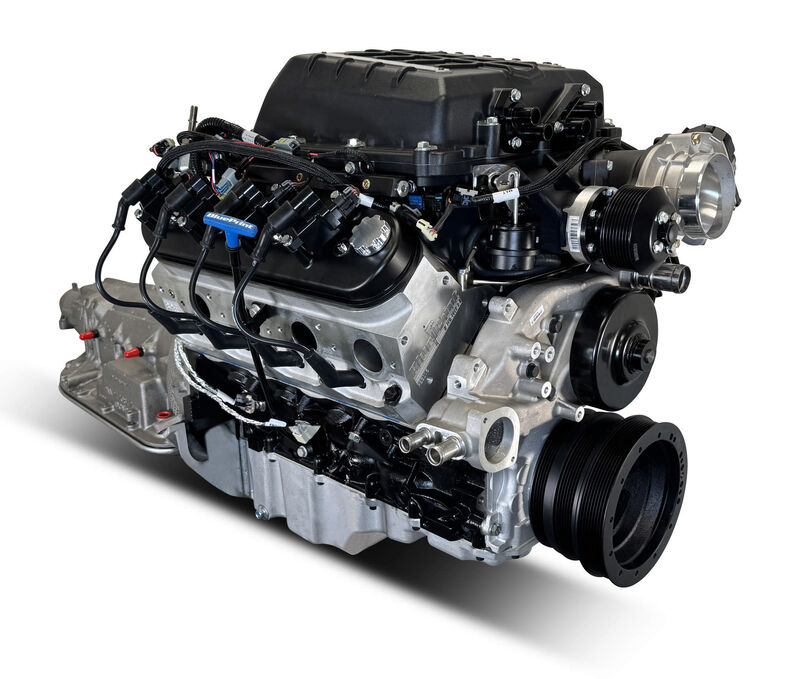

BluePrint Engines 427 c.i. GM LS Compatible Builder Series - Standard Edition - Supercharged - 4L80E Automatic Transmission. (PART #BPE-4279SCT4L8)

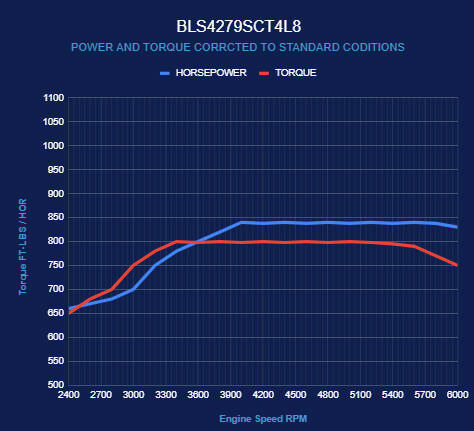

BluePrint Engines unleashes serious LS power with this 427 c.i. Builder Series package, delivering a massive 830 horsepower and paired perfectly with a tough, street-proven 4L80E automatic transmission. This combo is built for the enthusiast who wants modern reliability with race-ready punch, all controlled by the Holley Terminator X EFI system for crisp tuning, fast starts, and razor-sharp throttle response. Precision machining, premium internals, and BluePrint’s Pro-series build quality ensure the strength to handle every bit of boost, rpm, and abuse you throw at it.

For builders chasing a turnkey LS powerhouse that’s ready to hit the streets, the strip, or anywhere in between, this 427/4L80E package is pure, modern muscle, delivered.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 70cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Rotating Assembly:

• Forged 6.125" Connecting Rods
• Front and Rear Internally Balanced

Included items:

• Low Profile Rear Sump Oil Pan - BPP81074
• All Sensors Required for Engine to Run
• DBW Throttle Body - BPP12191019

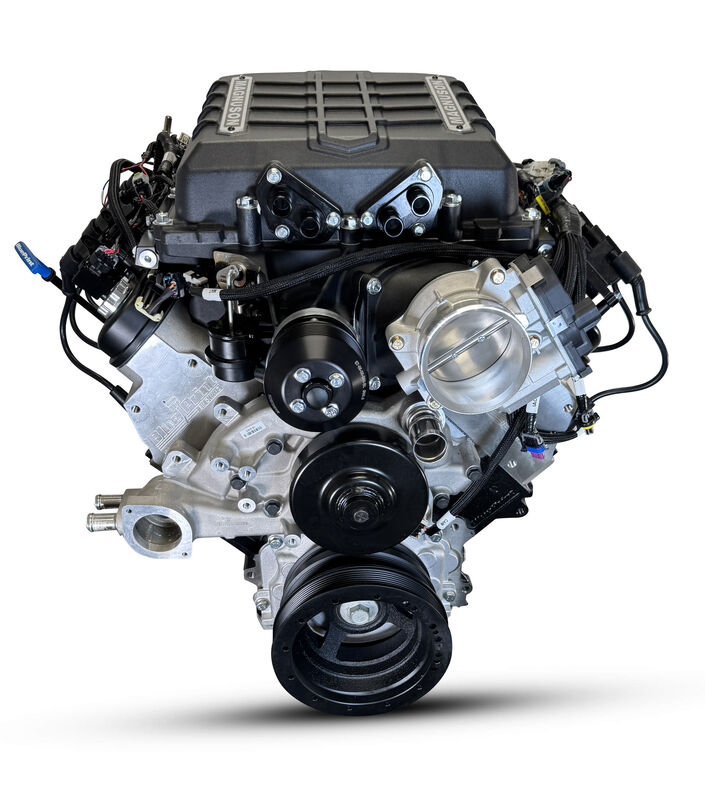

• Magnuson TVS2650 Supercharger
• Spark Plugs & Wires
• Harmonic Balancer
• Timing Cover
• Valve Covers
• Coil Packs

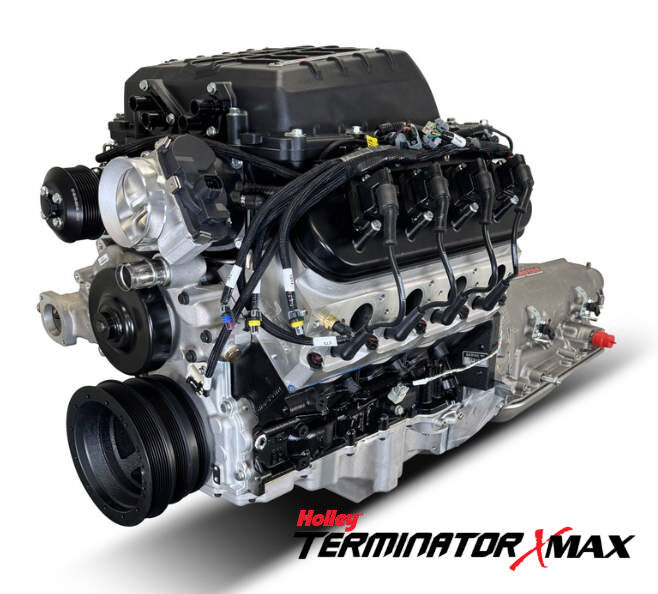

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

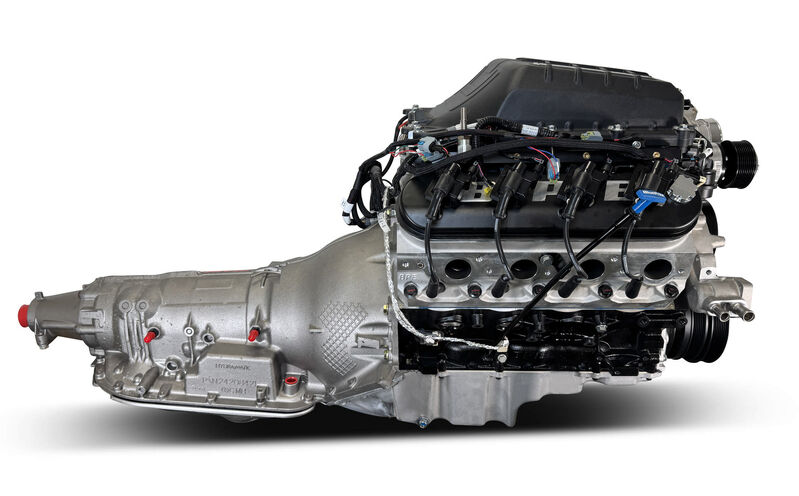

Assembled with Complete HD 4l80e Transmission Package:

• 4L80E Complete Package
• Electronic Transmission Controller Included
• 3200+ Stall Torque Converter
• Flex Plate
• Starter

4L80E Gear Ratios:

• 1: 2.482
• 2: 1.482
• 3: 1.00
• 4: 0.750
• R: 2.077

Notes:

• This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars Not for use in pollution-controlled vehicles or in dry sump applications.
• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
• Engine/Trans Package Ships assembled.
