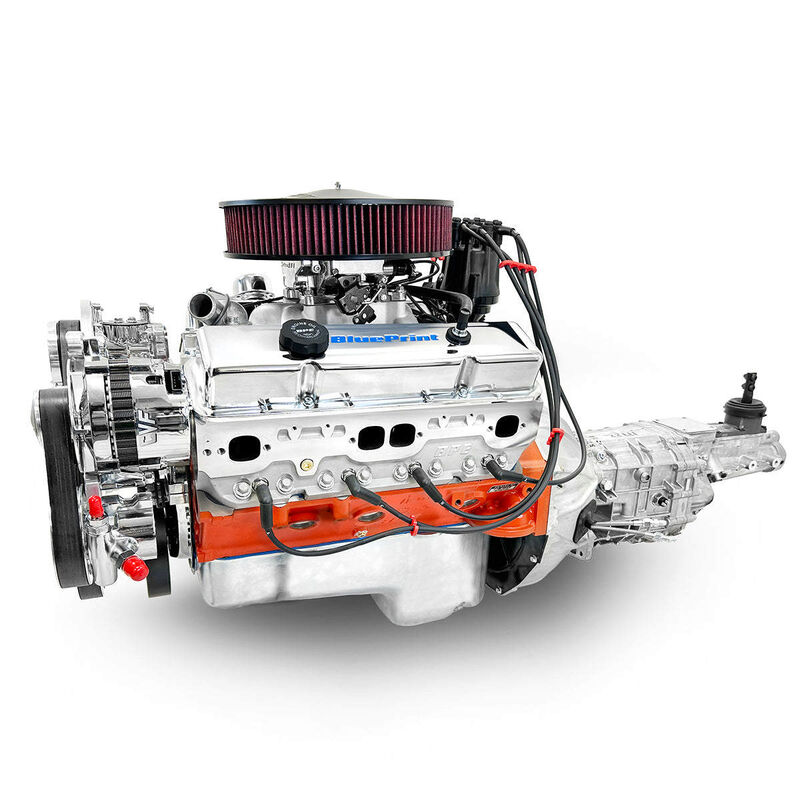

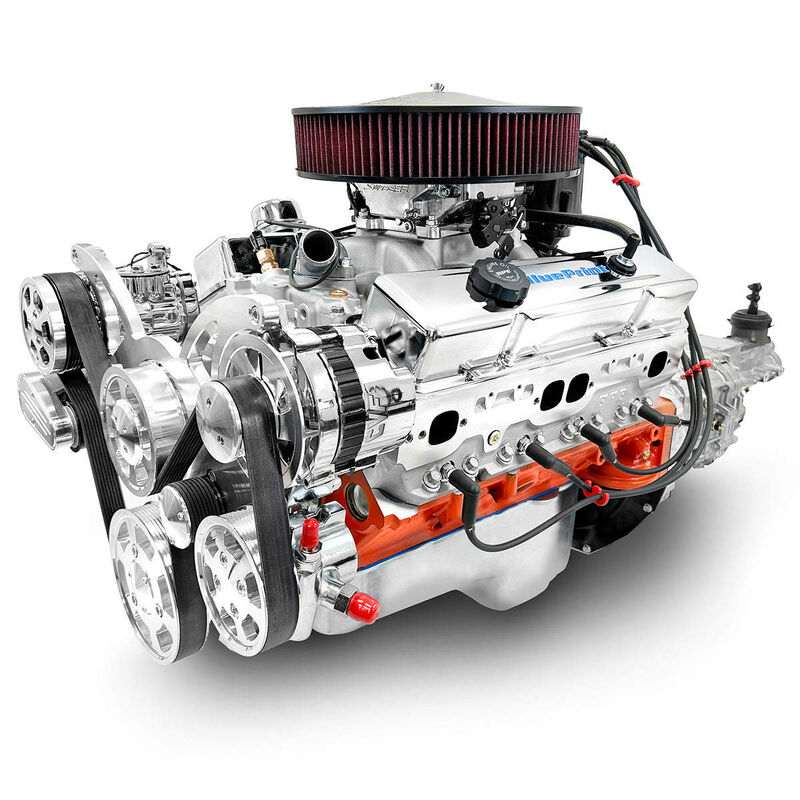

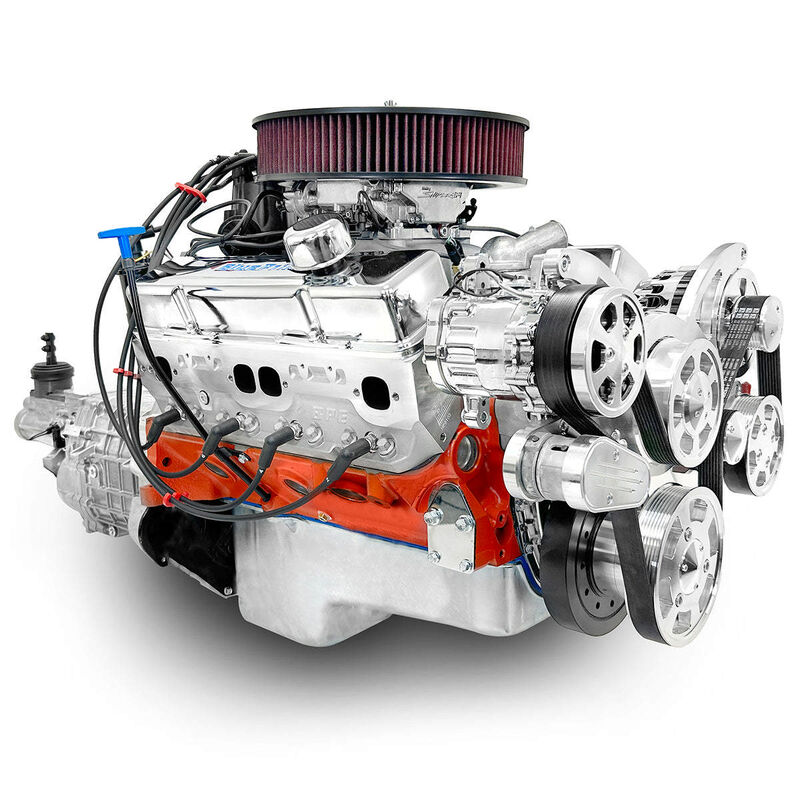

BluePrint Engines 427 c.i. GM Compatible Builder Series - Standard Edition - Fuel Injected - TKX Manual Transmission - Polished Pulley Kit. (PART #BPE-B427FKTKX)

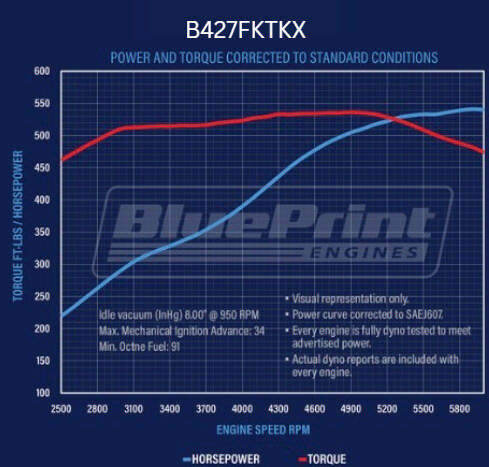

BluePrint Engines’ GM Small Block Compatible 427 c.i. Pro Series Engine paired with a TKX Manual Transmission unleashes a commanding 540 horsepower with the precision and drivability of modern fuel injection. As part of the Standard Edition Builder Series, this package includes a polished pulley kit and premium, performance-grade components, giving builders a turnkey foundation engineered for strength, reliability, and excitement. Designed for drivers who want total control, crisp shifts, and instant throttle response, this 427/TKX combo brings pro-level power and an engaging, hands-on driving experience to any street machine or custom build.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.125" Bore

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc Chamber
• 2.08" Intake / 1.60" Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Rotating Assembly:

• Forged 6.000" Connecting Rods
• Internally Balanced Front and Rear

Included items:

• Pro Series Ready Run Distributor - BPP3503BK
• Thermostat and Thermostat Housing
• Holley Sniper 2 EFI System - BPP550-510-3XX
• EFI Fuel Pump Kit - BPP5267
• BluePrint Valve Covers - BPP9518
• Spark Plugs and Wires
• Timing Cover
• Oil Pan

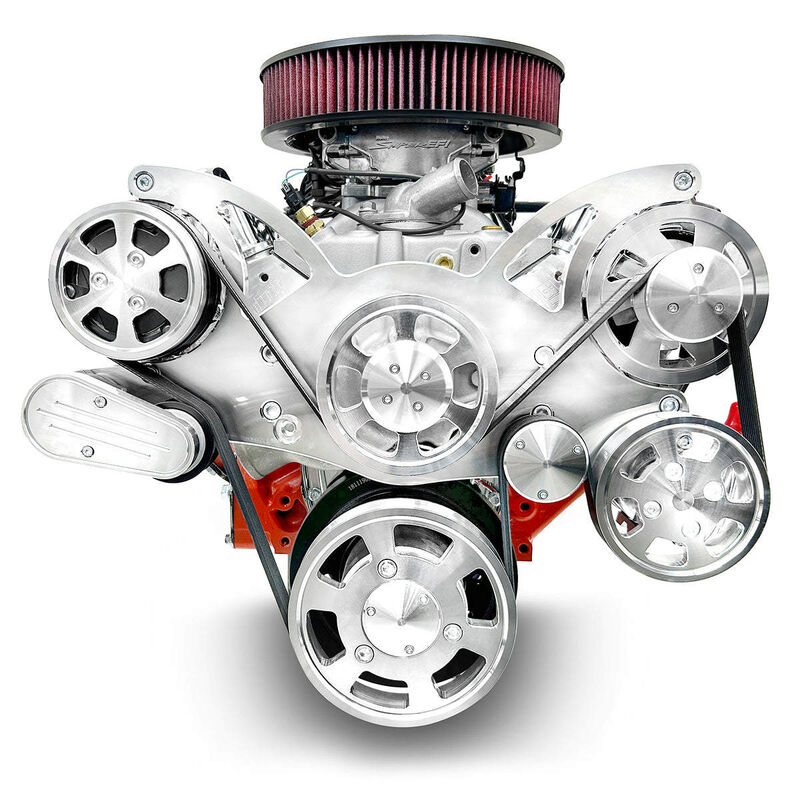

• Polished Front Accessory Drive - BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Bell Housing
• Billet Flywheel
• Starter
  • First Gear Ratio: 2.87:1
  • Second Gear Ratio: 1.89:1
  • Third Gear Ratio: 1.28:1
  • Fourth Gear Ratio: 1.00:1
  • Fifth Gear Ratio: 0.81:1

Notes:

• BPE recommends electric fans that produce 3000 cfm or more, for engines that are 400cid or less. Engines that are over 400cid BPE recommends 4000cfm or more.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Not for use in pollution-controlled vehicles.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
