BluePrint Engines 427 c.i. Ford Compatible Builder Series - Cobra Edition - Carbureted - TKX Manual Transmission - Polished Pulley Kit. (PART #BPE-BF427KTKXC)

This high-output 427 c.i. Built around a 9.5-inch deck height Windsor-based BluePrint high-strength cast iron block featuring a 4.125-inch bore, 4-bolt main caps, one-piece rear main seal, and a forged rotating assembly. Backed by BluePrint Engines’ industry-leading 30-month / 50,000-mile warranty.

Blocks:

• BluePrint Engines' High Strength Cast Iron Block
• 4-Bolt Main
• 4.125" Bore
• 1-Piece Rear Main Seal
• 9.500 Deck Height

Cylinder Heads:

• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 205cc Intake / 70cc Exhaust Runners

Rotating Assembly:

• Forged 6.250" Connecting Rods
• Internally Balanced Front and Rear

Included items:

• 870 cfm Holley Carburetor
• Ribbed Cobra Style Aluminum Valve Covers
• Pro-Series Ready Run Distributor - BPP3513BK
• Aluminum Oval Air Cleaner with Cobra Script
• Ignition Coil 45k Volt - BPP82021BK
• Front Sump Powder Coated Oil Pan
• Thermostat and Thermostat Housing
• Plug Wire Separators
• Spark Plugs - BPP7938
• Spark Plug Wires
• Timing Cover
• Oil Filter
• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro single disk clutch
• Hydraulic throw out bearing
• Steel bell housing
• Billet flywheel
• Engine guard
• Starter
• Gear Ratio:
  • First Gear Ratio: 2.87:1
  • Second Gear Ratio: 1.89:1
  • Third Gear Ratio: 1.28:1
  • Fourth Gear Ratio: 1.00:1
  • Fifth Gear Ratio: 0.81:1

Notes:

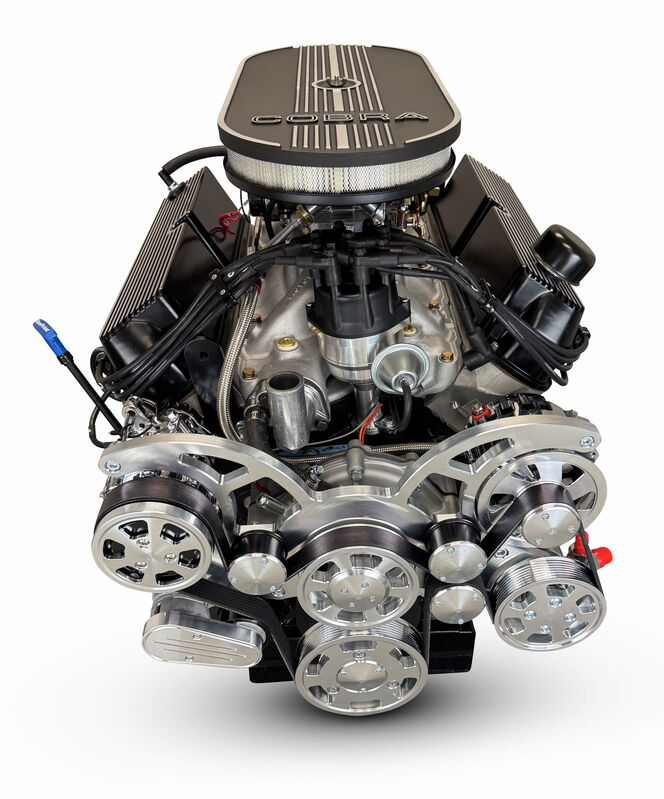

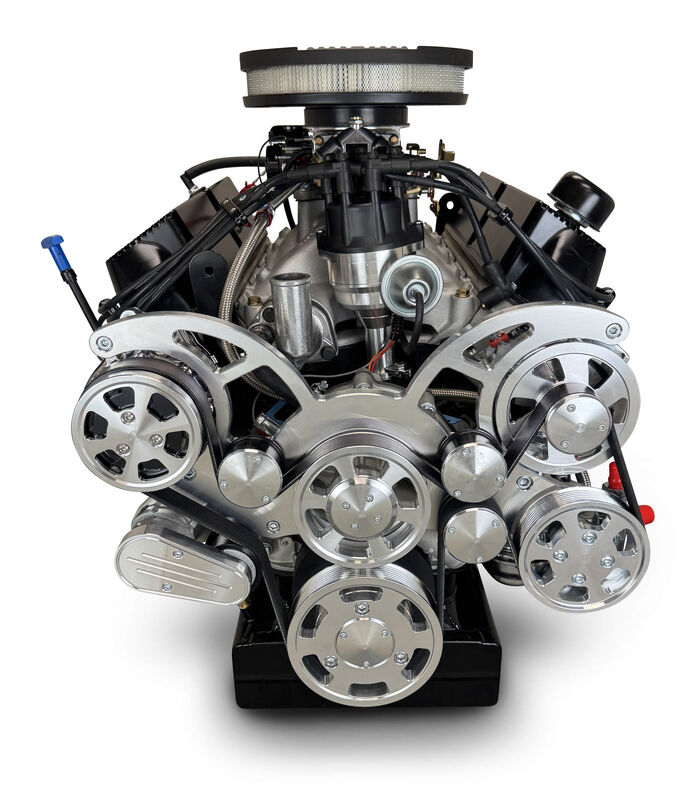

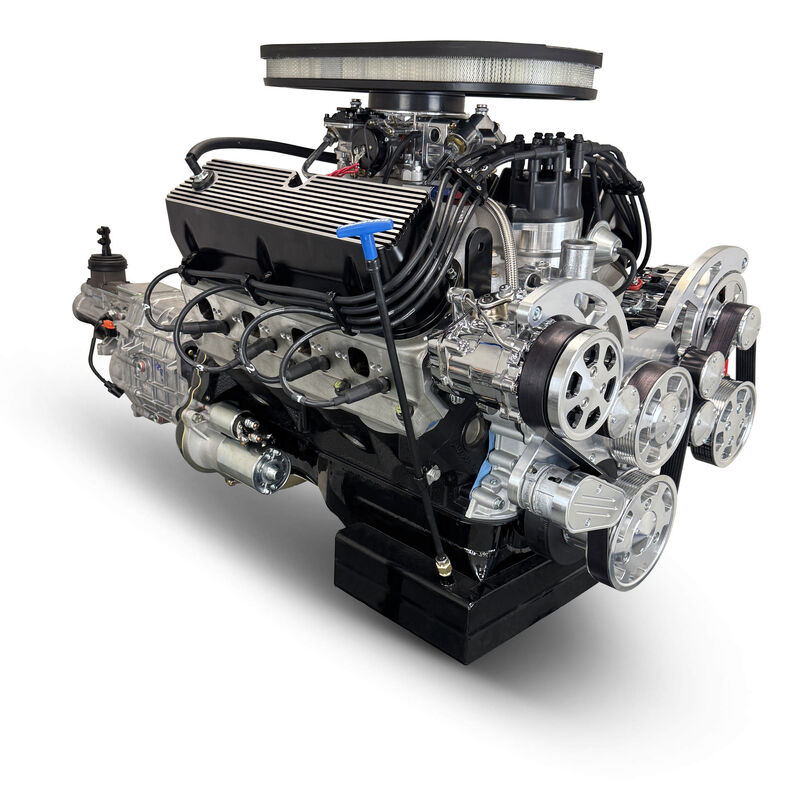

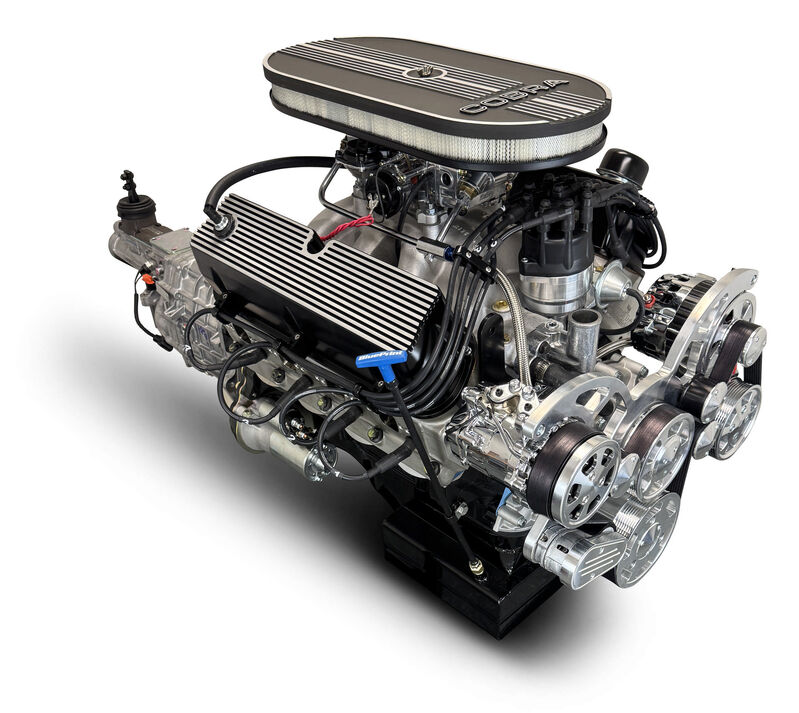

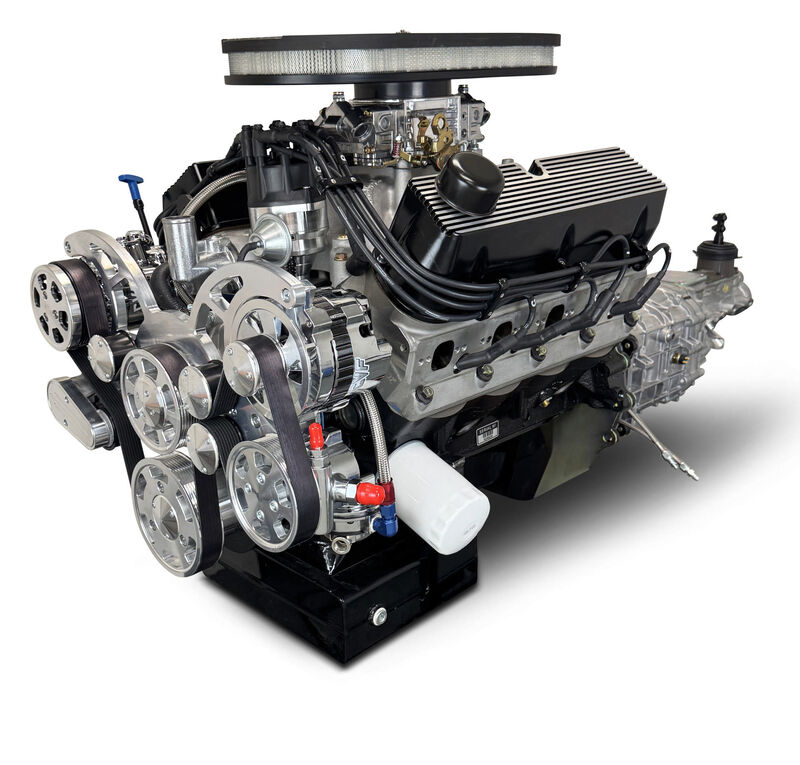

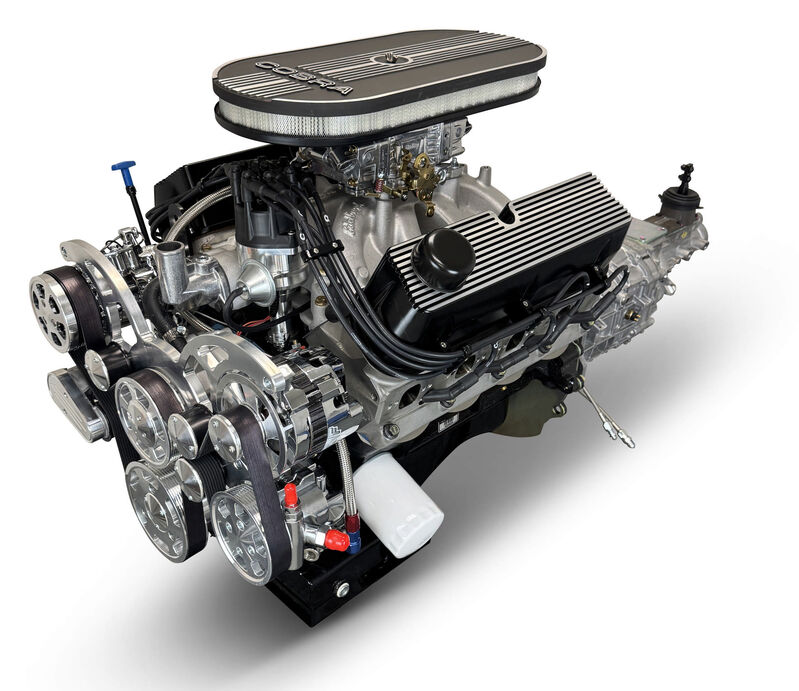

• Package Ships assembled as pictured.
