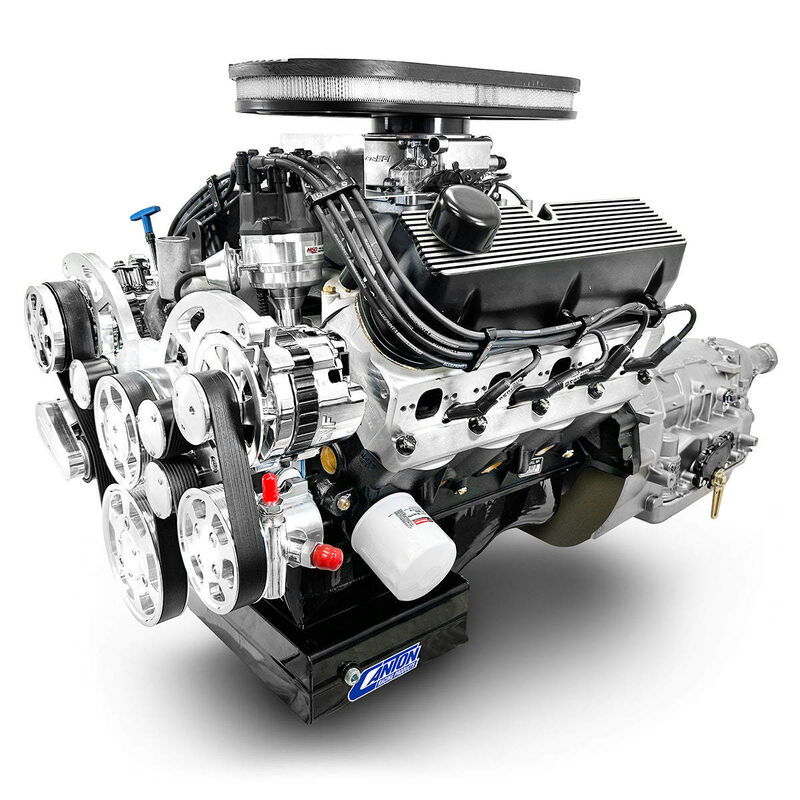

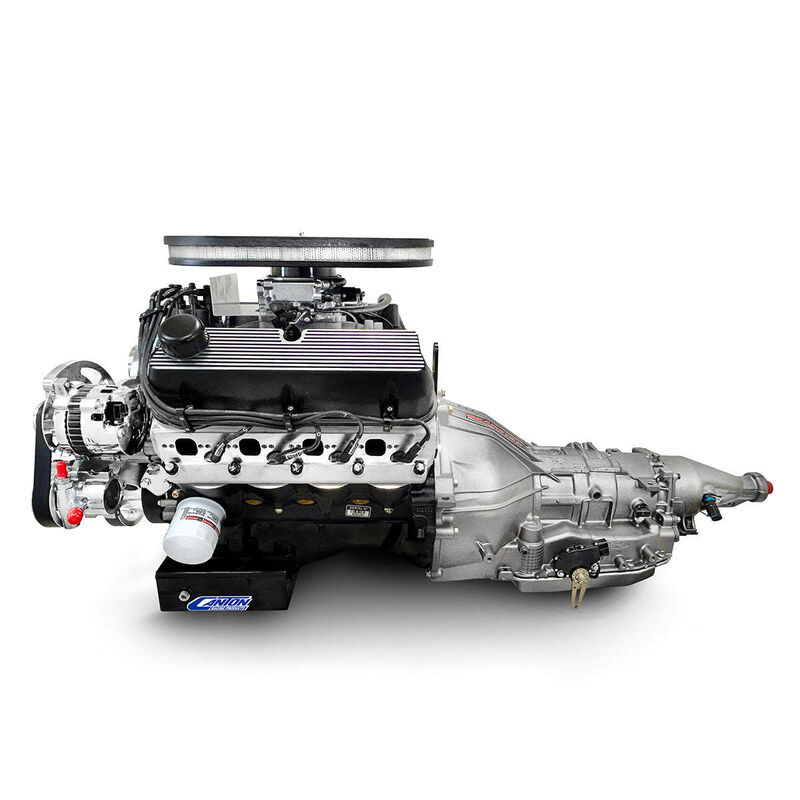

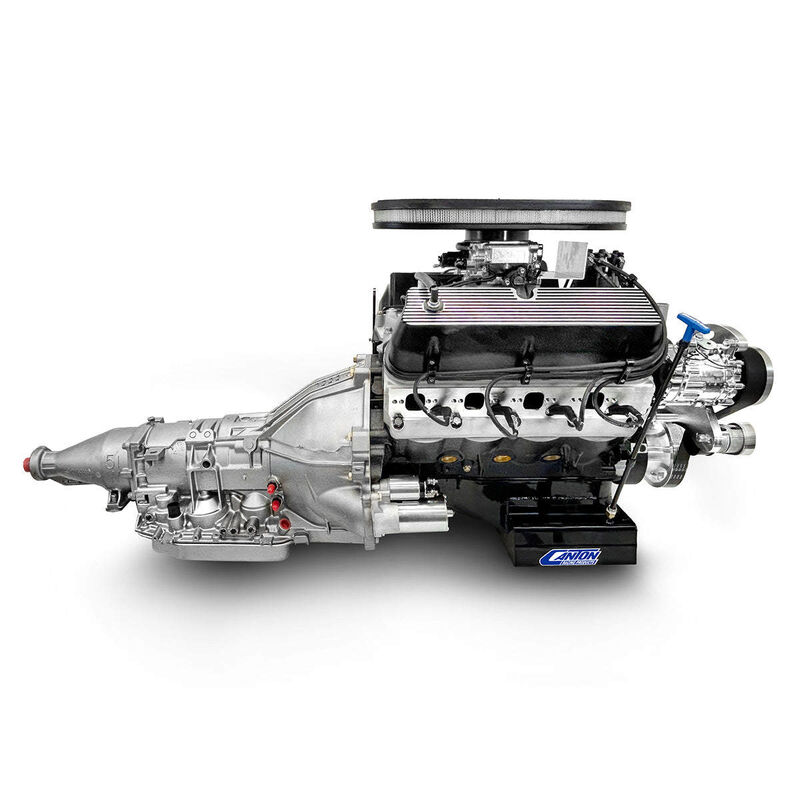

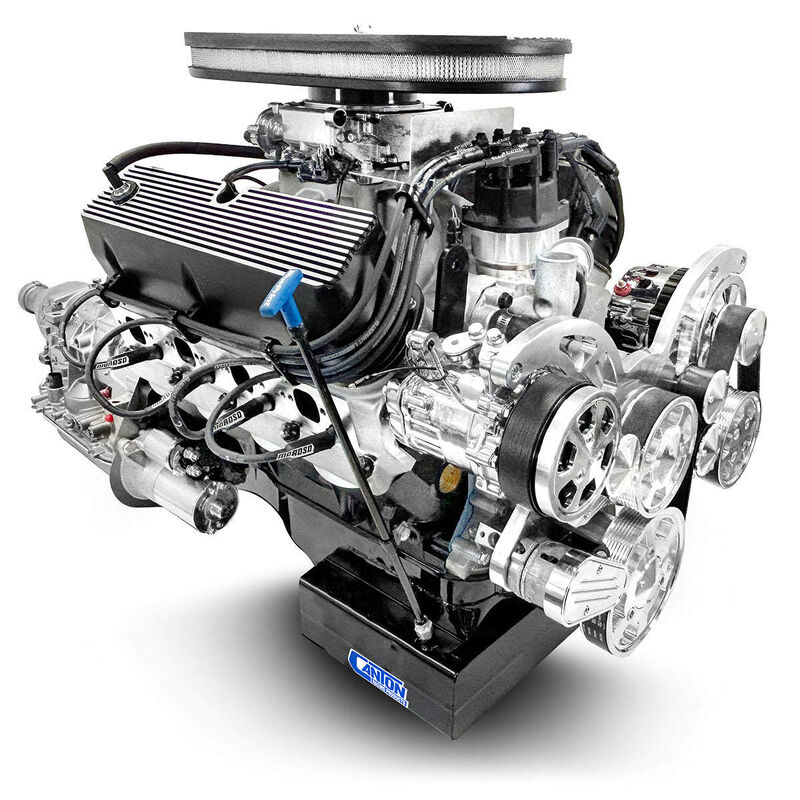

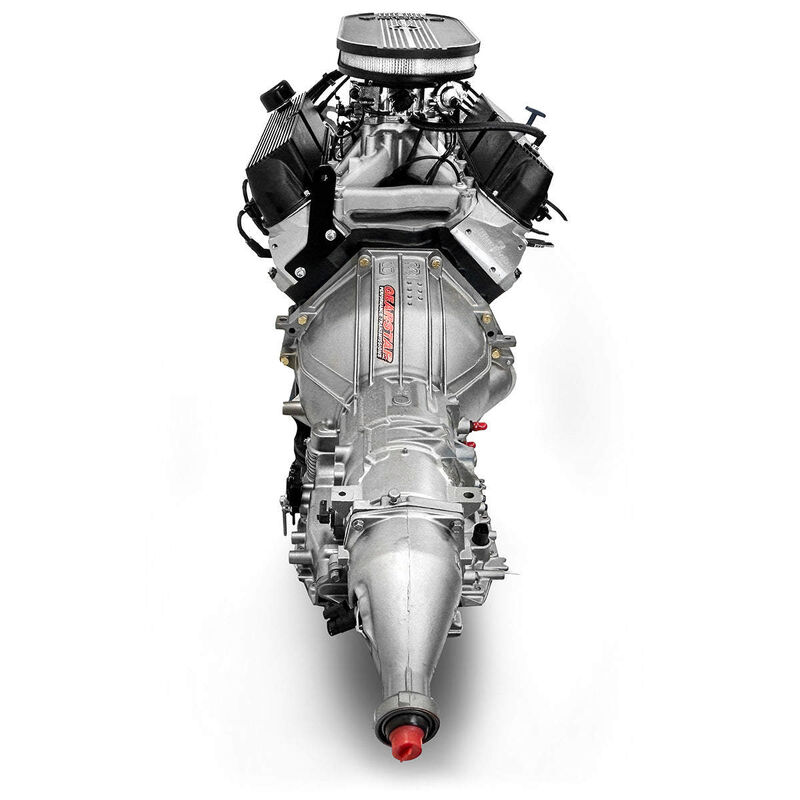

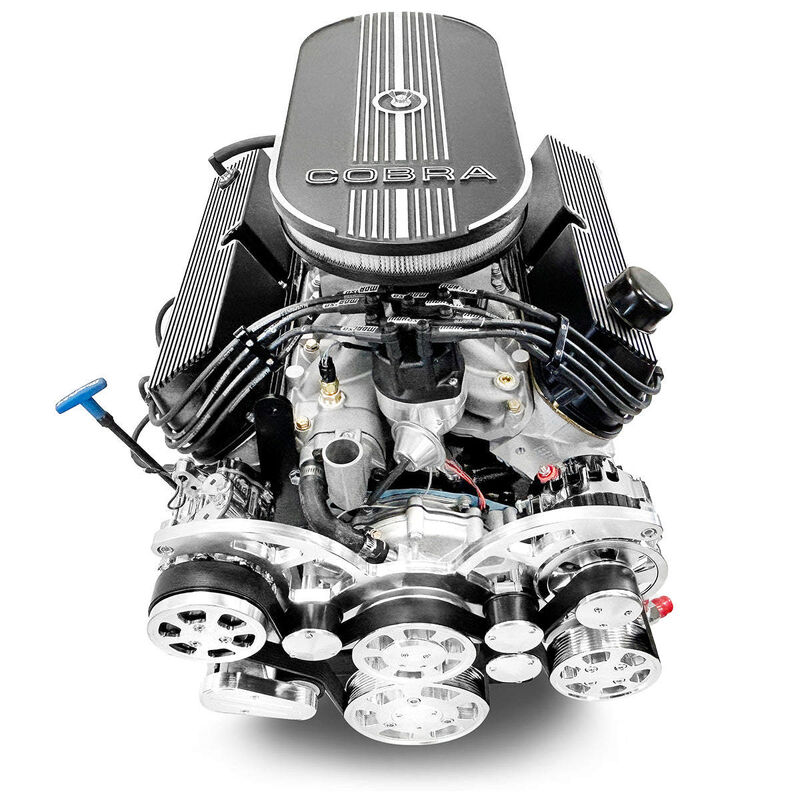

BluePrint Engines 427 c.i. Ford Compatible Builder Series - Cobra Edition - Carbureted - 4R70W Automatic Transmission - Polished Pulley Kit. (PART #BPE-BF427K4R7C)

This high-output 427 c.i. Built around a 9.5-inch deck height Windsor-based BluePrint high-strength cast iron block featuring a 4.125-inch bore, 4-bolt main caps, one-piece rear main seal, and a forged rotating assembly.

Blocks:

• BluePrint Engines' High Strength Cast Iron Block
• 4-Bolt Main
• 4.125" Bore
• 1-Piece Rear Main Seal
• 9.500 Deck Height

Cylinder Heads:

• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 205cc Intake / 70cc Exhaust Runners

Rotating Assembly:

• Forged 6.250" Connecting Rods
• Internally Balanced Front and Rear

Included items:

• Ribbed Cobra Style Aluminum Valve Covers
• Pro-Series Ready Run Distributor - BPP3513BK
• Aluminum Oval Air Cleaner with Cobra Script
• Ignition Coil 45k Volt - BPP82021BK
• Front Sump Powder Coated Oil Pan
• Thermostat and Thermostat Housing
• Holley 870 cfm Carburetor
• Plug Wire Separators
• Spark Plugs - BPP7938
• Spark Plug Wires
• Timing Cover
• Oil Filter
• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex plate
• Starter
• 4 Speed, Overdrive transmission w/Lockup
• Gear Ratio:
  • First: 2.84 :1
  • Second: 1.55 :1
  • Third: 1.00 :1
  • Overdrive: 0.70 :1
  • Reverse: 2.32 :1

Notes:

• Package Ships assembled as pictured.
• Does not include TPS, as varies with carb or EFI type.
• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
