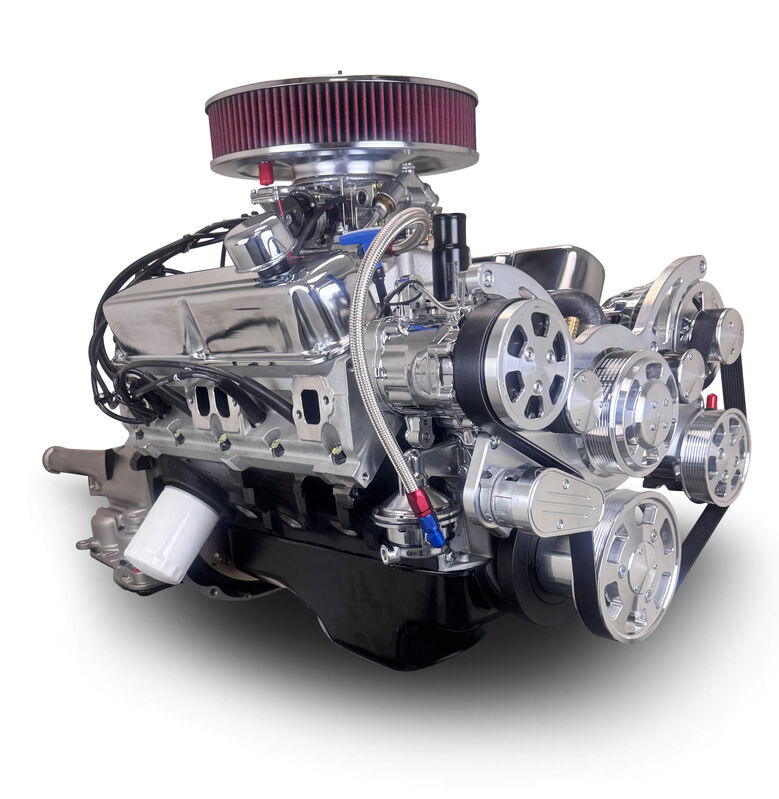

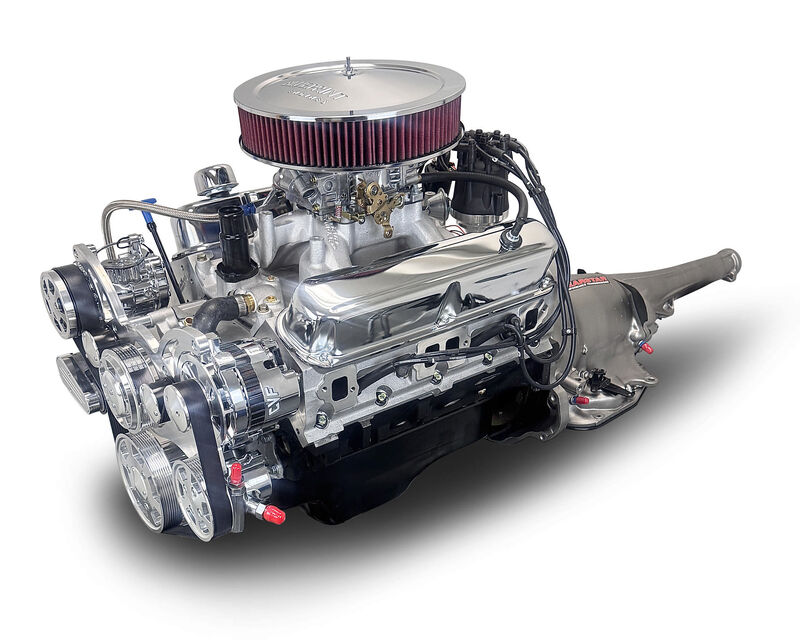

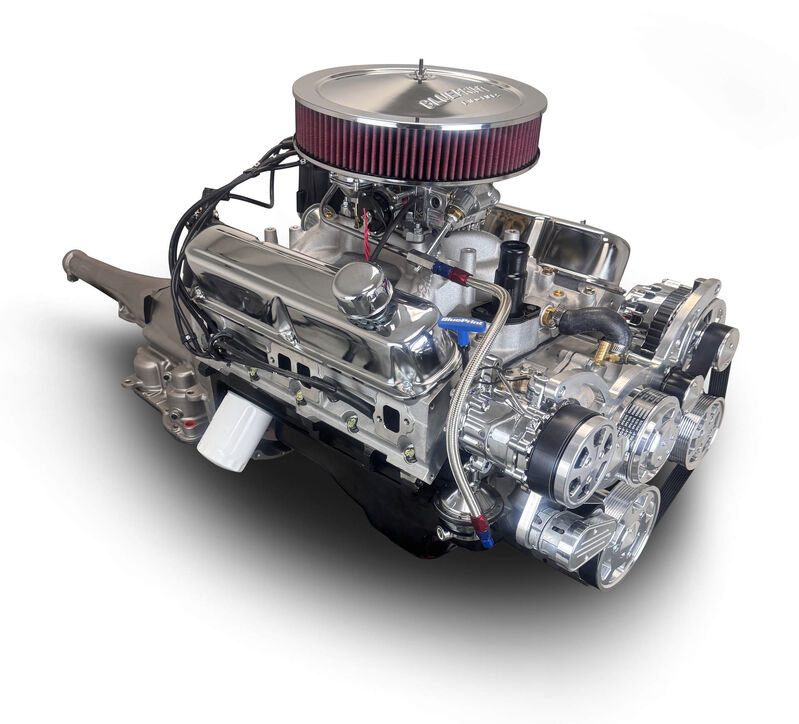

BluePrint Engines 408 c.i. Chrysler Compatible Builder Series - Standard Edition - Carbureted - 727 Automatic Transmission - Polished Pulley Kit. (PART #BPE-BC408K727)

The package includes all the essentials—thermostat and housing, fuel pump and line, spark plugs and wires, starter, distributor, air cleaner, harmonic balancer, timing cover, valve covers, oil pan, and a high-flow water pump. A polished front accessory drive system finishes it off with show-quality style, including a Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor, making this a complete, ready-to-run drivetrain solution for any serious street build.

Blocks:

• Hand-Picked Seasoned Magnum Block
• Square and Parallel Decked
• Align Honed Main Bearing Bore
• Cylinders Honed on Computer Controlled Machine to Within .0002 Straightness and Roundness
• Cylinders are Sonic Tested for Thickness
• 2-Bolt Main
• 4.040" Bore
• 2-Piece Rear Main Seal
• Mech Fuel Pump Provision: Yes

Cylinder Heads:

• Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
• Aluminum Roller Rockers
• 2.02" intake / 1.60" Exhaust Valves
• 176cc intake / 75cc Exhaust Runners

Rotating Assembly:

• Forged Magnum 6.123" Connecting Rods w/ 150,000 PSI Bolts
• Externally Balanced Front and Rear

Included items:

• Holley 750cfm Classic Carburetor - BPP080508S
• Pro-Series Ready Run Distributor - BPP3603BK
• Ignition Coil 45k Volt - BPP82021BK
• Thermostat and Thermostat Housing
• BluePrint Engines Dipstick - BPP9224
• 14" BluePrint Logo'd Air Cleaner
• Spark Plugs - BPP7938
• Fuel Pump - BPP6270
• Oil Pump and Oil Pan
• Spark Plug Wires
• Tall Valve Covers
• Timing Cover
• Fuel Line
• Polished Front Accessory Drive Water Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

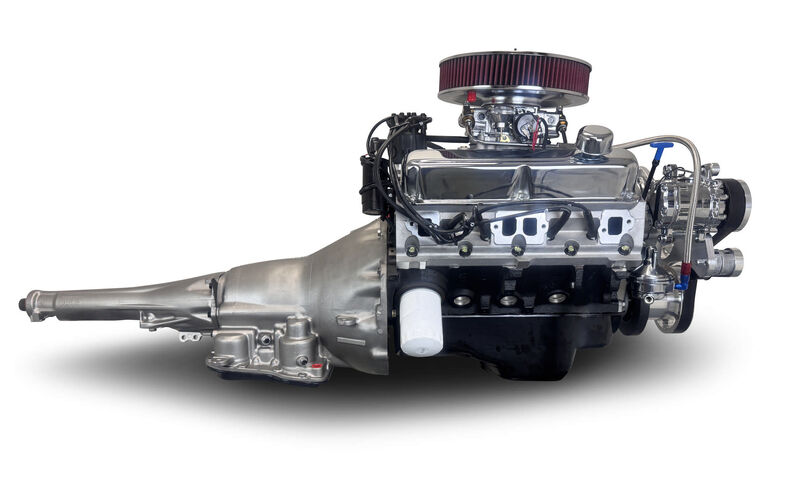

Assembled with Complete Heavy Duty, 727 Automatic Transmission Package:

• 10in 2200-2400 Stall Torque Converter
• Mini Starter
• Gear Ratio:
  • 1st Gear: 2.45:1
  • 2nd Gear: 1.45:1
  • 3rd Gear (Direct Drive): 1.00:1
  • Reverse: 2.21:1

Notes:

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
