BluePrint Engines 400 c.i. GM Compatible Builder Series - Standard Edition - Carbureted - 700R4 Automatic Transmission - Polished Pulley Kit. (PART #BPE-B400K700)

BluePrint Engines’ GM Small Block Compatible 400 c.i. As part of the Standard Edition Builder Series, this turnkey package features a polished pulley kit and premium components, blending reliability, power, and show-ready style. Designed for enthusiasts who want instant throttle response, effortless drivability, and traditional small-block appeal, this engine and transmission combo brings high-performance excitement to any build, ready to fire up and hit the road with confidence.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.125" Bore

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc Chamber
• 2.08" Intake / 1.60" Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Rotating Assembly:

• Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Internally Balanced Front - Externally Balanced Rear

Included items:

• Holley 750cfm Classic Carburetor - BPP080508S
• Pro Series Ready Run Distributor - BPP3503BK
• Thermostat Housing - BPP10108470
• Mechanical Fuel Pump - BPP61073
• Thermostat - BPP180TS
• Spark Plugs - BPP793
• Plug Wire Separators
• Spark Plug Wires
• Valve Covers
• Timing Cover
• Oil Filter
• Oil Pan
• Polished Front Accessory Drive - BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

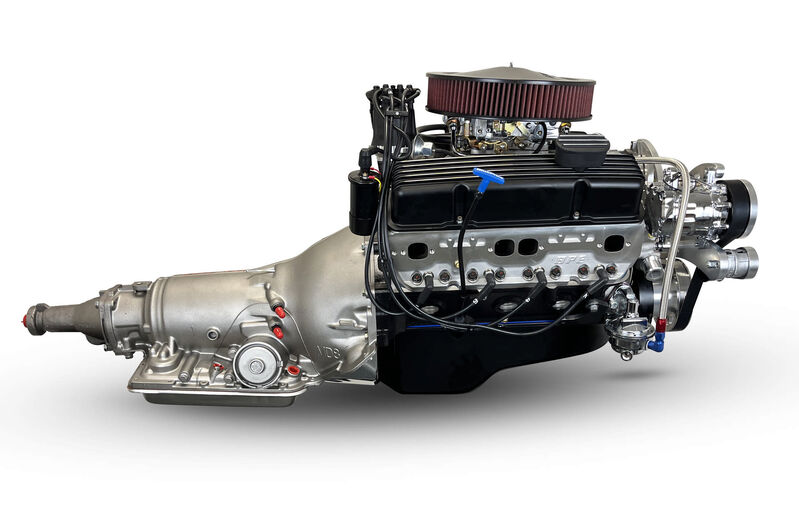

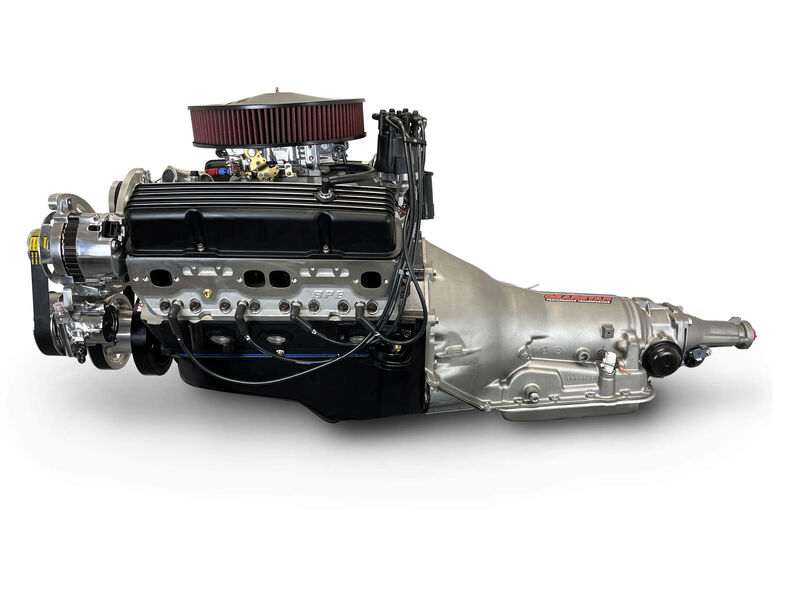

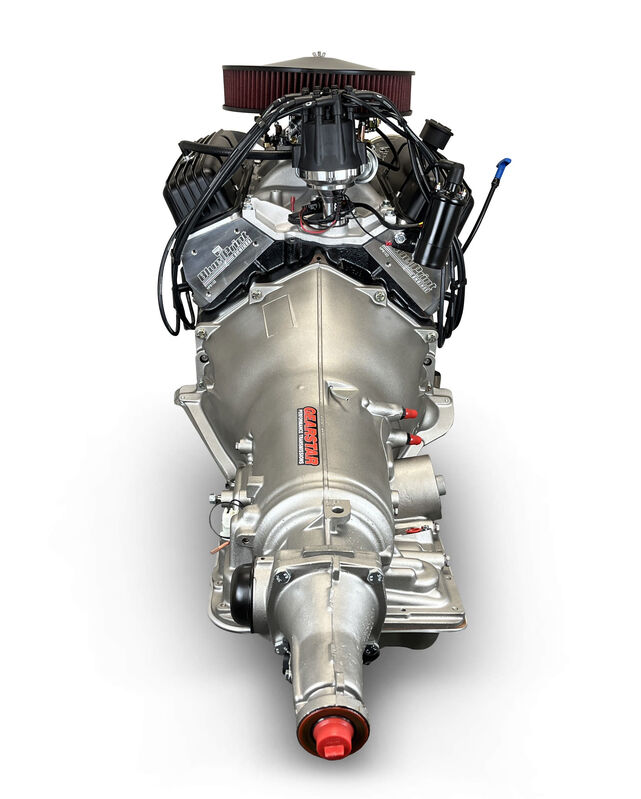

Assembled with Complete 700r4 Automatic Transmission Package:

• 700R4 Complete Package
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear, or sender housing.
• Package Ships assembled as pictured.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
