BluePrint Engines 383 c.i. GM Compatible Builder Series - Truck Edition - Carbureted - 700R4 Automatic 4WD Ready Transmission - Polished Pulley Kit. (PART #BPE-B383K4WD)

This package features a carbureted engine.

BluePrint Engines’ GM Small Block Compatible 383 C.I. Truck Edition delivers classic V8 grunt tailored specifically for 4WD builds, paired with a 700R4 automatic transmission that’s fully 4WD-ready straight out of the crate. This carbureted combo brings rugged torque, dependable street manners, and the unmistakable throttle response that truck enthusiasts love. Finished with a premium polished pulley kit and built with the quality, precision, and reliability BluePrint is known for, this Truck Edition package gives builders a turnkey powertrain solution engineered to handle work, play, and every mile in between.

Blocks:

• BluePrint Engines High Strength Cast Iron Block
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000" Bore

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Rotating Assembly:

• OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Externally Balanced Front and Rear

Included items:

• Holley 750cfm Classic Carburetor - BPP080508S
• Pro Series Ready Run Distributor - BPP3503BK
• Thermostat Housing - BPP10108470
• 14" Air Cleaner - BPP4304BK
• Thermostat - BPP180TS
• Spark Plugs - BPP7938
• Plug Wire Separators
• Spark Plug Wires
• Timing Cover
• Valve Covers
• Oil Filter
• Oil Pan
• Polished Front Accessory Drive - BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete Transfer Case Ready 700r4 Automatic Transmission Package:

• 700R4 Complete Package. Features 4wd 27 Spline Stub Shaft, and Transfer Case Ready, 4wd Case.
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• Our rule of thumb should be for a small 400 cubic inch and less you need 3000 cfm, over that you need 4000 cfm.

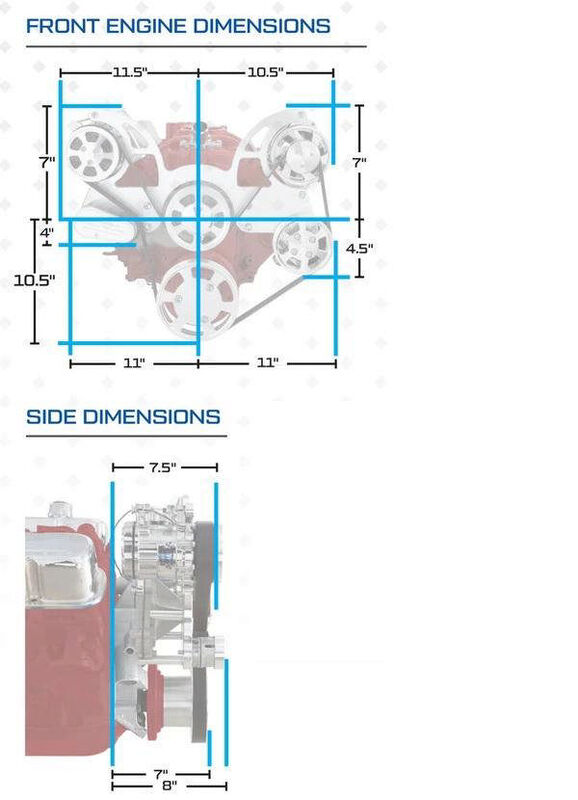

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

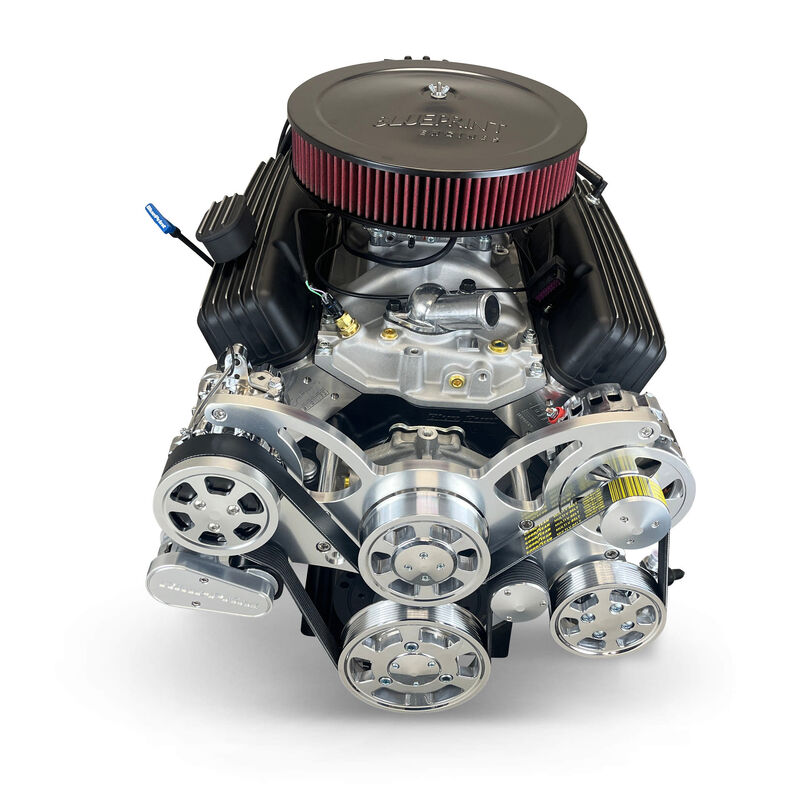

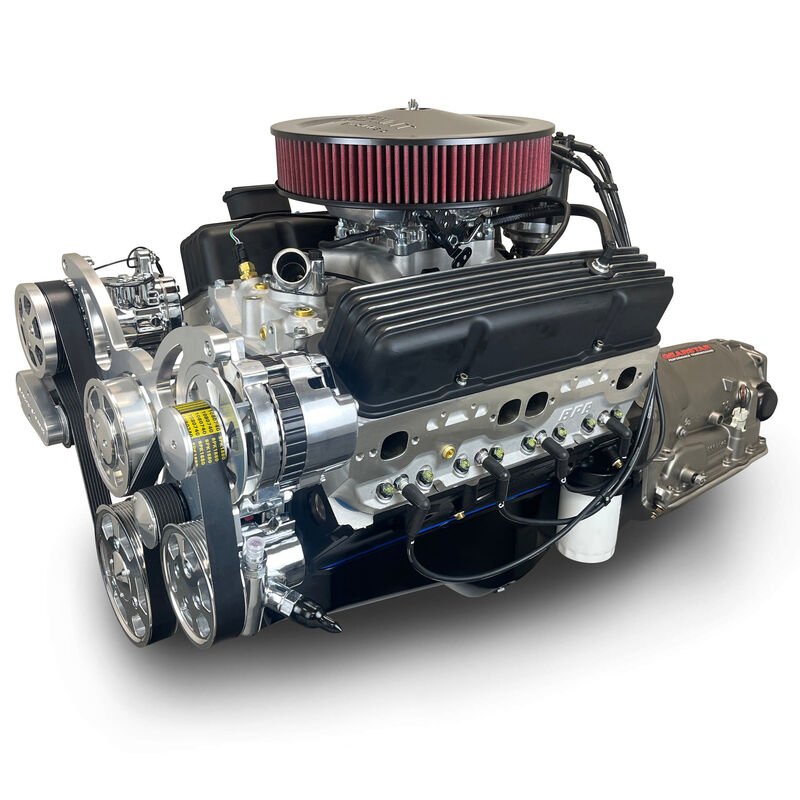

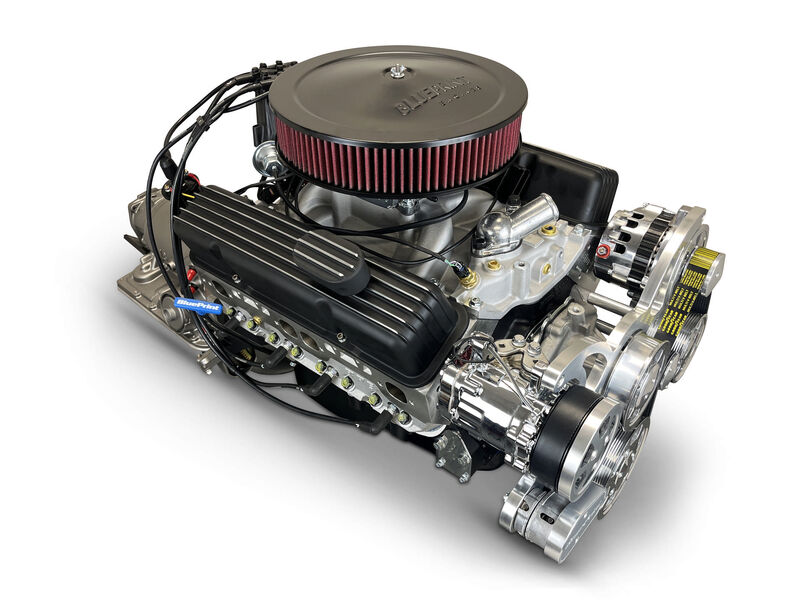

• Package Ships assembled as pictured.
• Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear or sender housing.
• Does not include a 2wd tail housing. Will have extended 4wd output shaft, designed for transfer case to bolt directly to transmission case.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
