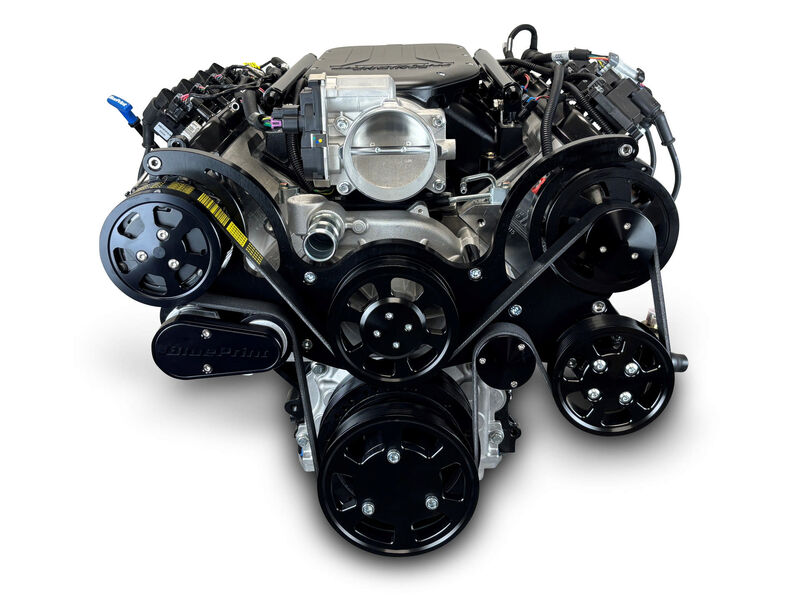

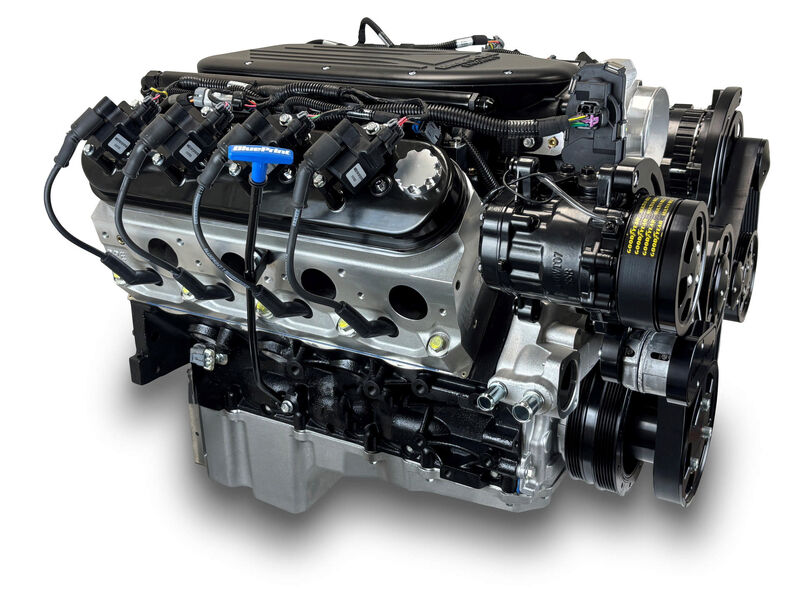

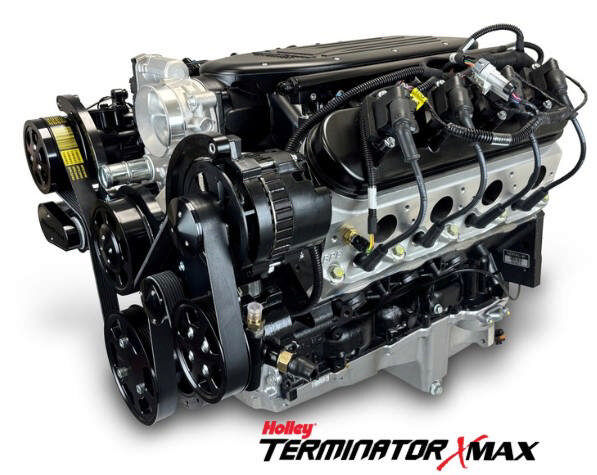

BluePrint Engines 376 c.i. GM LS Compatible - Deluxe Dressed - Fuel Injected - Black Pulley Kit (PART #BPE-S37681CTFKB)

Fuel delivery is seamless thanks to the injectors and fuel rail kit, feeding into the LS3 cast aluminum intake manifold. A drive-by-wire throttle body and Holley Terminator X Max system provide precise control and modern tuning capabilities. Completing the setup are essentials like the LS swap oil pan, water pump, and gas pedal—making this engine not just powerful, but fully prepped for a clean, efficient swap into your next build. Adding a black front pulley kit with at LS2 style water pump, power steering pump with a remote reservoir, 140-amp alternator, and an air conditioning compressor.

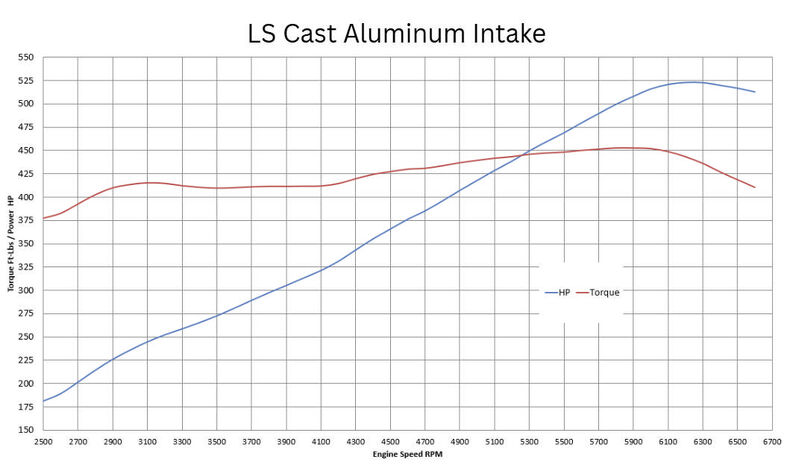

The 2-piece BluePrint low profile intake manifold is perfect for factory or low angle hood designs and works great from 2200-8000 RPM range. The 2-piece design is perfect for periodic clean up or intake manifold porting and is capable of handling up to 600 horsepower.

Blocks:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.0662" Bore
• 6-Bolt Main

Cylinder Heads:

• BluePrint LS3 Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Included items:

• Drive by Wire Throttle Body - BPP12191019
• LS Swap Oil Pan - BPP81073
• Spark Plugs & Wiring
• Harmonic Balancer
• Timing Cover
• Valve Covers
• Coil Packs
• Gas Pedal
• Black Pulley Kit
  • 1- Wire 140amp Alternator
  • Peanut Style Air Conditioning Compressor
  • Type II Power Steering Pump with Remote Reservoir

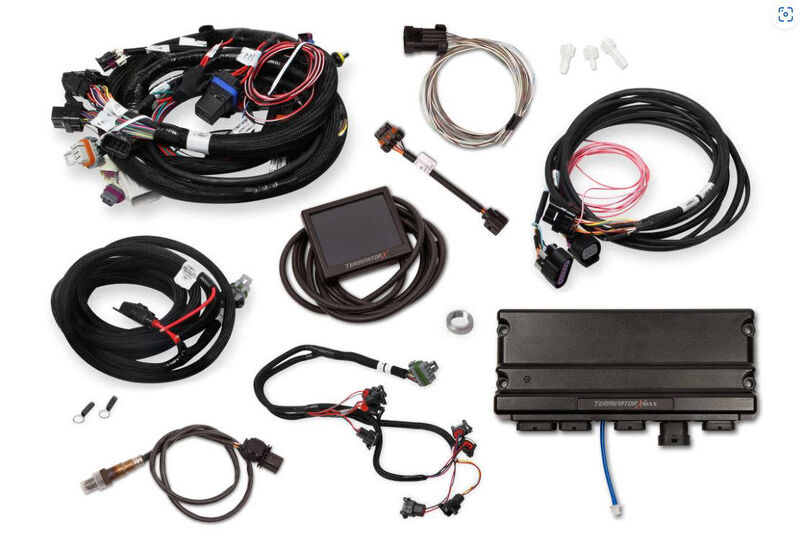

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

Notes:

• Please note, It is not necessary to run the Holley setup wizard, as this will erase the existing calibration loaded by BluePrint Engines. The ecu is fully unlocked and tunable for further adjustments once installed in customer vehicle.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
• Not for use in pollution-controlled vehicles or in dry sump applications
