BluePrint Engines 376 c.i. GM LS Compatible Builder Series - Standard Edition - Fuel Injected - ZF AutomaticTransmission - Polished Pulley Kit (PART #BPE-BLS3763KZF)

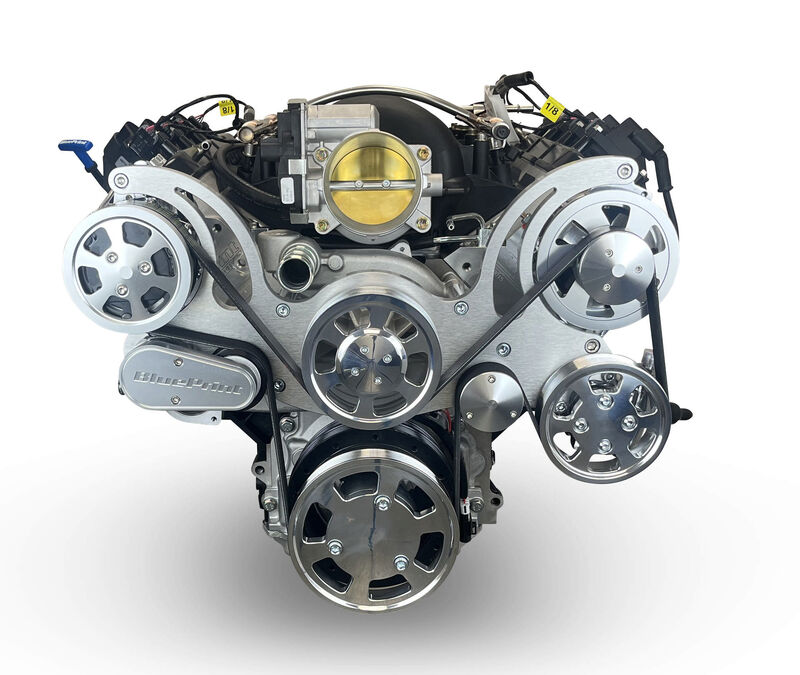

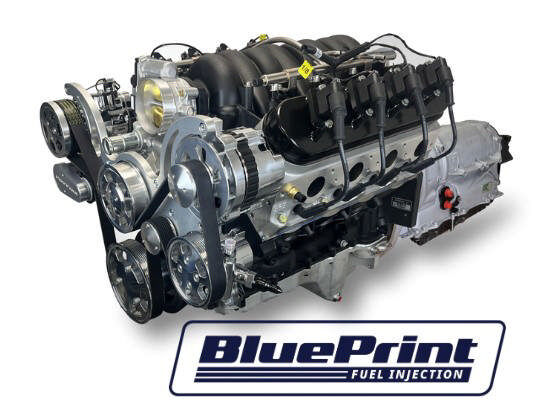

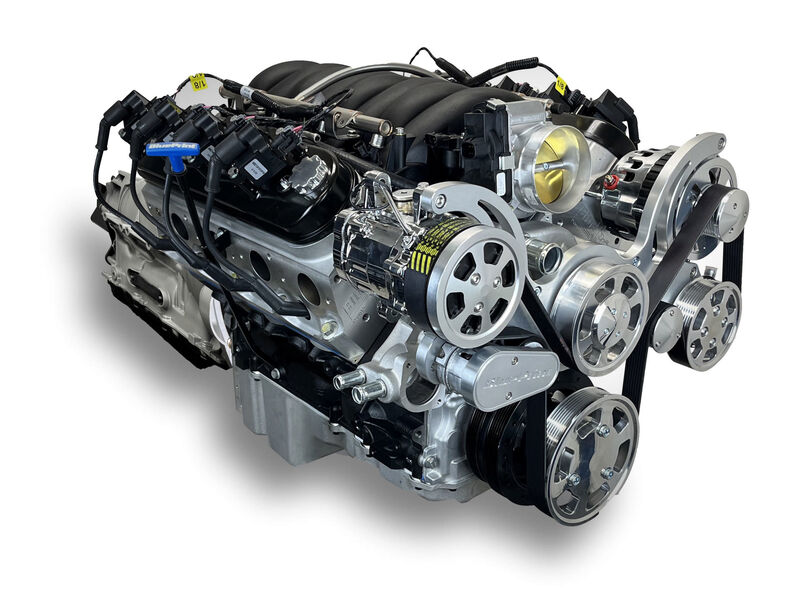

BluePrint Engines Builder Series pairs a GM LS-compatible 376 cubic-inch engine with the advanced ZF 8-speed automatic transmission for a seamless, turnkey solution. The ZF 8HP70 transmission delivers lightning-fast 200ms shift times, lightweight internals, and a wide 7.0:1 gear spread, providing dual-clutch-like responsiveness with the refinement of a modern automatic. Designed for pro-touring builds, Restomods, and high-performance street machines, this package comes complete with installation hardware and the peace of mind of BluePrint’s unmatched customer support.

Blocks:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.0662" Bore
• 6-Bolt Main

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Included items:

• LS Swap Oil Pan - Windage Tray - Pick Up Screen
• BluePrint Engines Complete Harness and ECU Kit
• BluePrint Engines Fuel Injectors and Rail
• DBW Throttle Body - BPP12191019
• Throttle Pedal, and Sensors
• Harmonic Balancer
• Custom Shifter
• Coil Packs

ZF Automatic Transmission Package:

• Fully Electronic Modern Shifting Strategy
• Maintenance Free for the Life of the Vehicle
• Fully Calibrated
• Manual Mode
• Shift Times of 0.2 Seconds
• Transmission Gear Ratios:
  • First Gear Ratio: 4.714
  • Second Gear Ratio: 3.143
  • Third Gear Ratio: 2.106
  • Fourth Gear Ratio: 1.667
  • Fifth Gear Ratio: 1.285
  • Sixth Gear Ratio: 1.000
  • Seventh Gear Ratio: 0.839
  • Eighth Gear Ratio: 0.667

Included items:

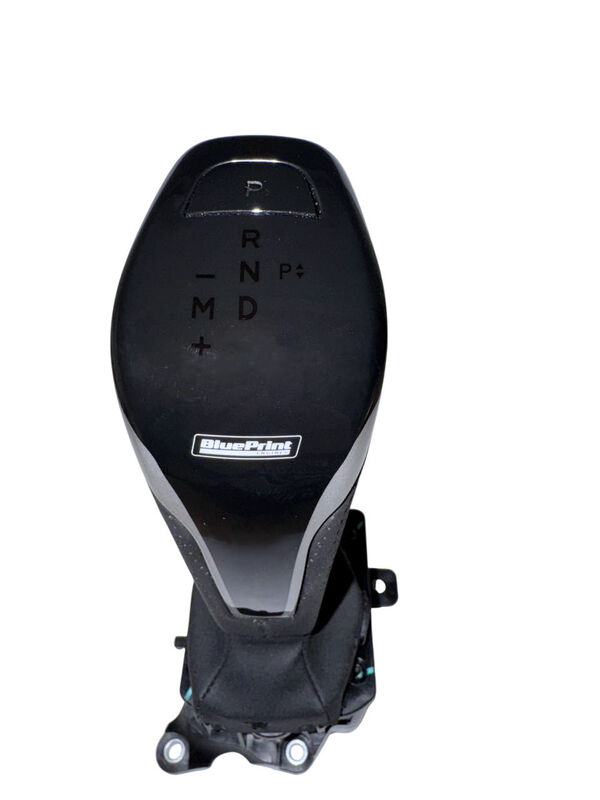

• BPE Electronic Shifter
• Bell Housing
• Transmission Oil Cooler
• Oil Cooler Adapter
• Oil Cooler Fittings and Hose Kit
• Transmission Crossmember Mount
• 1350 U-Joint Yoke Adapter
• Park Pawl Release Handle

Notes:

• We recommend the BPP8HPZFKIT for you ZF transmission cooling needs.
• Due to the many factors influencing the service life of transmissions in individual operation, ZF recommends an oil change after 150,000 km for its transmission. In operating conditions with high temperatures and loads, or with unknown vehicle us in the past, it can make sense to change the transmission oil at shorter intervals.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars Not for use in pollution-controlled vehicles or in dry sump applications.
• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
• Engine/Trans Package Ships assembled.
