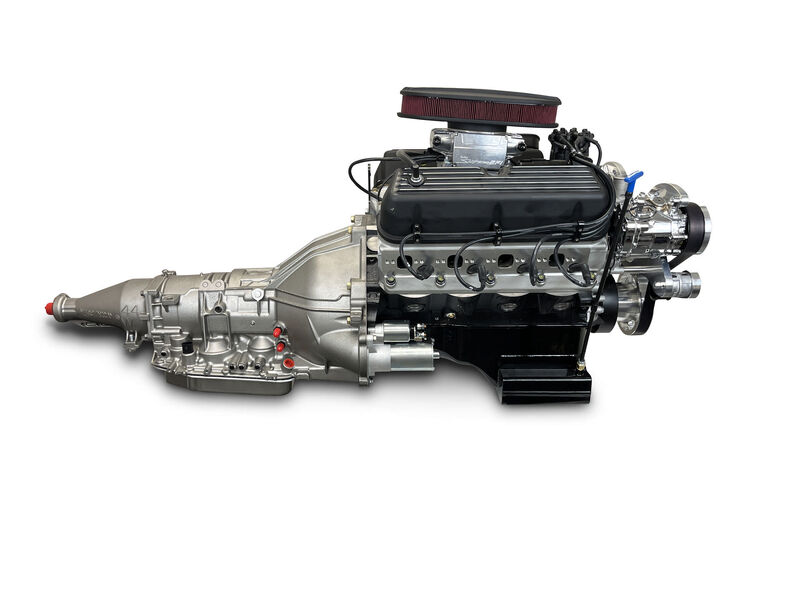

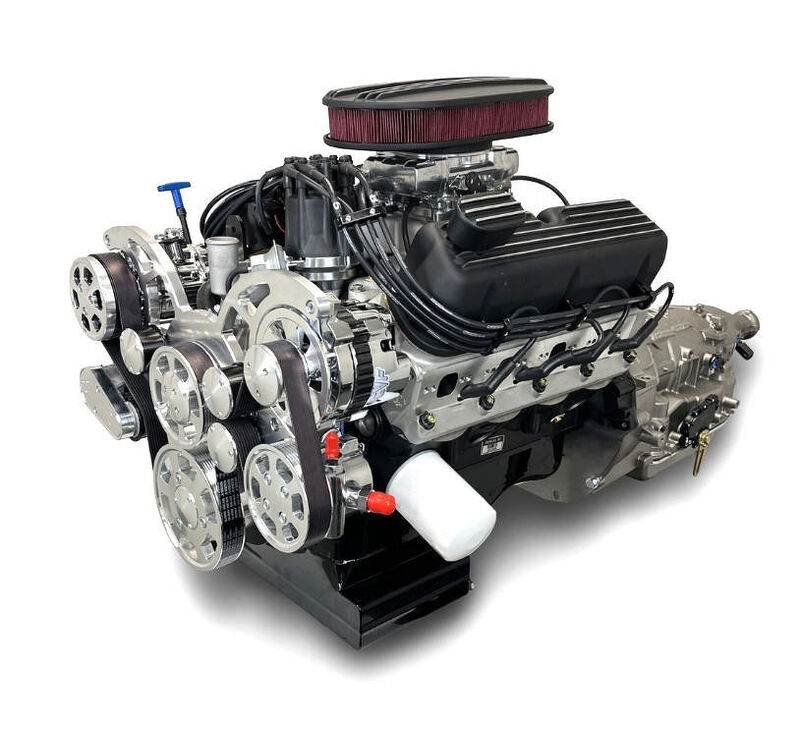

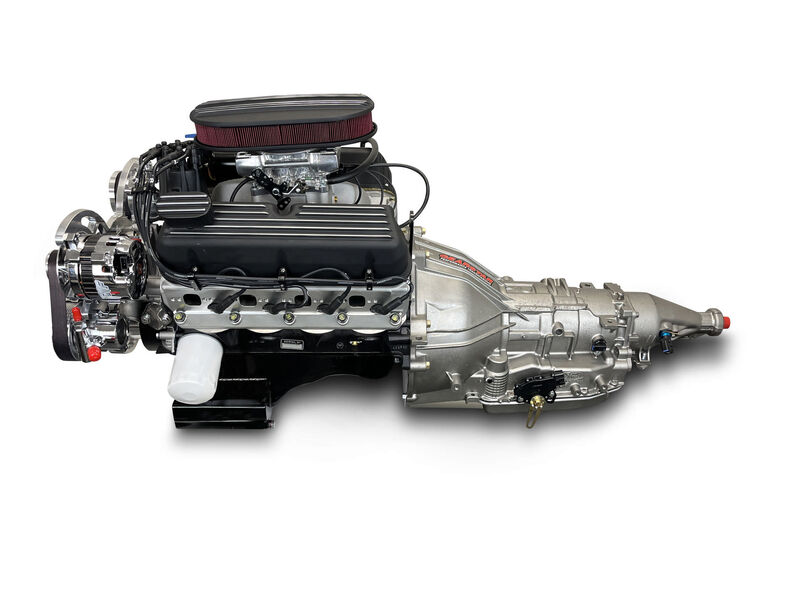

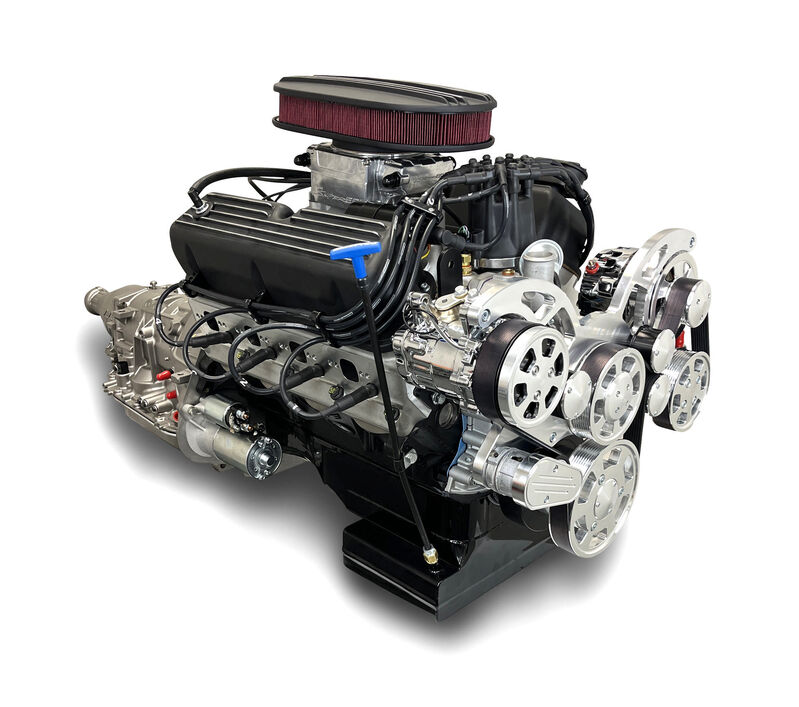

BluePrint Engines 347 c.i. Ford Compatible Builder Series - Standard Edition- Fuel Injected - 4R70W Automatic Transmission - Polished Pulley Kit. (PART #BPE-B347FK4R7)

Featuring a Holley Sniper 2 EFI system and EFI fuel pump kit, it offers reliable starts, smooth throttle response, and easy tuning with no carb adjustments required. The combination of a performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer ensures strong, consistent power from idle to high RPM. The polished front accessory drive adds a clean, professional look under the hood, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide complete front-end function.

Blending proven Ford V8 compatible power with modern electronic fuel injection and a fully equipped accessory drive system that’s built to perform and look great doing it.

Blocks:

• BluePrint Engines High Strength Cast Iron block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 65cc Exhaust Runners

Rotating Assembly:

• Forged I-Beam 5.400" Connecting Rods
• 28oz Externally Balanced Front and Rear

Included items:

• Holley Sniper 2 EFI System - BPP550-510-3XX
• EFI Fuel Pump Kit - BPP5267
• Ignition Coil 45k Volt - BPP82021BK
• Pro-Series Ready Run Distributor - BPP3023BK
• V-Power Spark Plugs - BPP7938
• Spark Plug Wires
• Black Finned Valve Covers - BPP9237BLK
• 7 Quart Oil Pan

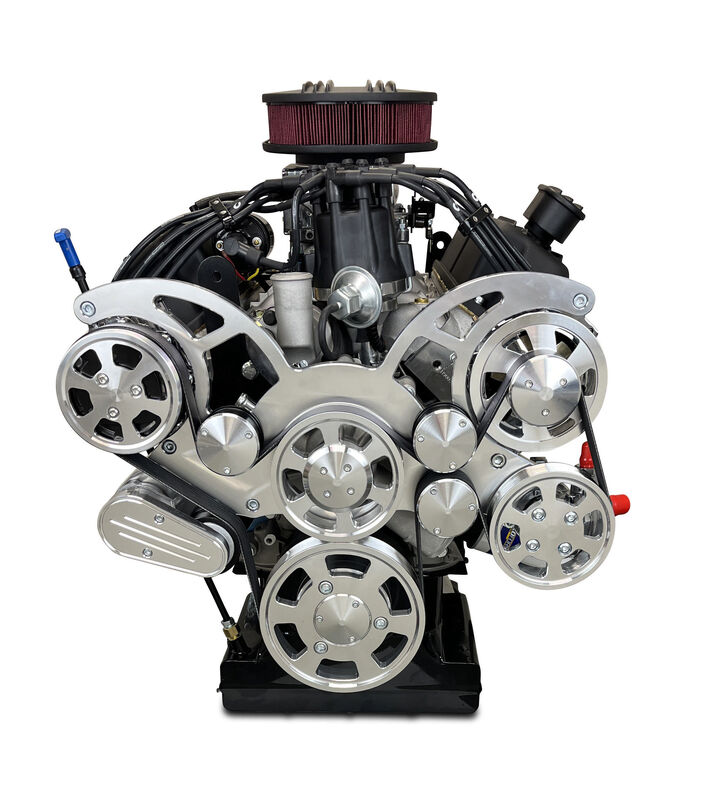

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission Built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• TPS Harness Included for Integration with Transmission Controller and EFI.
• 4 Speed, Overdrive Transmission w/Lockup
• Gear Ratios:
  • First: 2.84 :1
  • Second: 1.55 :1
  • Third: 1.00 :1
  • Overdrive: 0.70 :1
  • Reverse: 2.32 :1

Notes:

• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Package Ships assembled as pictured.
