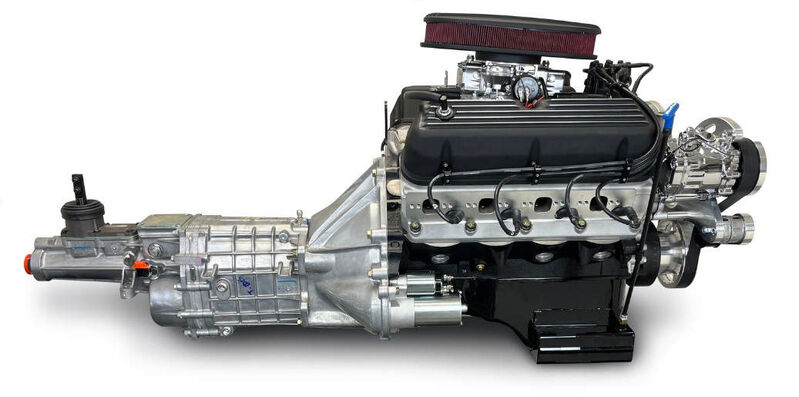

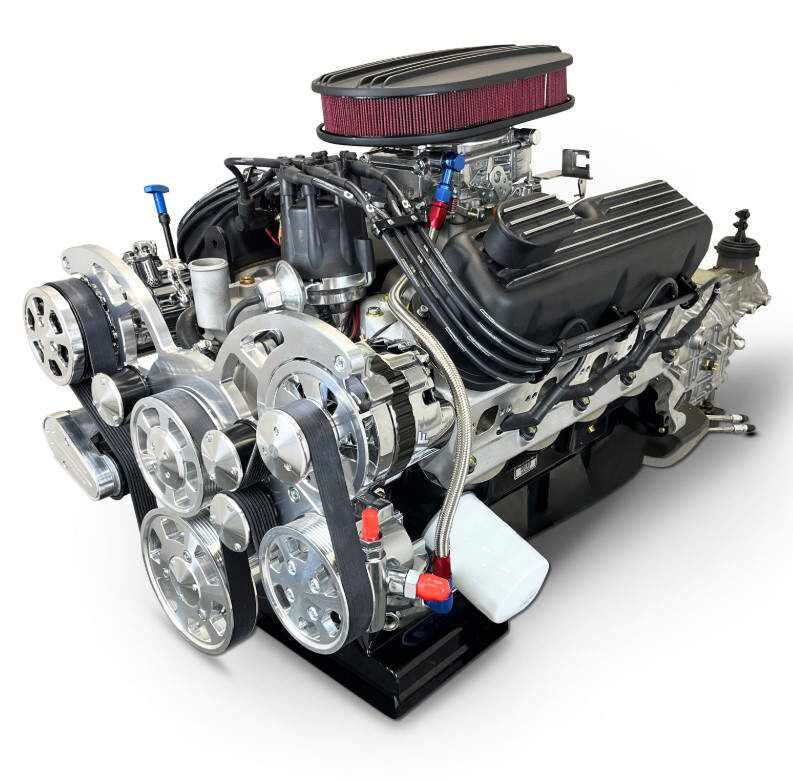

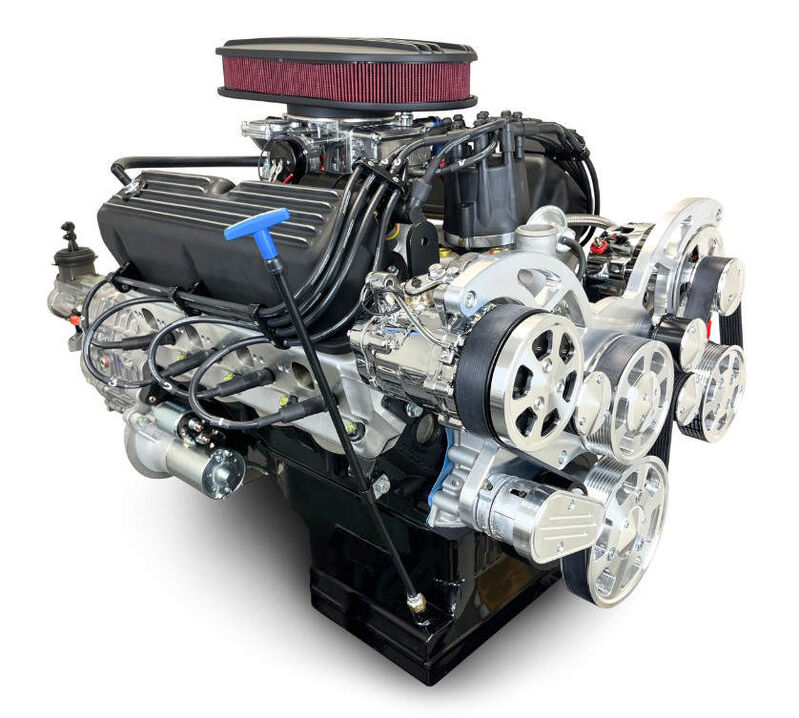

BluePrint Engines 302 c.i. Ford Compatible Builder Series - Standard Edition - Carbureted - TKX Manual Transmission - Polished Pulley Kit. (PART #BPE-B302KTKX)

Equipped with a Holley 600 CFM carburetor, it provides crisp throttle response, easy tuning, and the classic feel of a traditional carbureted setup. The performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer all work together to ensure smooth, consistent power throughout the RPM range. The polished front accessory drive gives the engine a clean, professional appearance, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide a complete front-end system.

This 302 package delivers the perfect blend of classic Ford V8 compatible performance and modern reliability — fully assembled, ready to drop in, and built to turn heads on the road or at the show.

Blocks:

• BluePrint Engines High-Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Rotating Assembly:

• Ford, Machined and Balanced by BluePrint Engines
• I-Beam 5.090” Connecting Rods
• 50oz External Balance

Included items:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA
• Fuel Pump - BPP6588
• Spark Plugs - BPP7938
• Ignition Coil 45k Volt - BPP82021BK
• Black Finned Valve Covers - BPP9237BLK
• Pro-Series Ready Run Distributor - BPP3023BK
• Painted Oil Pan 7qt
• Spark Plugs Wires
• Thermostat and Thermostat Housing

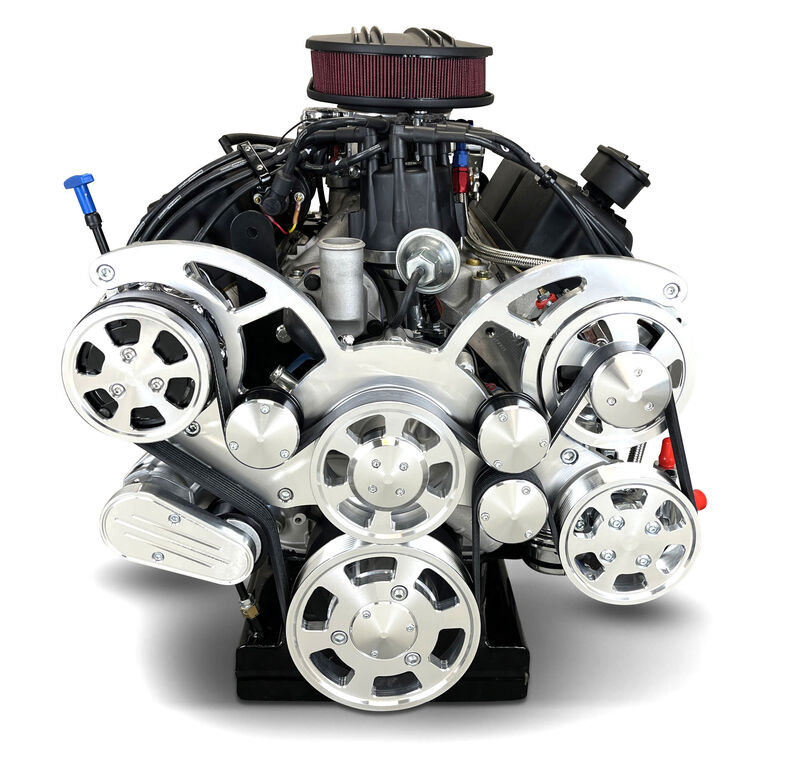

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Aluminum Bell Housing
• Flywheel
• Engine Guard
• Starter
• Gear Ratios:
  • First Gear Ratio: 2.87:1
  • Second Gear Ratio: 1.89:1
  • Third Gear Ratio: 1.28:1
  • Fourth Gear Ratio: 1.00:1
  • Fifth Gear Ratio: 0.81:1

Notes:

• Not for use in pollution-controlled vehicles.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• This engine is not compatible with factory fuel injection.
• PACKAGE SHIPS ASSEMBLED AS PICTURED.
