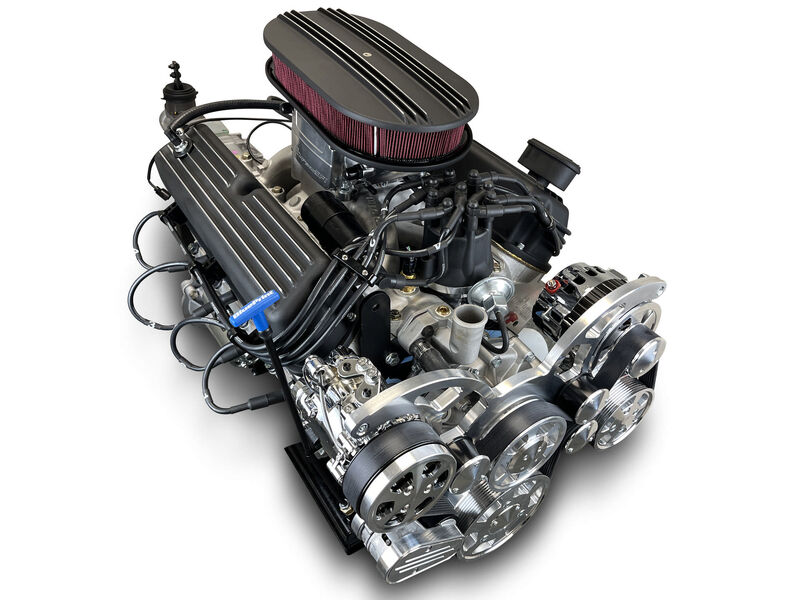

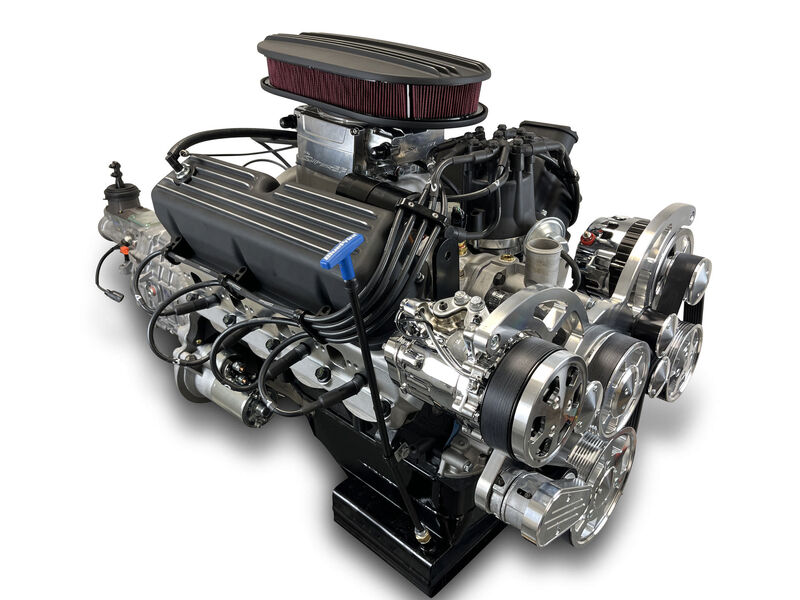

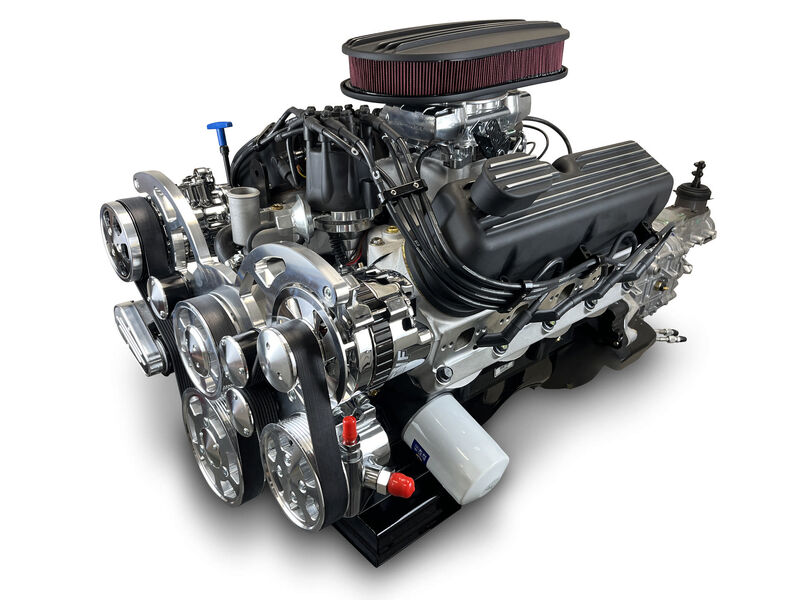

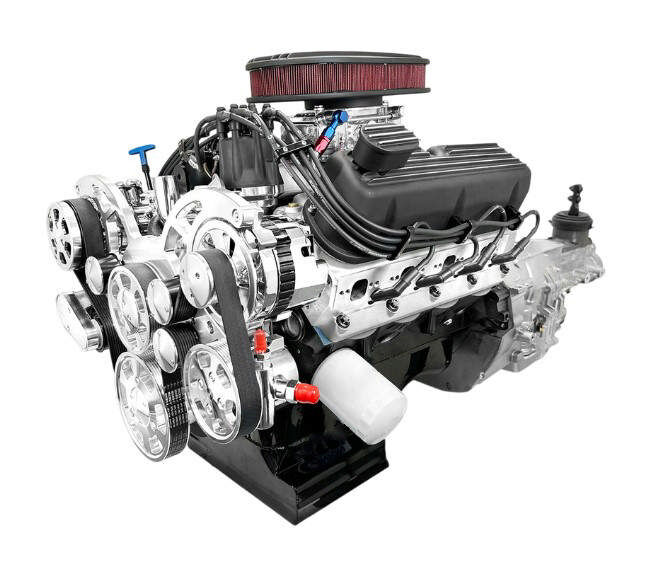

BluePrint Engines 302 c.i. Ford Compatible Builder Series - Standard Edition - Fuel Injected - TKX Manual Transmission - Polished Pulley Kit. (PART #BPE-B302FKTKX)

Featuring a Holley Sniper 2 EFI system and EFI fuel pump kit, it offers reliable starts, smooth throttle response, and easy tuning with no carb adjustments required. The combination of a performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer ensures strong, consistent power from idle to high RPM. The polished front accessory drive adds a clean, professional look under the hood, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide complete front-end function.

Blending proven Ford V8 compatible power with modern electronic fuel injection and a fully equipped accessory drive system that’s built to perform and look great doing it.

Blocks:

• BluePrint Engines High-Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Rotating Assembly:

• Ford, Machined and Balanced by BluePrint Engines
• I-Beam 5.090” Connecting Rods
• 50oz External Balance

Included items:

• Black Finned Ford Valve Covers - BPP9237BLK
• Pro-Series Ready Run Distributor - BPP3023BK
• Holley Sniper 2 EFI System -BPP550-510-3XX
• Ignition Coil 45k Volt - BPP82021BK
• 50oz Harmonic Balancer - BPP50
• EFI Fuel Pump Kit - BPP5267
• Intake Manifold - BPP302INT
• V-Power Spark Plugs - BPP7938
• Spark Plug Wires
• Painted Oil Pan
• Thermostat and Thermostat Housing

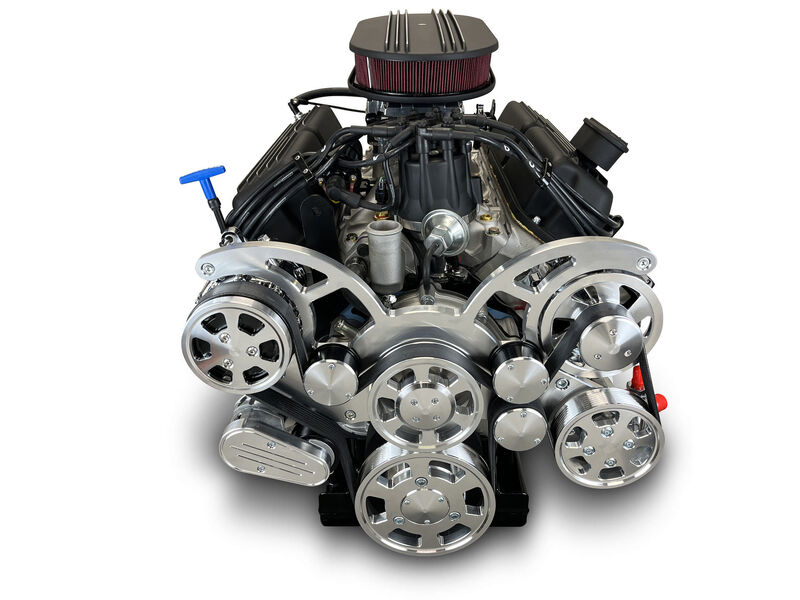

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

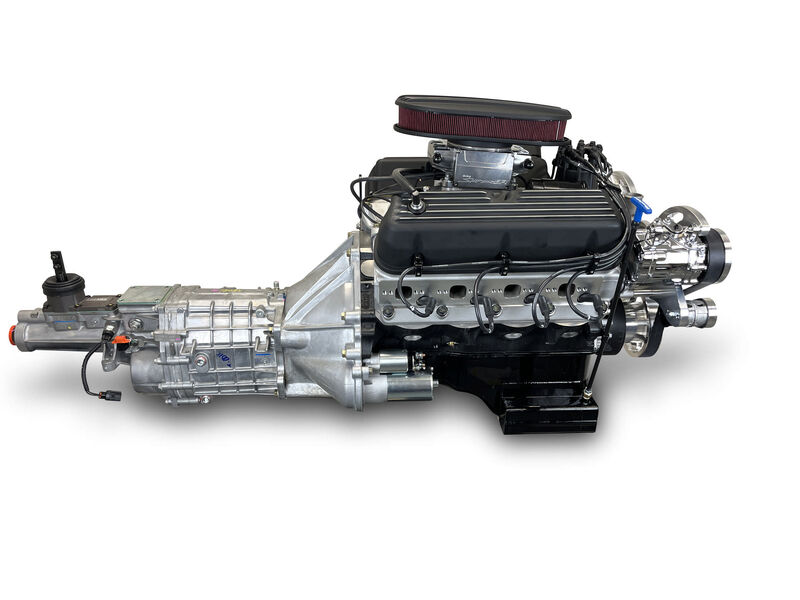

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Aluminum Bell Housing
• Flywheel
• Engine Guard
• Starter
  • First Gear Ratio: 2.87:1
  • Second Gear Ratio: 1.89:1
  • Third Gear Ratio: 1.28:1
  • Fourth Gear Ratio: 1.00:1
  • Fifth Gear Ratio: 0.81:1

Notes:

• Not for use in pollution-controlled vehicles
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• PACKAGE SHIPS ASSEMBLED AS PICTURED.
• A bronze distributor gear is NOT recommended on this engine
