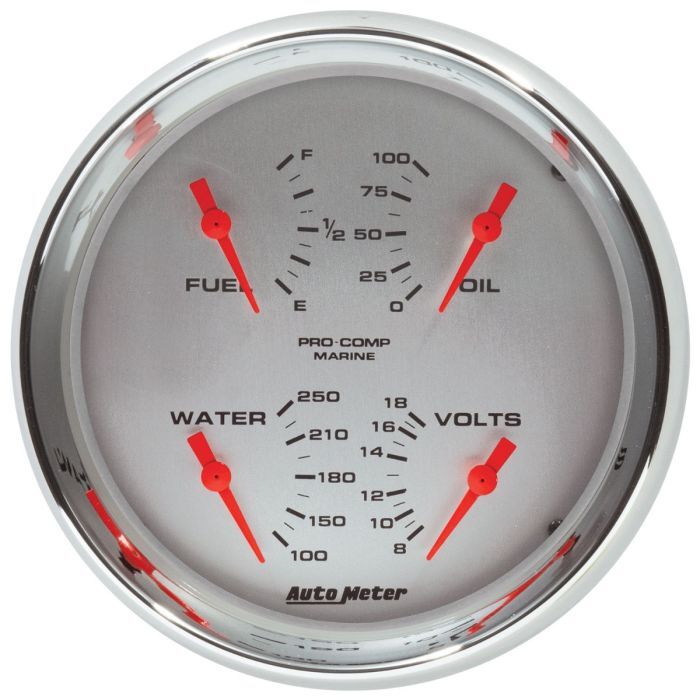

Autometer Gauge, Quad, 5", 240?e-33?f, Elec, Marine Chrome , Marine Chrome Ultra-Lite (SKU: AMT-200705-35)

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

• Highly polished chrome bezel
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• Traditional incandescent lighting illuminates around the perimeter of the dial
• 12 and 16 volt compatible, well-suited with nearly every electrical system
