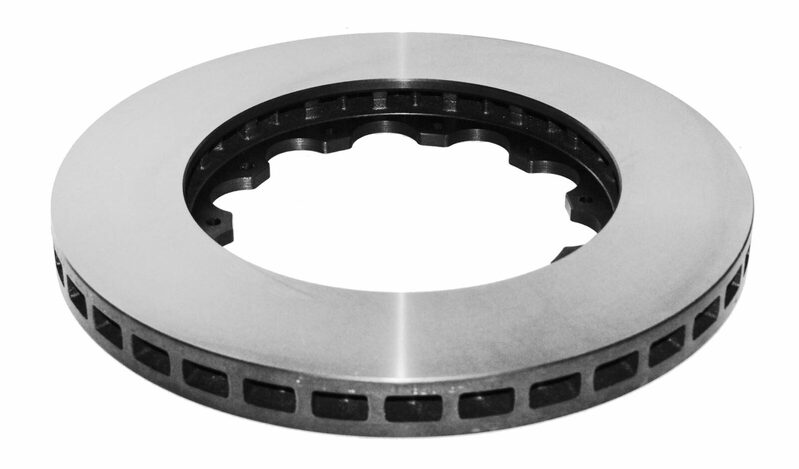

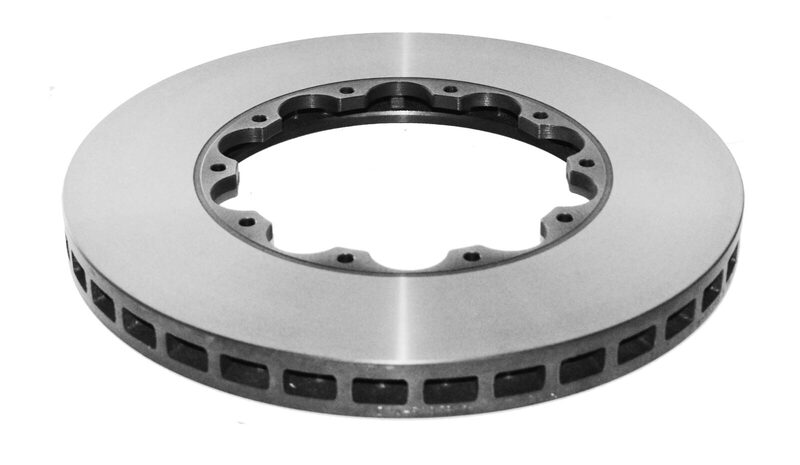

Sharing all the benefits of the 4000 SERIES, 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.

5000 SERIES shares all of the performance technology featured in the 4000 SERIES, with the added benefits of further weight reduction and improved heat management via the aluminium hats.

The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, whilst allowing for uniform radial disc expansion throughout the cast iron rings and reduced heat transfer from disc to hub via the aluminium hats.

We offer both complete assemblies for first time replacement (hats and flat discs bolted together) along with replacement hats and flat disc rotors. This allows drivers to re use their DBA 5000 SERIES hats with DBA replacement flat discs (rings).

We recommend 5000 SERIES for high performance street vehicles, track day and club racing, rally applications and show vehicles.

Disc Brakes Australia is an Australian manufacturer, designer and global marketer of aftermarket and OE-replacement brake rotors and drums, brake pads and shoes, brake cylinders, calipers, brake hoses and fluids, sensors and other ancillary items.


Product SubVariantHD
AxleFront & Rear
Vane DesignKP Vents
Outer diameter[mm]296
Height [mm]26
Brake Disc Thickness [mm]26
Minimum Thickness [mm]24.5
Centering Diameter [mm]146
Number of Holes10
Weight [kg]5.74
Pitch Circle Ø162
UomEach
Surface DesignPlain
