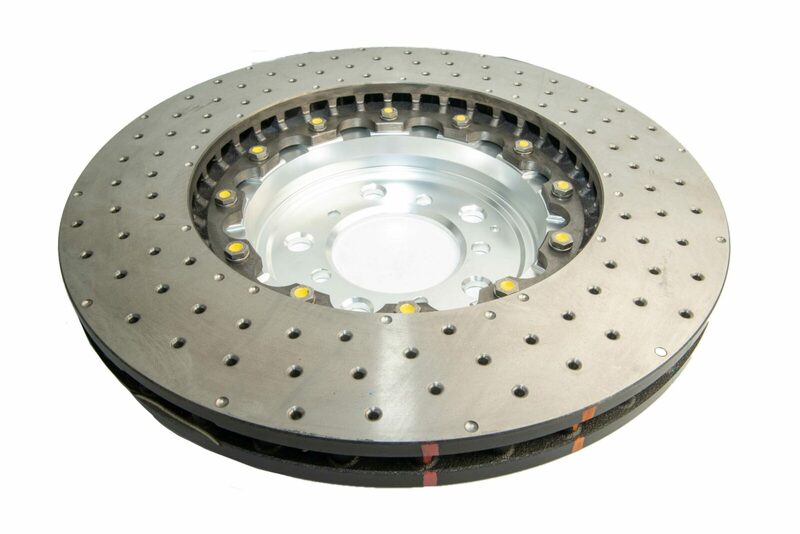

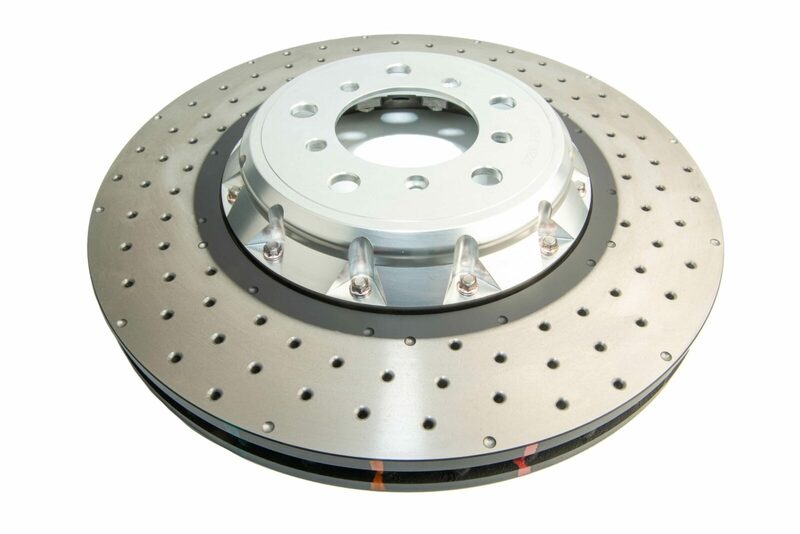

Sharing all the benefits of the 4000 SERIES, 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.

5000 SERIES shares all of the performance technology featured in the 4000 SERIES, with the added benefits of further weight reduction and improved heat management via the aluminium hats.

The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, whilst allowing for uniform radial disc expansion throughout the cast iron rings and reduced heat transfer from disc to hub via the aluminium hats.

We offer both complete assemblies for first time replacement (hats and flat discs bolted together) along with replacement hats and flat disc rotors. This allows drivers to re use their DBA 5000 SERIES hats with DBA replacement flat discs (rings).

We recommend 5000 SERIES for high performance street vehicles, track day and club racing, rally applications and show vehicles.


Product SubVariantXD
AxleFront
Vane DesignKP Vents
Outer diameter[mm]360
Height [mm]30.5
Brake Disc Thickness [mm]30.5
Minimum Thickness [mm]28.4
Centering Diameter [mm]79
Number of Holes5
Weight [kg]10.38
Pitch Circle Ø120
UomEach
Surface DesignCross Drilled/ Dimpled

More From This Category

DBA Disc Rotor, X Gold Drilled/Slotted, 330mm Dia., 85.6mm Height, 29mm Thick, 118.2 Centre Hole, For Hummer R, Each

DBA Disc Rotor, X Gold Drilled/Slotted, 330mm Dia., 85.6mm Height, 29mm Thick, 118.2 Centre Hole, For Hummer R, Each

$301.65

Wilwood Rotor, 0.81 Width, 14 in. Dia, 12 x 8.75 in. Bolt Circle, Iron, 36 V, SRP Drilled & Slotted, Black Electro Coat, R/H, Each

Wilwood Rotor, 0.81 Width, 14 in. Dia, 12 x 8.75 in. Bolt Circle, Iron, 36 V, SRP Drilled & Slotted, Black Electro Coat, R/H, Each

$600.87

DBA Front 5000 Series XD Brake Ring, 356mm, For Toyota Yaris GR GXPA16R 1.7L Turbo 08/20 With NAS Nuts, Kit

DBA Front 5000 Series XD Brake Ring, 356mm, For Toyota Yaris GR GXPA16R 1.7L Turbo 08/20 With NAS Nuts, Kit

$678.70

DBA Rear Street Series T2 Brake Rotor, 299mm, For Porsche Boxster/Cayman 987 981 982 2.0 2.7 2.9 3.4 04-16, Kit

DBA Rear Street Series T2 Brake Rotor, 299mm, For Porsche Boxster/Cayman 987 981 982 2.0 2.7 2.9 3.4 04-16, Kit

$234.00

DBA Front 5000 Series T3 Brake Rotor, 335mm, For Mini S R56 JCW, Kit

DBA Front 5000 Series T3 Brake Rotor, 335mm, For Mini S R56 JCW, Kit

$917.70

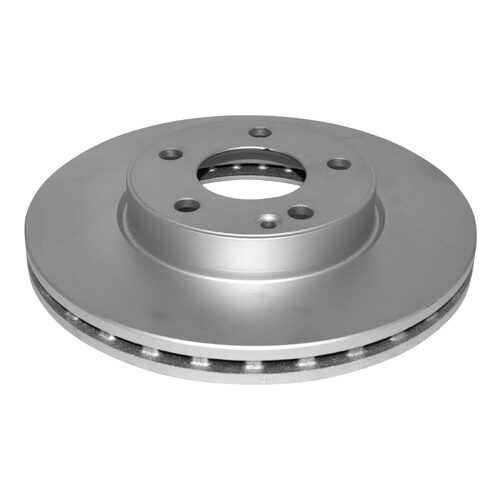

DBA Front Street Series En-Shield Brake Rotor, 280mm, For Mercedes-Benz A180 W176 B180 W246 242 11-On, Kit
