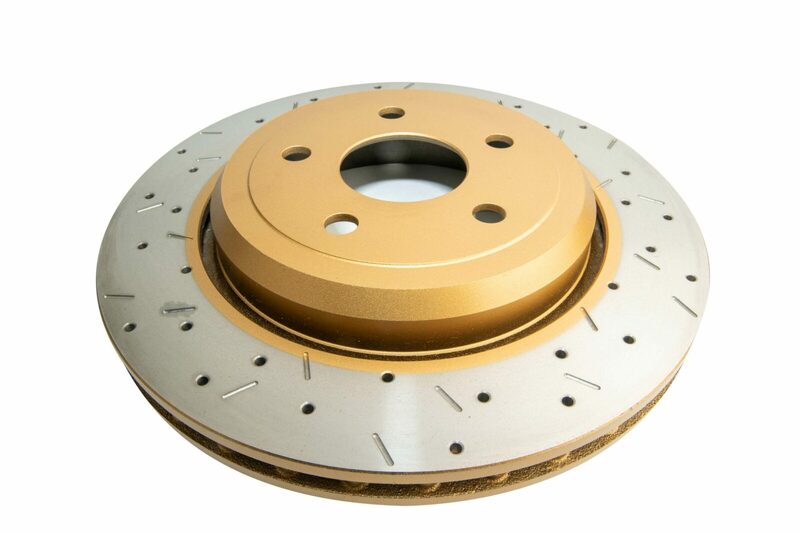

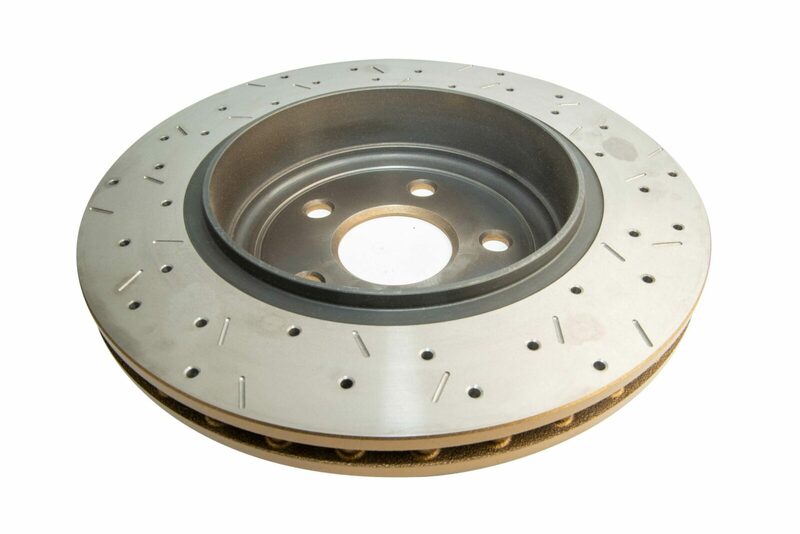

4000 SERIES disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBAs metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBAs Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).


Product SubVariantXS
AxleRear
Vane DesignKP Vents
Outer diameter[mm]350
Height [mm]64
Brake Disc Thickness [mm]28
Minimum Thickness [mm]26
Centering Diameter [mm]72
Number of Holes5
Weight [kg]11.24
Pitch Circle Ø127
UomEach
Surface DesignCross Drilled/ Slotted
