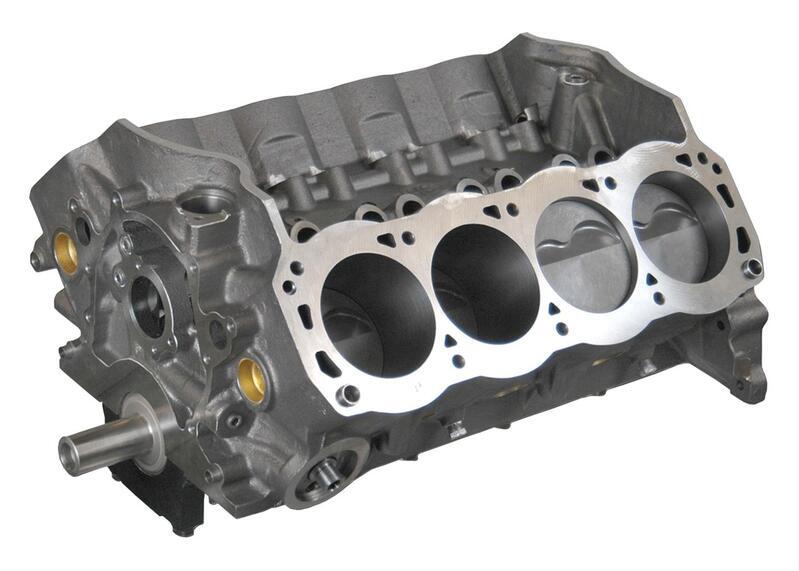

Dart Small Block Ford 347 C.I.D. Short Block Engines INTERNAL BALANCE

Simplify your engine power build by starting with Dart small block Ford 347 c.i.d. short block engines. These dyno-tested short block combinations start with their precision-machined SHP Ford block. To these reliable blocks, they add quality components--a high-quality cast steel crankshaft, forged 4340 I-beam connecting rods, and forged pistons--to help you gain the performance that you want at a price that you can afford. When you want more than stock but don't know where to begin, Dart can help with their quality, high performance small block Ford 347 c.i.d. short block engines.

SPECIFICATIONS:

* 347 cu. in. short block
* Internal Balanced
* Special High Performance Dart Block (SHP)
* 3.400 in. Bore x 4.000 in. Stroke
* Plate Honed Cylinders
* Forged Steel Crankshaft
* Forged 4340 H-Beam Rods - 3/8" ARP Cap Screws
* Forged Flat Top Pistons w/ Full Floating Pin
* MAHLE Rings
* Clevite Bearings
* Coated Cam Bearings
* Compression: 10.0 w/58cc, 9.5 w/62cc heads
