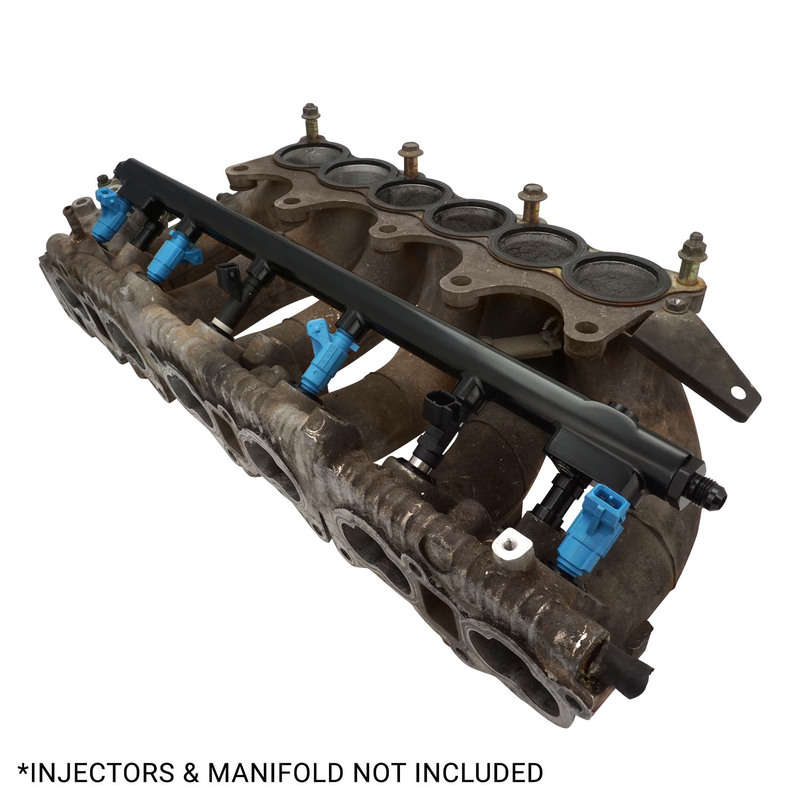

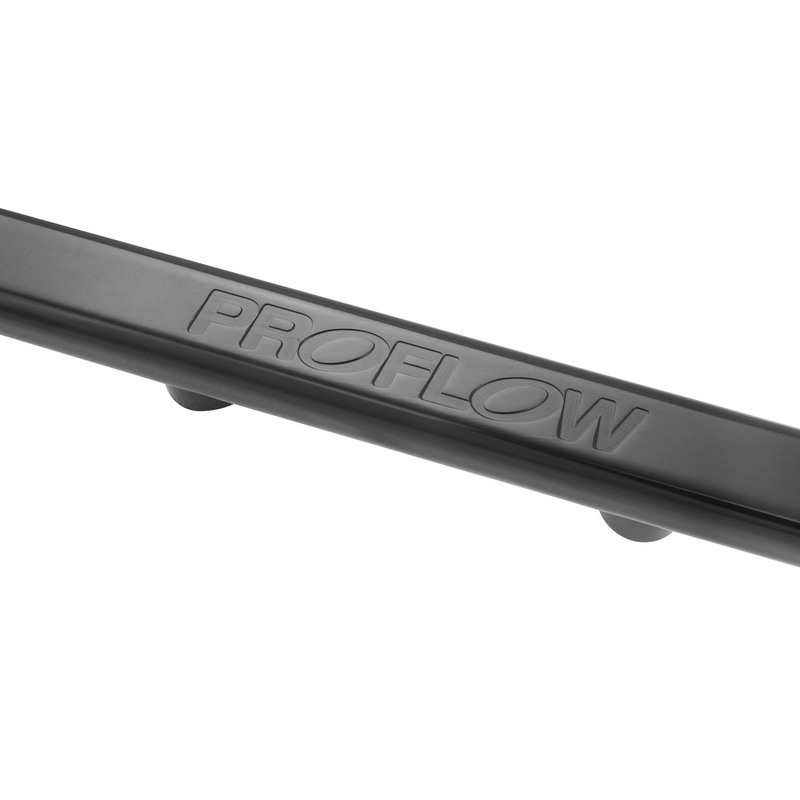

Proflow's billet fuel rail kits fit like stock, but deliver the increased fuel volume that your car needs for maximum performance. The 17.5mm bore rails are precision CNC-machined from high-strength AL6061-T6 aluminium with a polished-anodised finish, allowing them to be used wth all popular alcohol blends such as E85. The rail is tapped to accept AN8 ORB fittings, with both AN6 and AN8 adaptors supplied to accomodate various fuel system setups. An AN6 ORB auxiliary port is also tapped into the top of the rail which can be used as either an inlet/outlet or return.

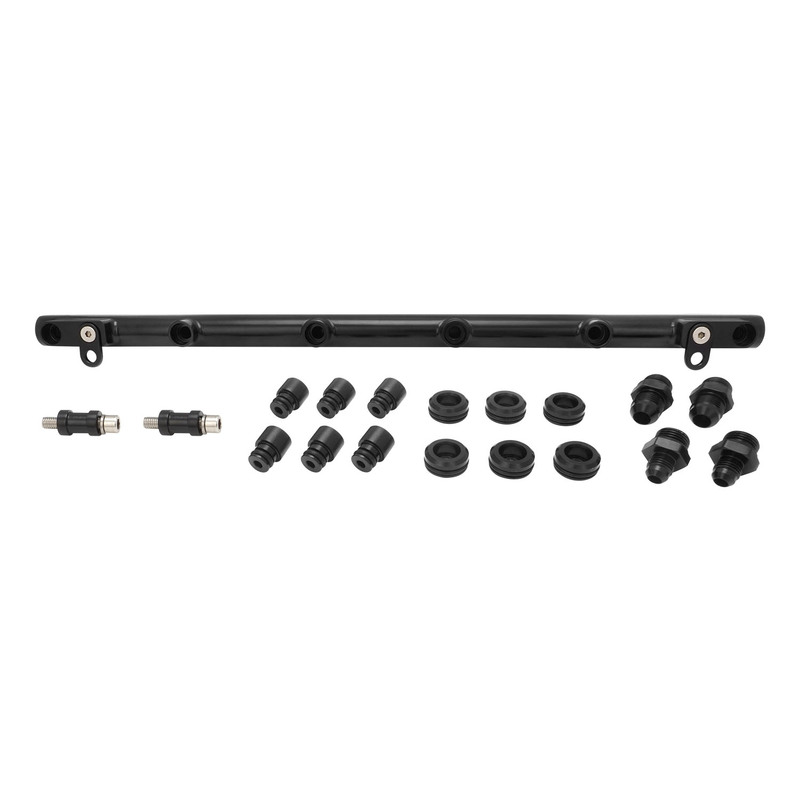

Includes:

  • 6x injector seats for 14mm top feed injectors
  • 6x Injector adaptors to suit compact length injectors
  • 2x billet mounting brackets and spacers
  • 2x AN6 and AN8 ORB adaptors
  • 1x AN6 ORB Plug
  • Stainless steel hardware

Note: Suits a compact (33.6mm) and 3/4 length injector (48.65mm).
